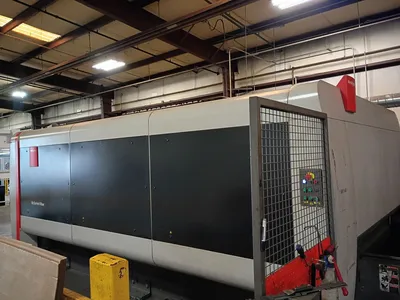

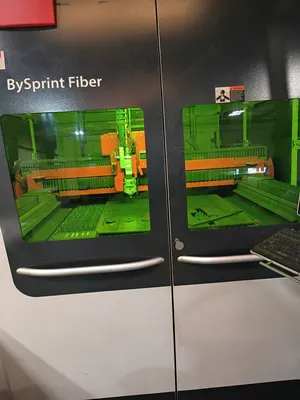

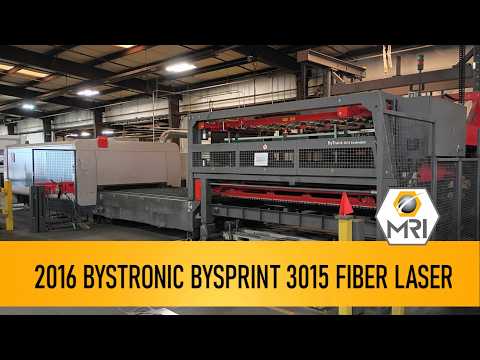

BYSTRONIC BYSPRINT 3015 FIBER, 6,000-WATT FIBER LASER, NEW: 2016
$249,500.00 USD
ConditionUsed
1 available
BYSTRONIC BYSPRINT 3015 FIBER, 6,000-WATT FIBER LASER, NEW: 2016
BYSTRONIC CNC CONTROL
40 POSITION NOZZLE CHANGER

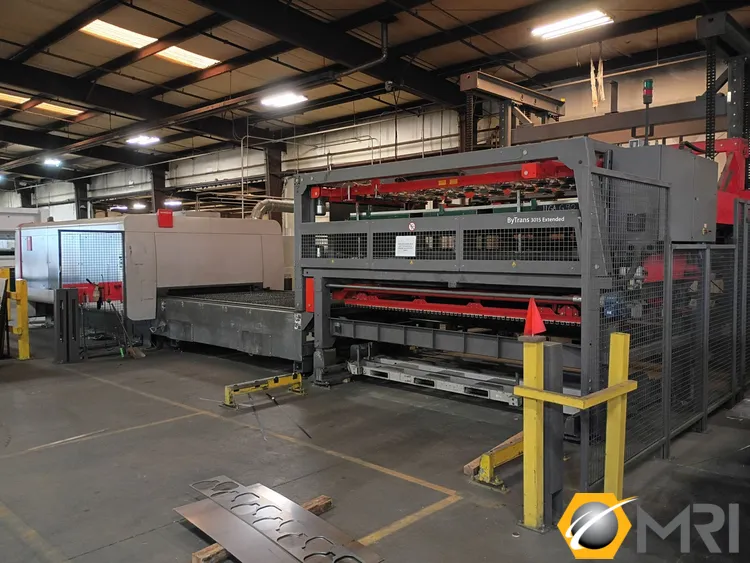

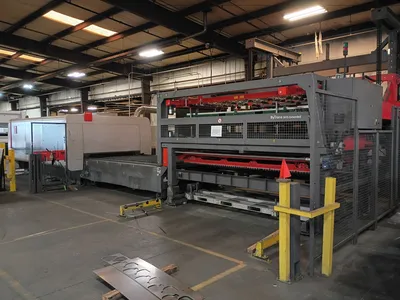

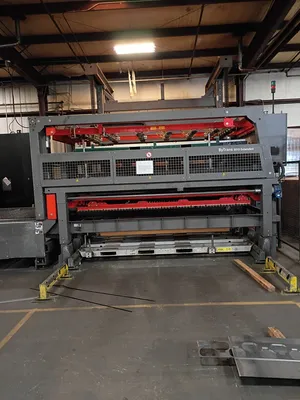

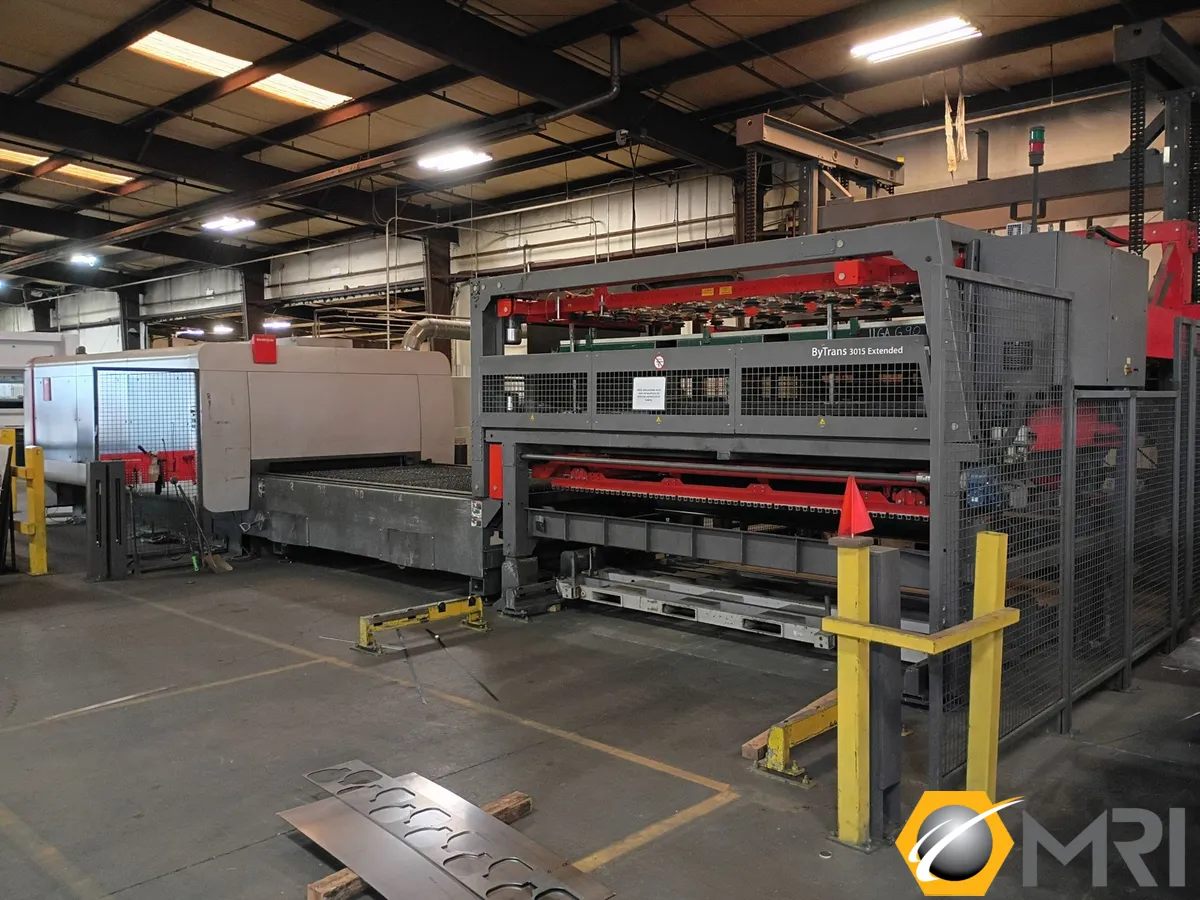

BYTRANS EXTENDED LOAD/UNLOAD SYSTEM
2) MATERIAL HANDLING CARTS
8 SHELF MATERIAL STORAGE SYSTEM
CHILLER

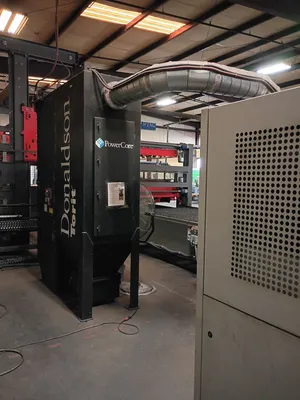

DUST COLECTOR
NEW HEAD INSTALLED IN 2024
MACHINE MANUFACTURED IN SWITZERLAND
HOURS:
- LASER ON: 15,995
NEW CUTTING HEAD
WAVELENGTH: FIBER
MAXIMUM OUTPUT: 6,000 WATTS

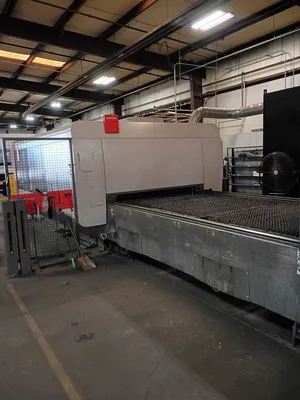

TABLE SIZE: 5' X 10'
CUTTING AREA:
- X-AXIS: 120"'
- Y-AXIS: 60"
- Z-AXIS: 2.75"
MAXIMUM POSITIONING PARALLEL AXIS X, Y: 3,936 IPM
MAXIMUM SIMULTANEOUS POSITIONING SPEED: 5,508 IPM
POSITIONING ACCURACY PA*: (+/-) 0.0039"
REPEATABILITY PS*: (+/-) 0.002"
CONTROL RANGE: 400 - 6,000 WATTS
MAXIMUM CUTTING THICKNESS:
- MILD STEEL: 0.787"
- STAINLESS STEEL: 0.59"
- ALUMINUM: 0.59"
- BRASS: 0.315"
- COPPER: 0.315"
MAXIMUM WORKPIECE WEIGHT: 1,962 LBS
MACHINE WEIGHT: 26,455 LBS
