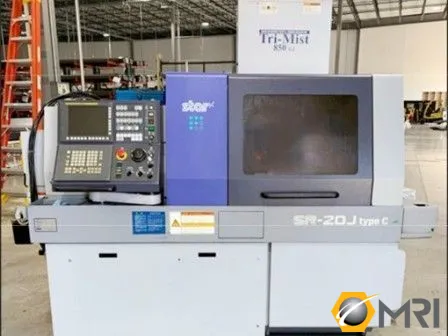

2018 Star SR-20J Type C CNC Swiss Lathe | AB 7611942
ConditionUsed
1 available
Synch Rotary Magic

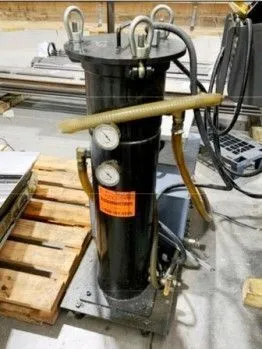

High Pressure Pump

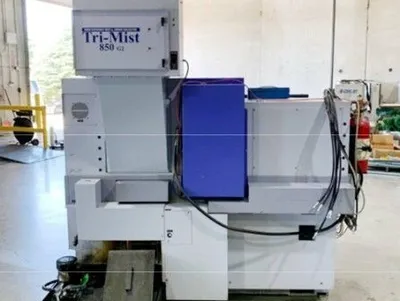

Mist Buster

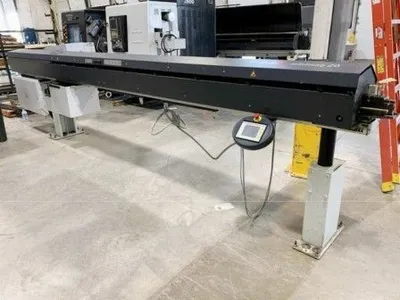

FMB MINIMAG 20 Bar feed, Full 12'

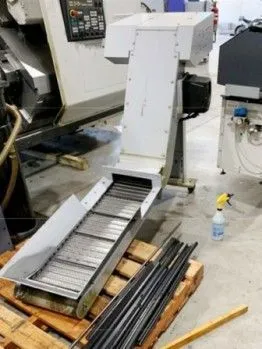

Turbo Chip Conveyor
8" Max Headstock Stroke
(4) Front Tools
(4) Rear Tools
6-Station Tool Holder
Drive System for Power-Driven Attachment
3-Spindle Cross-Milling Unit
4-Spindle Sleeve Holder
2-Spindle Sleeve Holder
Back 4-Spindle Unit
C-Axis Control
35m/min Rapid Feed Rate (X, Y, Z, XB, ZB)
Maximum Cutting Diameter 20 mm
Maximum Machining Length 32"
Main Spindle RPM 10,000 RPM
Number of Tool Stations 6
Milling Spindle RPM 8,000 RPM
2nd Spindle RPM 8,000 RPM
Control: Fanuc 31i-B
Dimensions: 88.5" × 47.2" × 70"
Weight: 5,000 lbs
