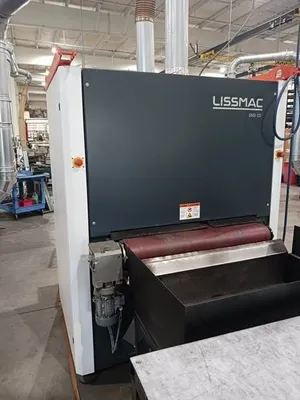

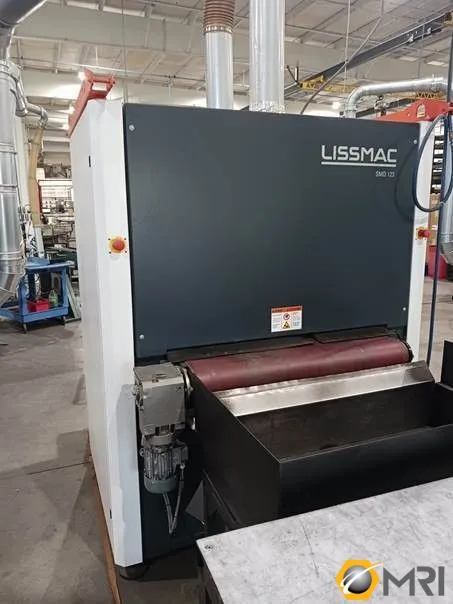

LISSMAC SMD 123 DEBURRING AND EDGE ROUNDING MACHINE, NEW: 2021
ConditionUsed
1 available
LISSMAC SMD 123 DEBURRING AND EDGE ROUNDING MACHINE, NEW: 2021
| LNS Hydroexpress 320 Barfeeder |
FURTHER INFORMATION:
- VERSATILE ENTRY-LEVEL MACHINE
- REMOVAL OF BURRS (LASER/PUNCHING/PLASMA-CUTTING)

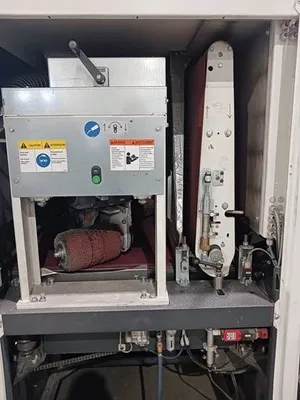

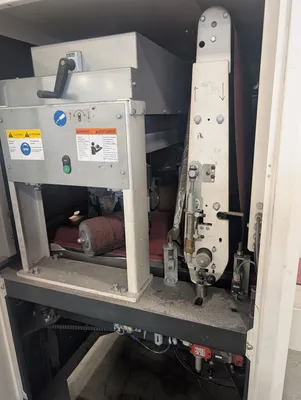

- TWO ROATARY WHEELS FOR CONSISTENT EDGE ROUNDING AND UNIFORM
SURFACE FINISHING
- SURFACE POLISH WITHOUT COMPLEX SET-UP WORK
- SUITABLE FOR STEEL, STAINLESS STEEL, AND ALUMINUM
- SUITABLE FOR PARTS WITH UP-FORMS

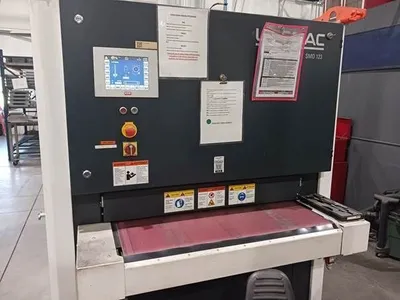

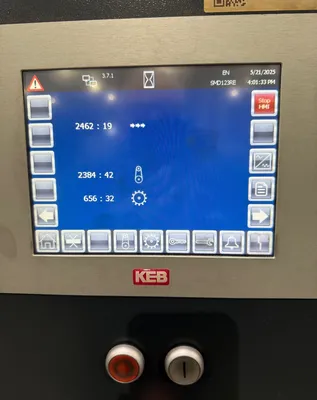

- TOUCH PANEL FOR INTUITIVE OPERATION
- INDIVIDUAL AGGREGATES CAN BE OPERATED INDEPENDENTLY OF EACH OTHER
- STEPLESS GRINDING BELT SPEED
- QUICK AND EASY TOOL CHANGE
- SPACE EFFICIENT FOOTPRINT
MAX. WORKING WIDTH: 37.40”
SANDING BELT WIDTH: 38.20"
SANDING BELT LENGTH: 74.8"
NUMBER OF HEADS: 2 (1 SANDING AND 1 BRUSHING)
MAX. MATERIAL THICKNESS: 0.04” - 1.97”
VARIABLE FEED RATE: 0.5 – 15.72 IPM
ADJUSTMENT OF MATERIAL THICKNESS: ELECTRIC
ADJUSTMENT OF TOOLS: MANUAL
VOLTAGE: 480 V / 60 HZ
LOAD: 300 KG/RM
NETWORK STRUCTURE: 3~ PEN / 3~ PE+N
TOTAL CURRENT CONSUMPTION: 42.7 A
TOTAL POWER: 20.3 KW
INSULATION CLASS: IP 42
APPROX. WEIGHT: 3,858
APPROX. DIMENSIONS (W/D/H) 63”(W) x /71”(D) x 77”(H)
