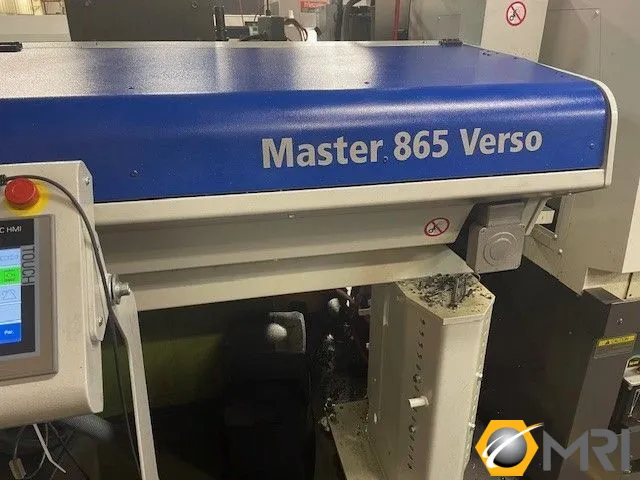

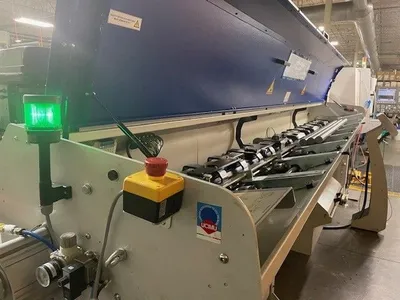

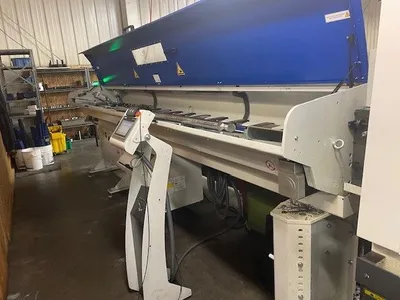

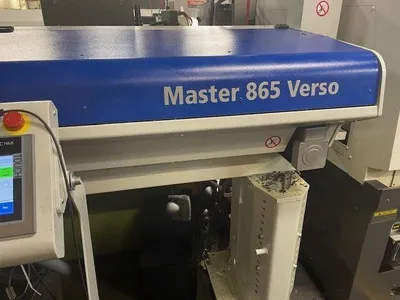

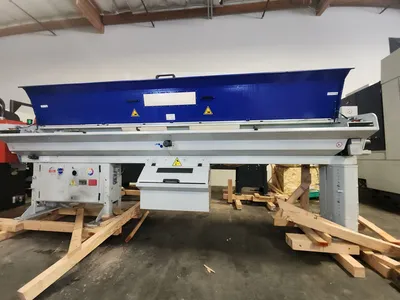

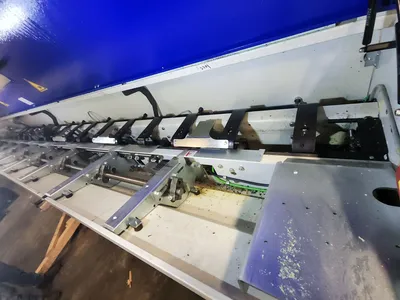

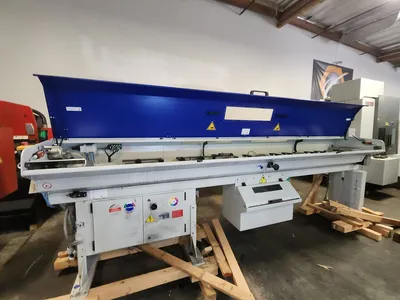

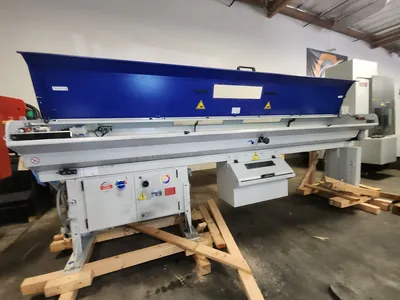

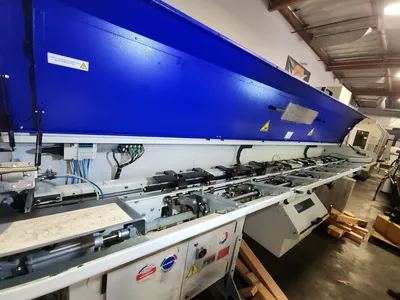

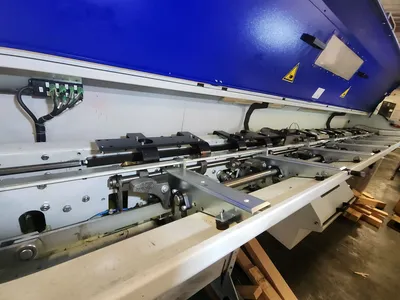

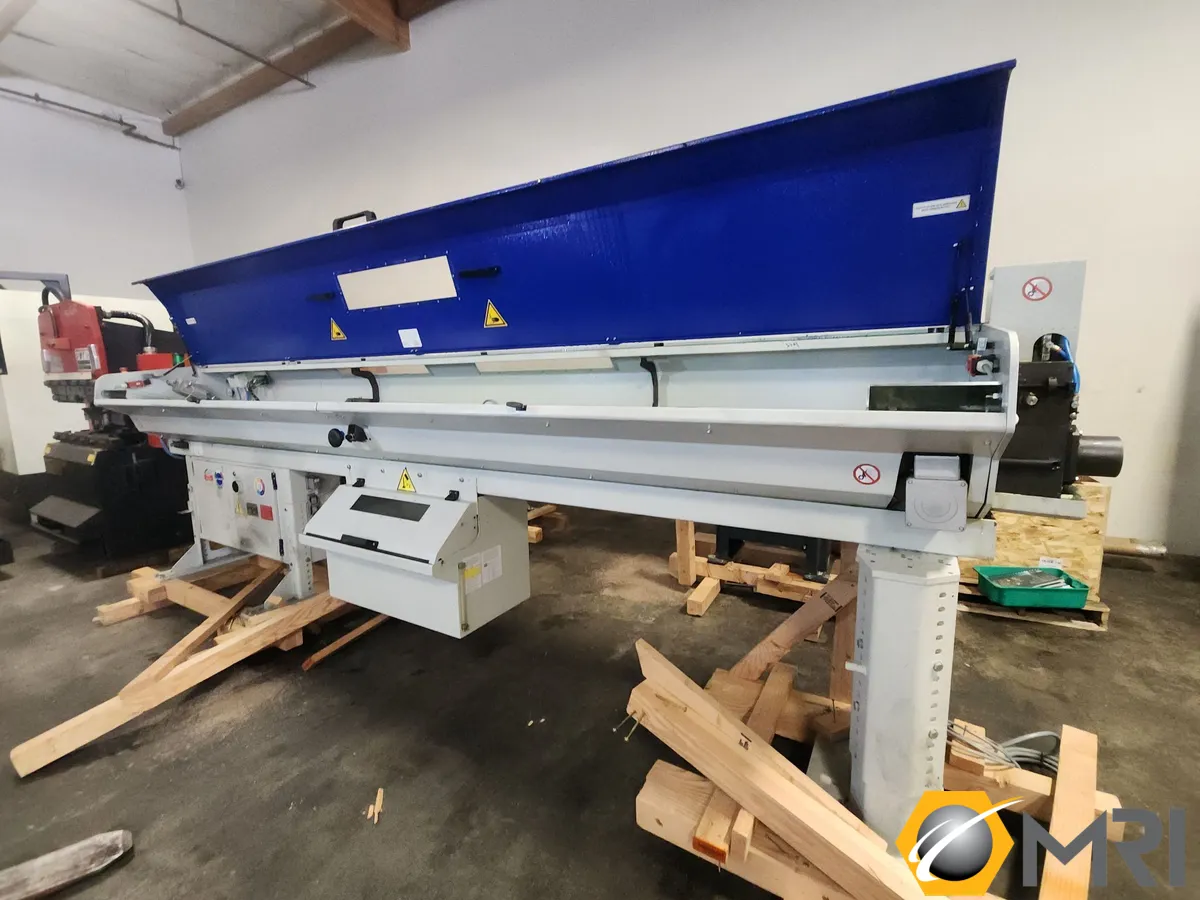

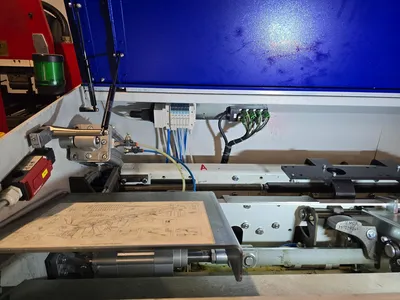

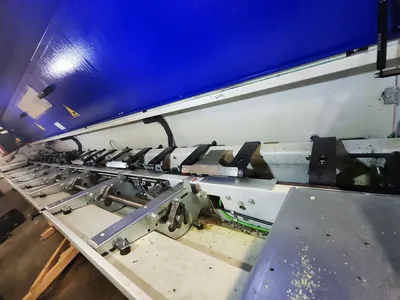

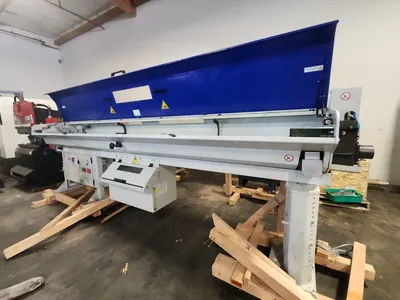

Iemca Master 865 MP 38L Versa Magazine Bar Feed, Full 12' cap, New: 2020 | AB 7611952

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Bar Diameter Capacity: .31" - 2.5"
Bar Length: 31" - 169"
Bar Weight: 264 lbs

Technical Specs
Round Bars 8 - 65 mm (5/16 - 2 5/8")
Hexagonal Bars 8 - 55 mm (5/16 - 2 3/16")
Square Bars 8 - 45 mm (5/16 - 1 3/4")
Bar Length 1,000 - 4,300 mm (3'3" - 14'1")
Remnant Length 110 - 400 mm (4.33 - 15.75")
Bar Weight Max 120 kg (265 lbs)
Bar Changeover Time 45 sec (for bar length of 3,200 mm)
Feed Rate 500 mm/sec (1,180 in/min)
Return Speed 1,000 mm/sec (2,360 in/min)
Bar Feed Weight 12' version: 1,440 kg (3,180 lbs)
Compressed Air 6 - 8 bar (87 - 116 psi)
Installed Power 3.75 kW
MP Magazine Available Single Rack 320 mm (12.6")
UP Magazine Available NO
20 feet version: UP (Lower Single Rack)
600 mm (23.62")
900 mm (35.43) or
1,200 mm (47.24") opt avail
OAB/F Magazine Available NO

Shipping Dimensions: 193" x 32" x 59" 3,000 lbs
