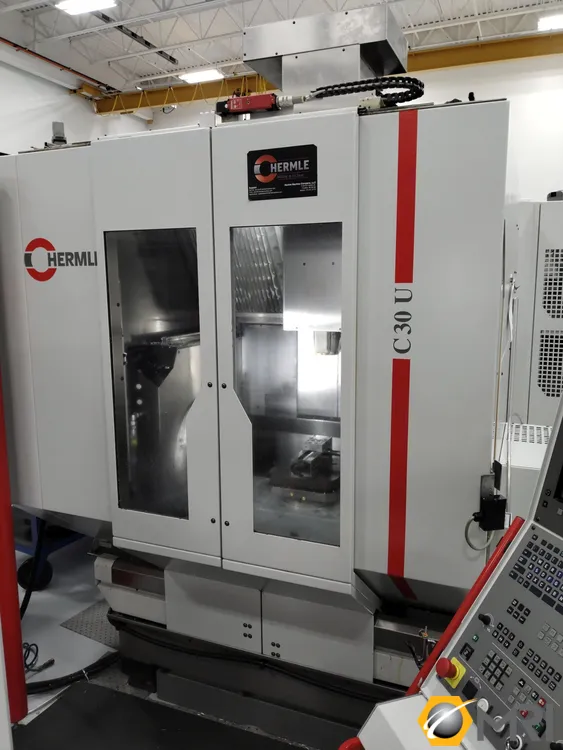

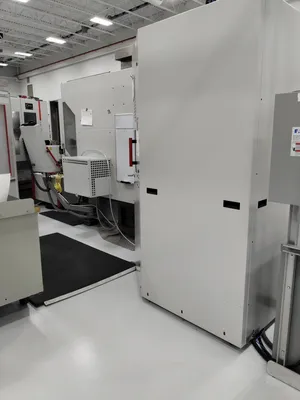

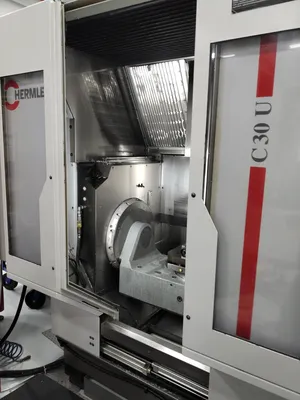

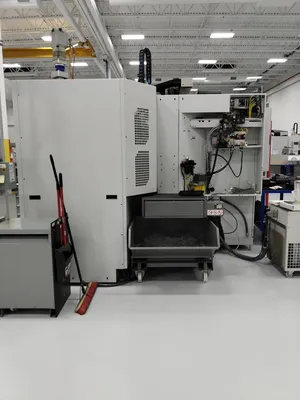

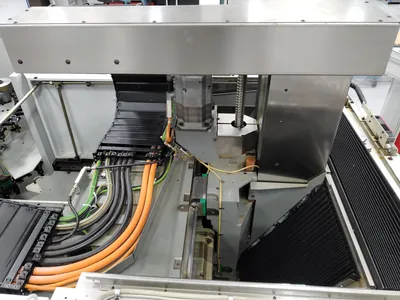

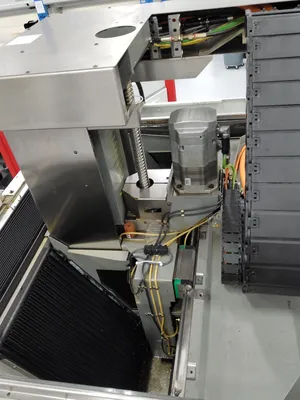

2005 HERMLE C30U VERTICAL MACHINING CENTER | JS 7611956

Number of axis 5-Axis

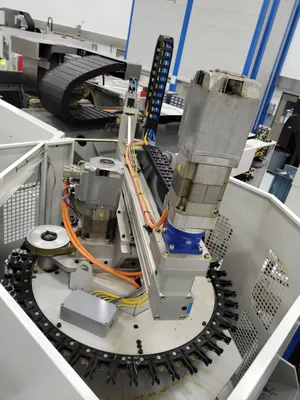

Tool changer 32 tool pockets plus additional
magazine 43 pockets=75 ATC total

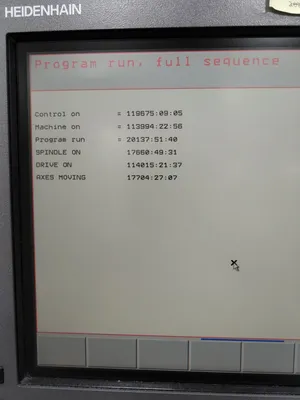

Control HH iTNC 530
Spindle 18,000 rpm
Spindle taper HSK-A63
X axis 25.6" (650 mm)
A axis +/- 115 degrees
Y axis 23.6" (600 mm)
Z axis 19.7" (500 mm)
C axis 360 x 0.001 degrees
X-axis 25.6" (650 mm)
Y-axis 23.6" (600 mm)
Z-axis 19.7" (500 mm)
Spindle speed range 20-18,000 RPM
Spindle output 20 HP (15 kW)
Spindle torque 96 LB/ft (130 Nm)
Spindle diameter at the front bearings 2.76" (70 mm)

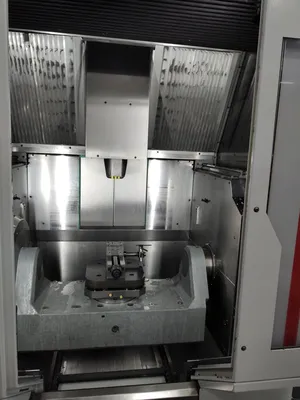

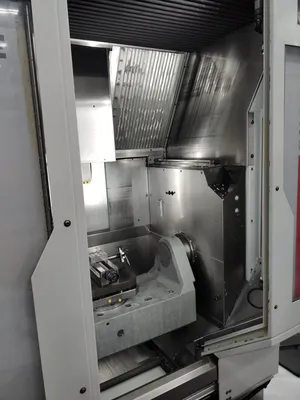

Nc swivelling rotary table diameter 11.02" (280 mm)
Load capacity of nc swivelling rotary table 661 LBS (300 kg)
Table c-axis rotation range 360 x 0.001 degrees (Full 4th axis)
Table a-axis swivel range 230 degrees +/- 115 degrees (Full 5th axis)
Speed of the tilting a-axis (dynamic) 55 RPM
Speed of the rotary c-axis 40 RPM

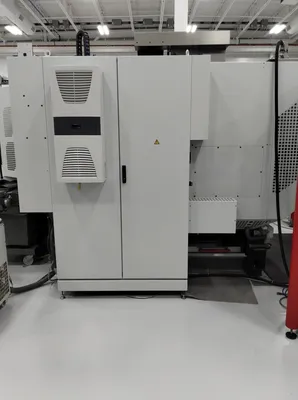

Power input 400V/60 Hz
Power required 43 KVA
Air required 87 PSI (6 bar)
