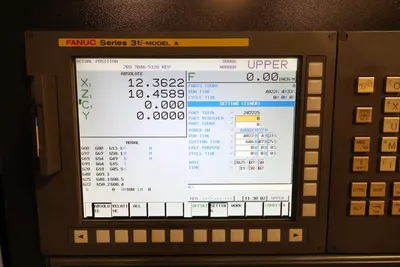

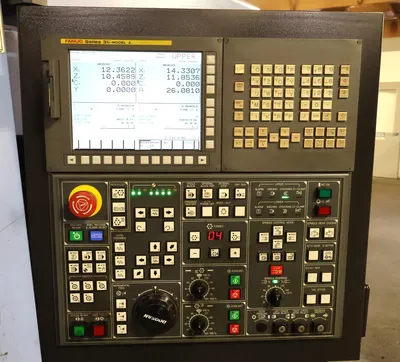

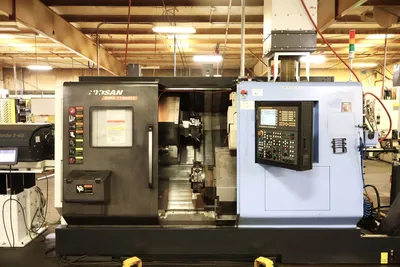

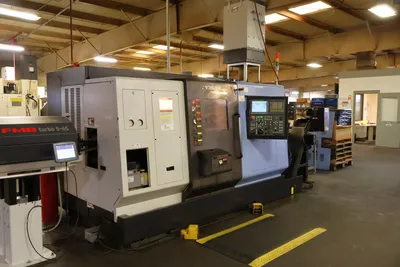

FANUC 31i-MODEL A CNC CONTROL
(7) live tools included
LNS CHIPBLASTER J2-60, 1000 PSI, DUAL OUTLET (NEW: 2021)

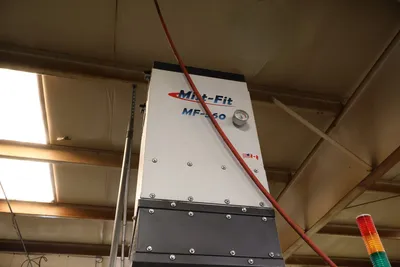

MIST-FIT 560 MIST COLLECTOR (NEW: 2021)

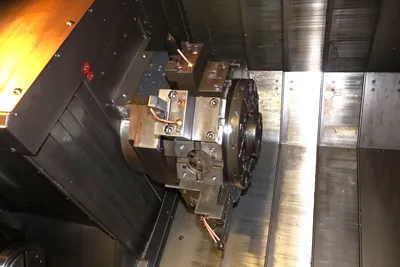

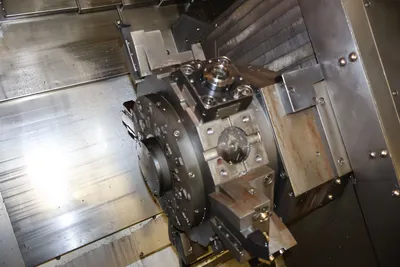

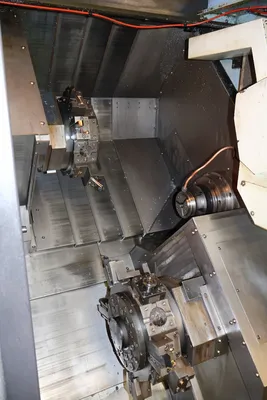

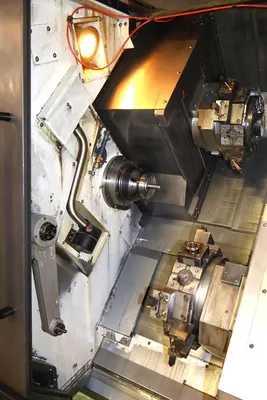

UPPER & LOWER TURRETS
SUB SPINDLE
Y-AXIS (UPPER)
LIVE MILLING

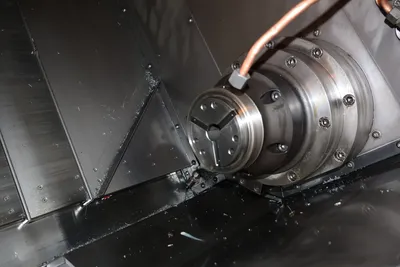

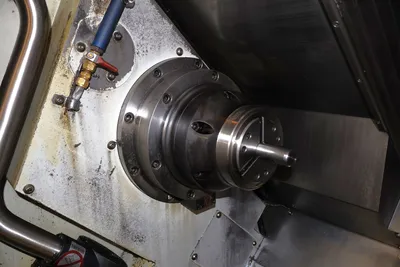

COLLET CHUCKS ON MAIN & SUB SPINDLE
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR (RIGHT SIDE)
PARTS EJECTOR
LNS TURBO HB CHIP CONVEYOR
MISC LIVE AND STATIONARY TOOL HOLDERS
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
REPLACEMENT COST FOR ABOVE EQUIPPED SYSTEM IF PURCHASED NEW: $360,000
| Swing | 9.1" | 231.14 mm |
| Machining Length | 27.38" | 695.45 mm |
| Bar Capacity | 2.625" | 66.675 mm |
| Distance Between Centers | 38.5" | 977.9 mm |
| Turning Diameter | 9" | 228.6 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Sub Spindle | Yes | Yes |
SWING OVER SADDLE 9.1"
MAX CUTTING DIAMETER 9"
MAX CUTTING LENGTH 27.38"
DISTANCE BETWEEN CENTERS 38.5"
X-AXIS TRAVEL 6.5"
Y-AXIS Yes
Y-AXIS TRAVEL 3.93" (+/- 1.96")
Z-AXIS TRAVEL 27.5"
C-AXIS INDEXING FULL C-AXIS (MAIN & SUB)
BAR CAPACITY 2.625"
SPINDLE BORE 2.99"
SPINDLE NOSE A2-6
SPINDLE MOTOR 30 HP
SPINDLE SPEED 5,000 RPM
RAPID TRAVERSE RATE - X-AXIS 787 in/min.
RAPID TRAVERSE RATE - Y-AXIS 295.3 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,575 in/min.
SUB SPINDLE Yes
SUB SPINDLE - BAR CAPACITY 2.6"
SUB SPINDLE - SPINDLE BORE 2.9"
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 30.3 HP
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 30.1"
TURRET CAPACITY 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 7.5 HP
TURRET 2 CAPACITY 12
TURRET 2 TYPE BMT55
TURRET 2 - X-AXIS TRAVEL 7.48"
TURRET 2 - Z-AXIS TRAVEL 28.34"
