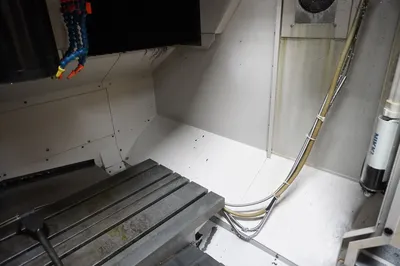

2013 OKUMA GENOS M560V VERTICAL MACHINING CENTER | AG 7611964
ConditionUsed
1 available
CHIP CONVEYER

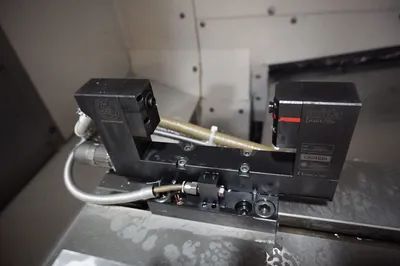

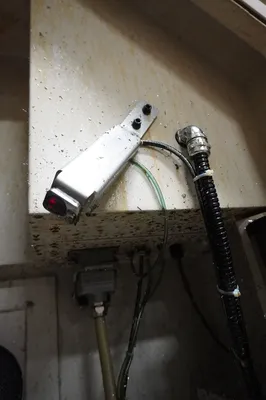

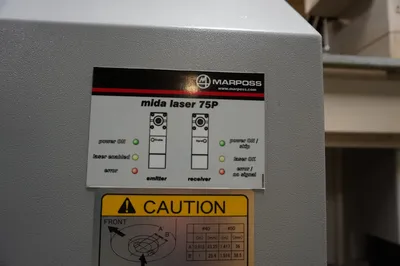

GAUGING
SPINDLE PROBE
X AXIS TRAVEL: 41.34"
Y AXIS TRAVEL: 22.05"
Z AXIS TRAVEL: 18.11"
RAPID RATE X AXIS: 1,575 IPM
RAPID RATE Y AXIS: 1,575 IPM
RAPID RATE Z AXIS: 1,262 IPM

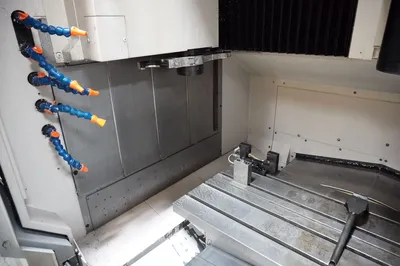

TABLE SIZE: 51.18" X 22.05"
MAX TABLE LOAD: 1,980 LBS
SPINDLE MOTOR: 30.00 HP
SPINDLE SPEED: 15,000 RPM
SPINDLE TAPER: CAT40 BIG PLUS

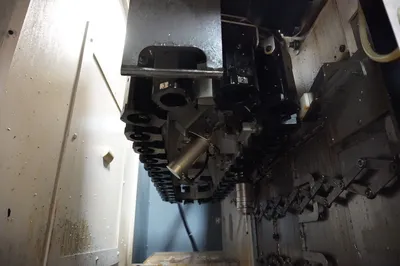

TOOL CHANGER: 30 ATC
DIMENSIONS: 122" X 99" X 108"
WEIGHT: 16,500 LBS
