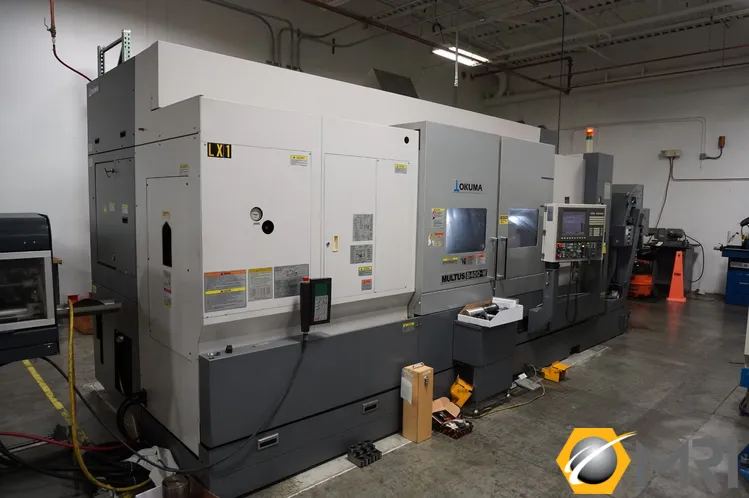

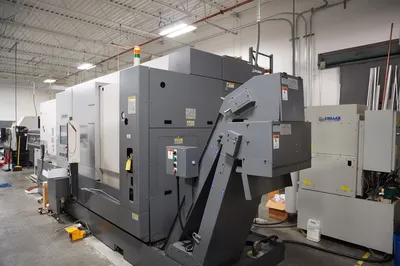

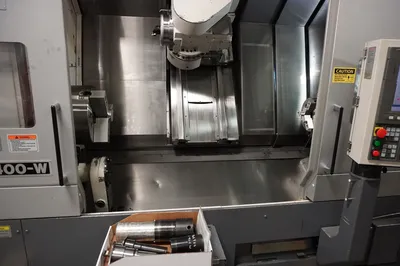

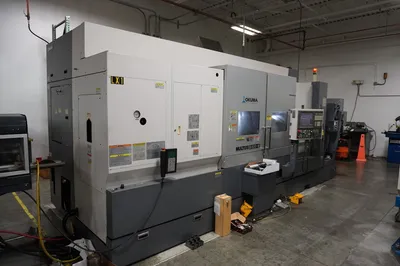

2011 OKUMA MULTUS B400-W CNC LATHE | AG 7611966

CHUCK SIZE 15"
BAR CAPACITY 4"
TURNING DIAMETER 26.37"
DISTANCE BETWEEN CENTERS 60.83"

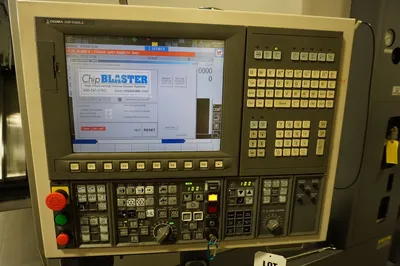

CONTROL OKUMA OSP-200L CNC CONTROL
B-AXIS INDEX 0.001 DEGREES
B-AXIS SWIVEL 225 DEGREES
C-AXIS INDEX 0.001 DEGREES
MAX DIAMETER BAR CAPACITY (L&R) 4.01"
MAX MACHINING LENGTH 59.06"
MAX SWING OVER BED / CARRIAGE 27.95" / 27.95"
MAX TOOL DIAMETER 3.54" / 5.12"
MAX TOOL LENGTH 15.75"
MAX TOOL WEIGHT 22 LBS
MILLING MOTOR 19 / 13 HP
MILLING SPEED 50 - 6,000 RPM
RAPID TRAVERSE RATES (X / Z / Y / W) 1574 / 1024 / 787 IPM
SPINDLE BORE 4.33"
SPINDLE MOTOR 30 / 20 HP
SUB SPINDLE INDEX 0.001 DEGREES
SUB SPINDLE MOTOR 22 / 15 HP
SUB SPINDLE SPEED 38 - 3,800 RPM

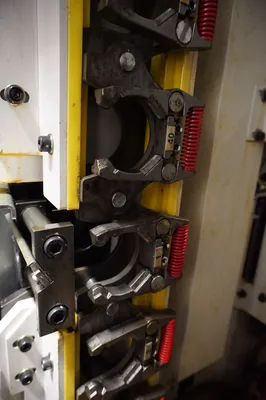

AUTOMATIC TOOL CHANGER 40 TOOL MAGAZINE ATC
W-AXIS TRAVEL (SUB SPINDLE) 61.02"
X-AXIS TRAVEL 27.17"
Y-AXIS TRAVEL +/- 4.53"
Z-AXIS TRAVEL 60.83"
MACHINE WEIGHT 34,000 LBS
MACHINE DIMENSIONS 226.4" X 104.7" X 118
