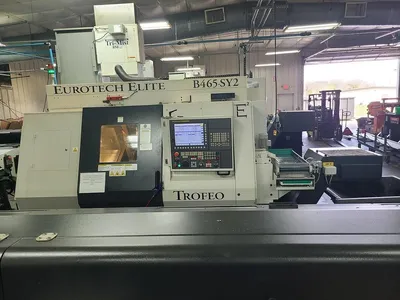

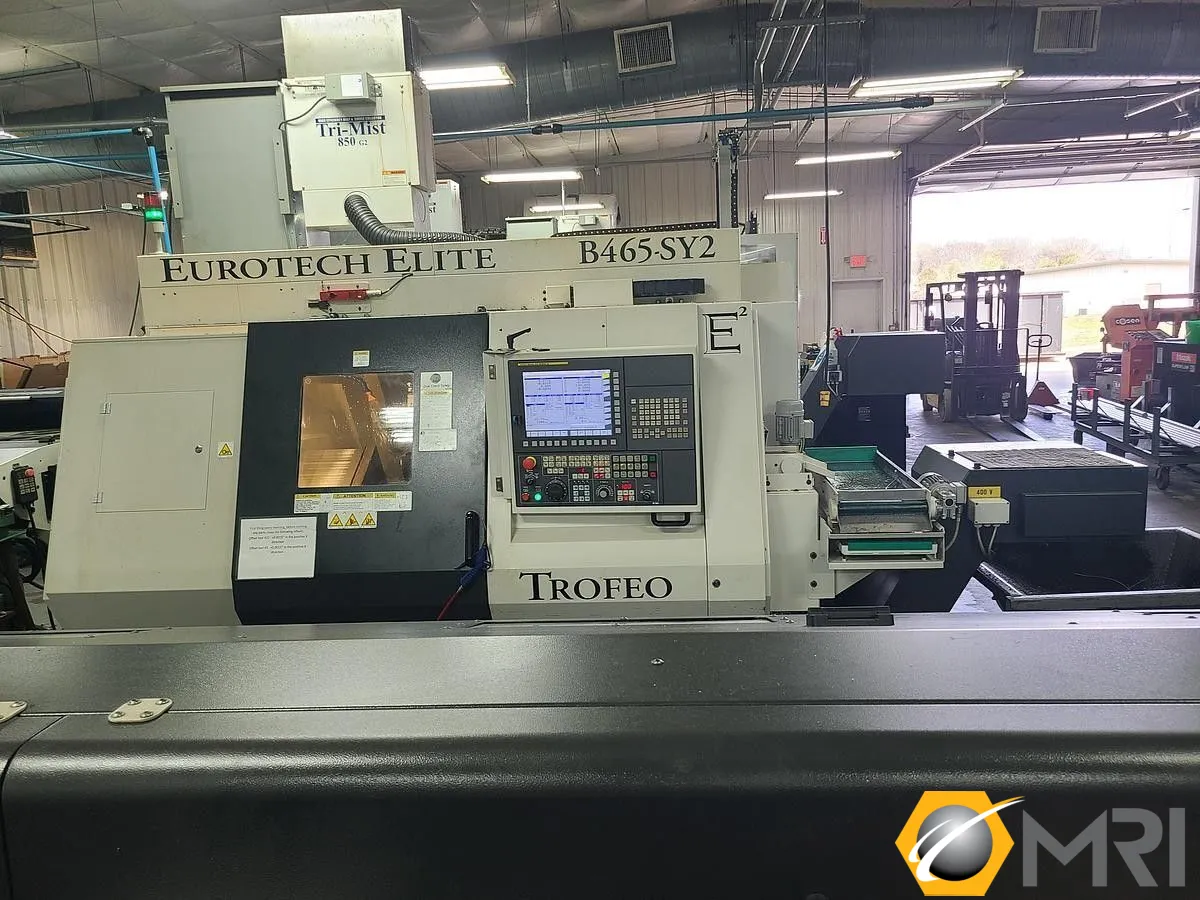

2020 EUROTECH TROFEO B465-SY2 CNC LATHE | AB 7611980
ConditionUsed
1 available
FANUC 31IB CNC CONTROL
TRI-MIST 850 G2 MIST COLLECTOR
12 FOOT EDGE PATRIOT 551 MAGAZINE BARFEED
LNS MAGNETIC CHIP CONVEYOR IN ADDITION TO STANDARD CHIP CONVEYOR (2 CHIP CONVEYORS INCLUDED)
EU-1000-2 HP COOLANT SYSTEM

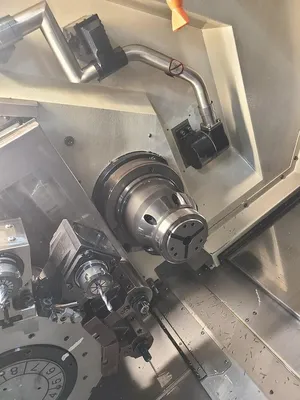

ROYAL QG-65 MAIN SPINDLE COLLET CHUCK

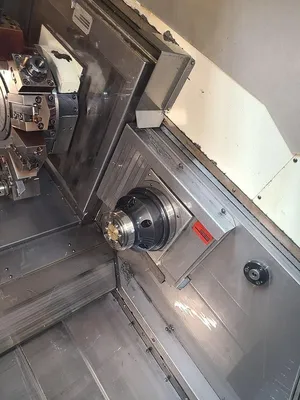

ROYAL QG-42 SUB-SPINDLE COLLET CHUCK
COOLANT THRU SUB SPINDLE
200MM EJECTOR OPTION
FARGO DA 51XN1/FE TRANSFORMER
OPTIONAL TOOLING* (SEE BELOW)
OPTIONAL TOOLING -
Osterle X Axis Live Tools 300-5501-E32 B109 Qty 9
P144-00118 Double Outlet Radial Qty 5
P144-00901 3 Position ID Block Qty 1
2 radial toolholders 10.57.82.00
3 boring bar holders 1 ¼” h=100mm 10.88.39.00
3 boring bar holders 1 ¼” h= 80mm 10.57.84.00
2 cut-off toolholders 10.57.85.00
2 toolholders 10.88.01.00
4 toolholders 20x20 to machine on the sub-spindle 10.88.14.00
2 coolant plugs 10.57.84.03.1
BAR CAPACITY: 2.56"
DISTANCE BETWEEN CENTERS: 37.5"
SWING OVER DIAMETER: 20"
SPINDLE SPEED: 4,000 RPM
MAIN SPINDLE-
SPINDLE NOSE: 6" ASA
SPINDLE BORE: 3.15"
SPINDLE MOTOR: 35HP
SUB SPINDLE-
SPINDLE SPEED: 5,000 RPM
SPINDLE NOSE: 5" ASA
SPINDLE BORE: 2.17"
SPINDLE MOTOR: 15 HP

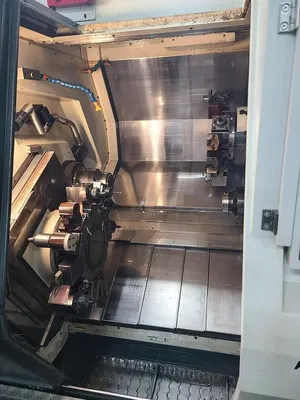

TURRET -
NUMBER OF STATIONS / MAX NUMBER OF TOOLS: 12 / 192
TURRET INDEXING (1 POSITION): 0.15 SECONDS
NUMBER OF LIVE TOOL STATIONS / MAX NUMBER OF LIVE TOOLS: 24 / 48
TOOL SPEED (STANDARD/MAX): 4,000 / 6,000 RPM
MACHINE WITH CHIP CONVEYOR: 173" X 85" X 89"
SPINDLE CENTER HEIGHT: 42"
MACHINE WEIGHT WITH CHIP CONVEYOR: 17,900
