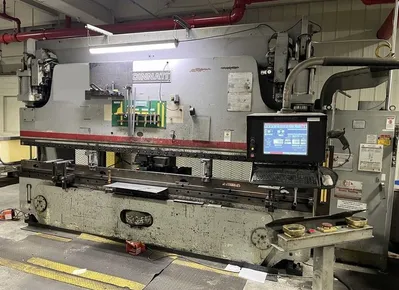

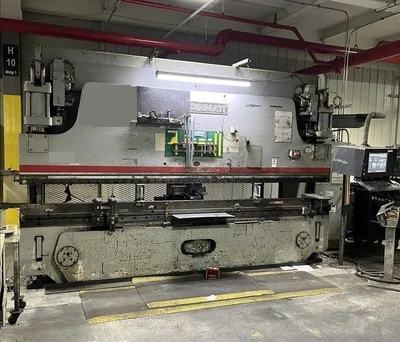

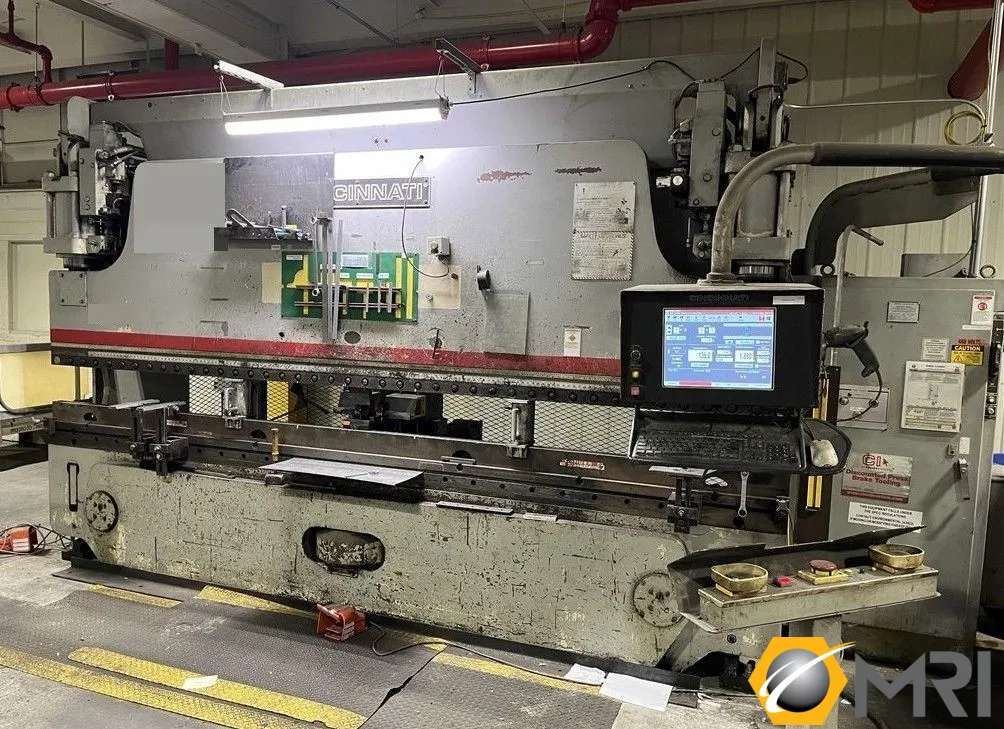

CINCINNATI AUTOFORM 135AF X 12 CNC PRESS BRAKE, NEW 1993
ConditionUsed
1 available
CINCINNATI AUTOFORM 135AF X 12 CNC PRESS BRAKE, NEW 1993
135 TONS
14' OVERALL
6-AXIS BACK-GAUGE

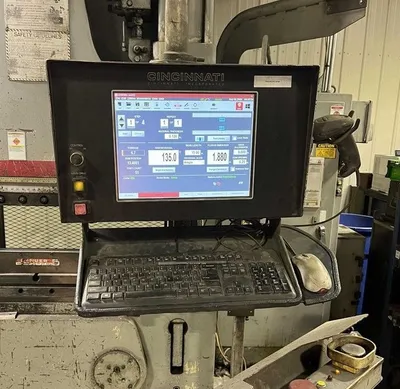

CINCINNATI GEN 6 AUTOFORM CONTROL - UPGRADED IN 2022
9-AXIS CINCINNATI GEN 6 AUTOFORM CONTROL - UPGRADED IN 2022

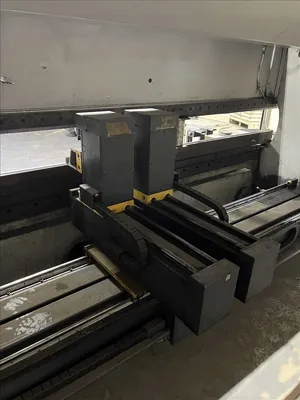

6-AXIS PROGRAMMABLE BACK-GAUGE (X1-X2, R1-R2, Z1-Z2)
DUAL RAM ENCODERS (Y1-Y2)
AUTO CROWN
UPPER POWER CLAMPING
PEDESTAL MOUNTED PALMBUTTON STATION
FOOT SWITCH
LIGHT GUARDS
SHEET SUPPORTS
TONNAGE CAPACITY: 135
OVERALL LENGTH OF BED & RAM: 168"
DISTANCE BETWEEN HOUSINGS: 150.25"
STROKE: 8"
OPEN HEIGHT: 15"
CLOSED HEIGHT: 7"
THROAT CLEARANCE: 7"
SPEEDS:
- HIGH APPROACH: 290 IPM
- VARIABLE FORMING: 1 TO 80 IPM
- RETURN: 270 IPM
RAM REPEATABILITY: (+-) 0.0002"
DISTANCE FROM FLOOR TO BED TOP: 34"
WIDTH AT TOP OF BED: 4.5"
PIT REQUIRED: YES
MOTOR: 25 HP
APPROX. DIMENSIONS: 205(L) x 60"(D) x 111"(H)
APPROX. SHIPPING WEIGHT: 30,000 LBS
