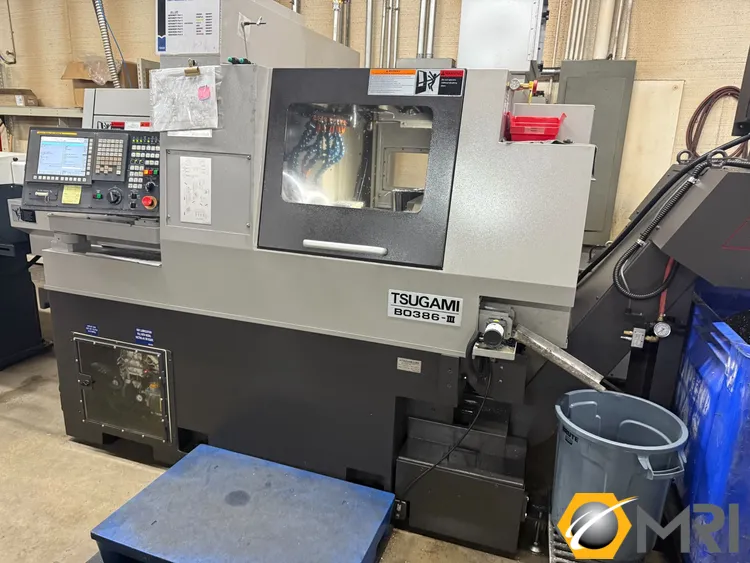

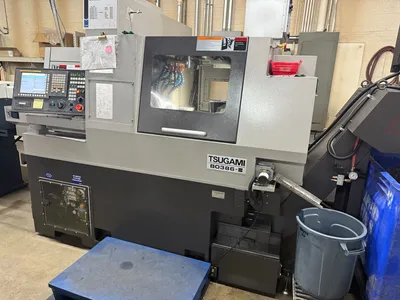

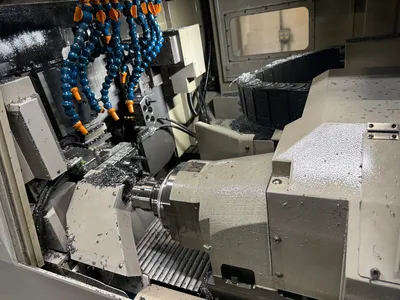

Tsugami B0386-III CNC Swiss Lathe, New Oct 2023, Delivered 2024 #7611996 MM
ConditionUsed
1 available
Tsugami B0386-III CNC Swiss Lathe, New Oct 2023, / Delivered 2024
Convertible Machine, LNS Alpha 538 Bar Loader, Full 12'
Controllable Axes: X1, Y1, Z1, X2, Y2, Z2, C1, C2
Fanuc 32i-B CNC Control

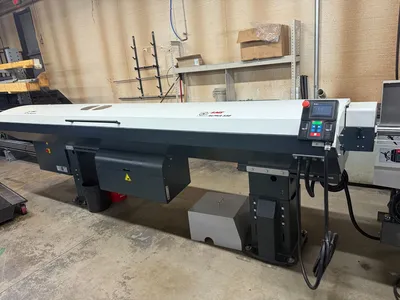

LNS Alpha 538 Bar Loader, Full 12'
Rotary Guide Bushing
Chucker Kit

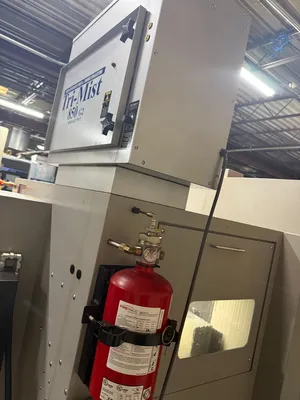

Tri Mist 850 G2 Mist Collector

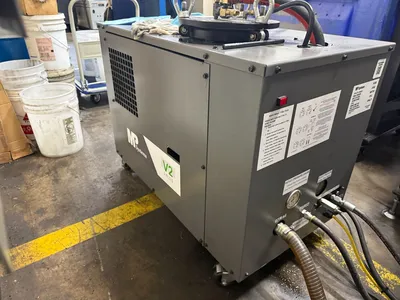

MP Systems V2 Swiss, High Pressure Coolant System
Chip Conveyor
Fire Suppression System
Hours:
Power on: 7224
Run Time: 4709
Cutting Time: 1754
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
OEM Specifications:
Max. Swiss Diameter: 38 mm (1.5")
Max. Chucking Diameter 42 mm (1.625")
Max. Machining Length 320 mm (with Guide Bushing), (12.6")
70 mm (without Guide Bushing) (2.75")
Max. Main Drilling Diameter Ø13 (.51")
Max. Main Tapping Diameter M12
Max. Back Spindle Diameter 38 mm (1.5")
Max. Back Spindle Drilling Dia Ø12 (.47")
Max. Back Spindle Tapping Dia M12
Max. Cross Drilling Dia Ø8 (Front tool post/Rear tool post/Back Tool post)
Max. Cross Tapping Dia M6
Max. Tool Spindle Slotting Cutter Dia Ø45 (1.77") (T4)
Max. Back Drilling Dia Ø10mm (.39")
Max. Back live Tapping Dia M8
Main Spindle Speed 200 to 6000 min
Back Spindle Speed 200 to 7000 min
Rotary Guide Bushing Speed 200 to 6,000 min-1: Direct-drive rotary guide bushing
Tool Spindle Speed 200 to 6000 min-1
(Normal speed 4800 min-1)
Total Tool Number (Standard Spec.) 32
Tool Size 5/8” (6 pcs), 3/4” mm (1 pc)
Rapid Traverse Rate 32 m/min (X1, Z1, Y1, Y2: 24 m/min)
Spindle Index C1 Axis and C2 Axis
Main Spindle 10/15 Hp (7.5/11 kW)
Back Spindle 5/7.5 Hp (3.7/5.5 kW)
Cross Drill of Front Tool Post 200 to 6,000min-1 (Normal spindle speed 4,800min-1)
Cross Drill of Rear Tool Post Drive 200 to 6,000min-1 (Normal spindle speed 4,800min-1)
Rotary Tool of Back Tool Post 2 Hp (1.4 kW)
Y2 Axis 0.7 Hp (0.5 kW)
X1, Y1, Z1, X2, Z2 axis 1 Hp (0.75 kW)
Coolant Pump 0.5 Hp (0.4 kW)
Lubricating Oil Pump 3 W
Compressed Air Requirement 0.4 MPa or above
Air Discharge Rate 100 NL/min
Power Source Requirements 22.4 kVA
Coolant Tank Capacity 260L
NC Unit FANUC 32i-B
Axis Name X1, Y1, Z1, X2, Y2, Z2, C1, C2
Least Input Increment 0.001mm (Diametrical designation for X1, X2 axes)
Least Command Increment X1, X2 axes 0.0005 mm, other axes 0.001 mm
Maximum Programmable Value +/-8 digits
Interpolation Method Linear/circular
Rapid Traverse Function 32 m/min
(X1, Y1, Z1, Y2: 24 m/min)
Machine Dimensions w/out Bar feed: 88" x 60" x 81"
Machine Dimensions with Bar Feed: 103.5” x 50.4” x 77.5”
Machine Weight: 10,700 lbs
