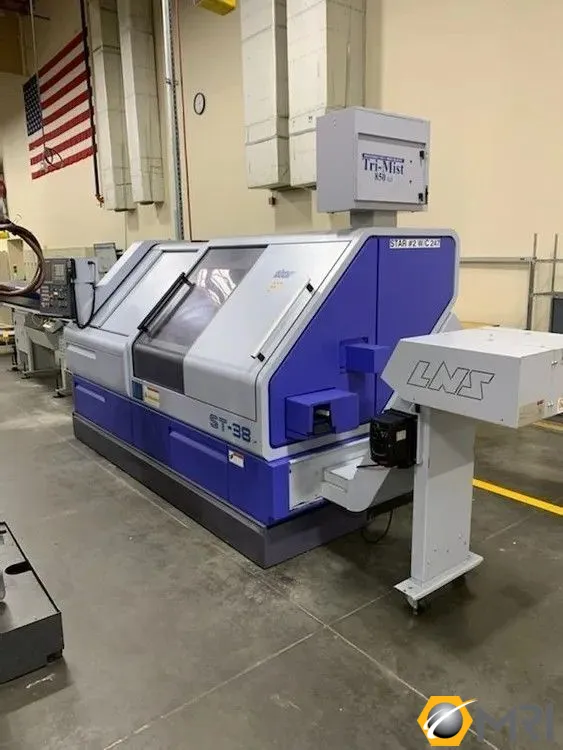

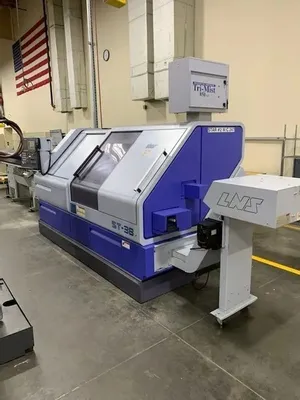

2015 STAR ST-38 CNC LATHE | AB 7612003

SPINDLE HOLE DIA 38 mm
POWER 11 kW
RPM 7,000 RPM
# AXIS 12

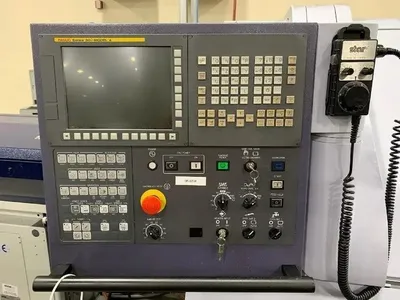

CONTROL CNC Fanuc 30i-A
DIMENSIONS 136" x 73" x 74"
WEIGHT 13,800 LBS
Machining Diameter 1-1/2" (38mm)
Headstock Stroke 13-25/32" (350mm)

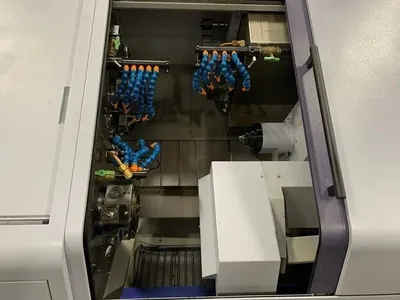

Front Side Turret 10 Station
Back Side Turret 10 Station
Number of Turning Tools Max. 2 Tools/Station
Sleeve Holder-
Number of Tools Max. 3 Tools/Station
Drilling Capability 29/32" (23mm)
Tapping Capability M12 x P1.75
Depth of Hole Capability 4-23/32" (120mm)
Power Driven Attachment-
Number of Tools Max. 2 Tools/Station
Drilling Capability 25/64" (10mm)
Tapping Capability M8 x P1.25
Main Spindle Indexing Angle- C-Axis Control
Main Spindle Speed 7,000 RPM
Spindle Motor 7.5/11 Kw
Power Driven Attachment Spindle Speed 5,700 RPM
Power Driven Attachment Motor 2.7/4.0 Kw
Backworking Attachment Specifications-
Chucking Diameter 1-1/2" (38mm)
Length For Front Ejection 5-7/8"
Parts Projection Length 2-15/16" (75mm)
Sub Spindle Indexing Angle C-Axis Control
Sub Spindle Speed 7,000 RPM
Sub Spindle Motor 5.5/7.5 Kw
Back Working Turret Tool Post 10 Station
Number Of Turning Tools Max. 2 Tools/Station
Sleeve Holder-
Number of Tools Max. 3 Tools/Station
Drilling Capability 29/32" (23mm)
Tapping Capability M12 x P1.75
Depth of Hole Capability 4-23/32" (120mm)
Power Driven Attachment-
Number of Tools Max. 2 Tools/Station
Drilling Capability 25/64" (10mm)
Tapping Capability M8 x P1.25
Power Driven Attachment Spindle Speed- 5,700 RPM
Power Driven Attachment Motor 2.7/4.0 Kw
Power Consumption 10.5 KVA
Dimensions (approx) 136" x 73" x 74"
Weight (approx) 13,800 LBS
