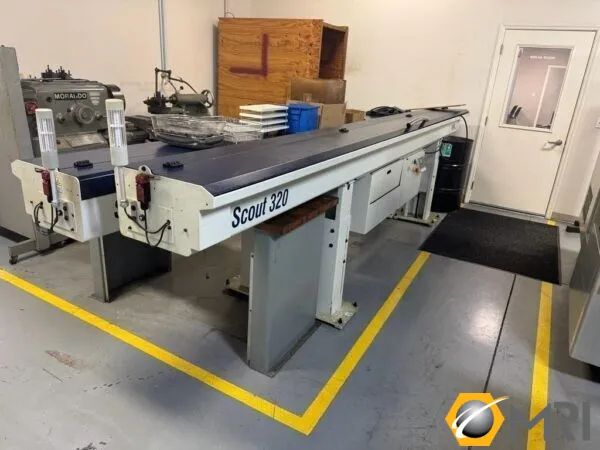

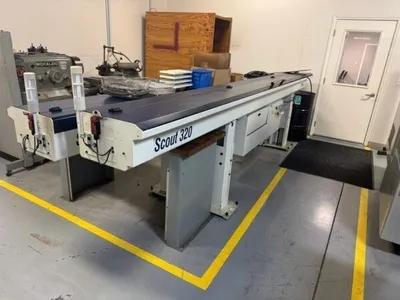

2019 EDGE TECHNOLOGIES SCOUT 320 BAR BEEDER | AB 7612004

Bar Diameter Capacity – No Bar Preparation: .118” To 1.000”
Bar Diameter Capacity – With Bar Preparation: .118” To 1.062”
Maximum Bar Length: 12 Feet 5 Inches
Maximum Remnant Length: 16.500”
Magazine Rack Capacity: 8”
Bar Loading Cycle Time: 35 Seconds For 12-Foot Bar
Material Straightness Specification: .007” Tir/Foot Of Material (V Blocks, 3 Points Equidistant)
Feed Force (Pusher Torque): Max 1 101 Lbf, Adjustable
Forward Feed Rate: 1400 Inches/Minute Max, Adjustable
Return Feed Rate: 2360 Inches/Minute Max, Adjustable
Power Consumption: 1.5 Kw – (2 Kva)
Operating Voltage: 230V/60Hz 3-Phase
Control Voltage: 24V 2 Dc
Oil Capacity: 12 Gallons
Oil Viscosity: Iso 100 Cst
Compressed Air Supply: 90 Psi
Compressed Air Consumption: Approx. 8 Liters Per Loading Cycle
Machine Weight: 926 LBS
