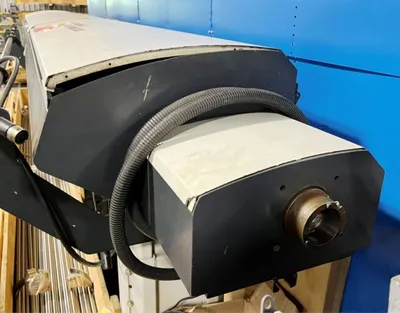

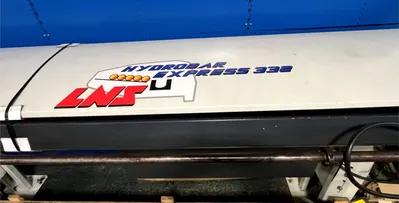

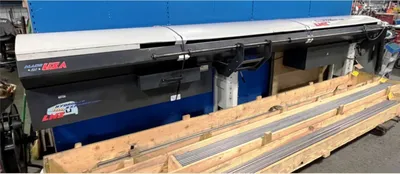

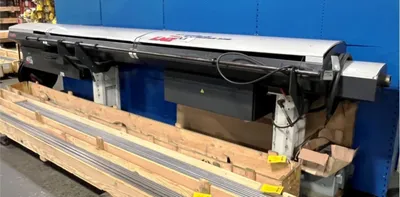

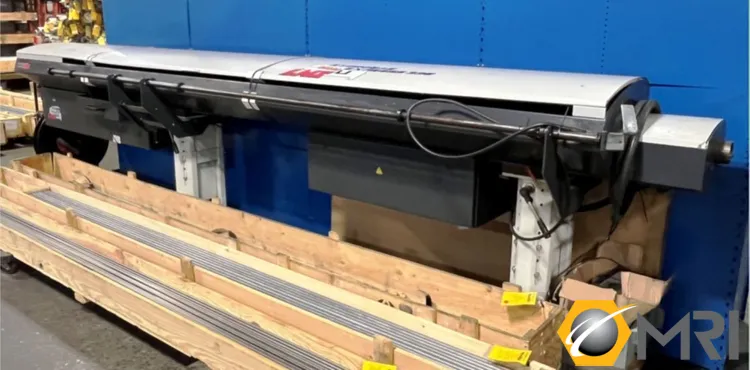

2010 LNS HYDROBAR EXPRESS 332 BAR LOADER | AB 7612010

Bar length capacity 12'
Bar diameter capacity 0.125″ – 1.250" (32mm)
Bar feed Z-axis retract 20″
Min. bar length capacity 27.6″
Hydraulic oil 21 US gal.
Loading cycle 35 – 40 sec.
Min. remnant length 4"
Max. remnant length 15.75"
Max. feed rate 4,000 IPM
Pneumatic pressure 74 PSI
Max. pushing force 124 LBS
Air consumption 10 l/loading cycle
Rack capacity 11.6″ wide
Dimensions (approx.) 197"L x 24"D x 69"H (max.)
Weight (approx.) 1,540 LBS
