Originally Configured for Citizen BNX51MSY
can be configured to fit a 65mm machine. Pricing direct from OEM

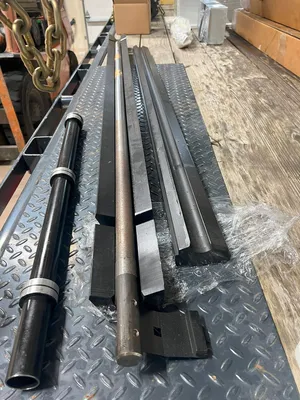

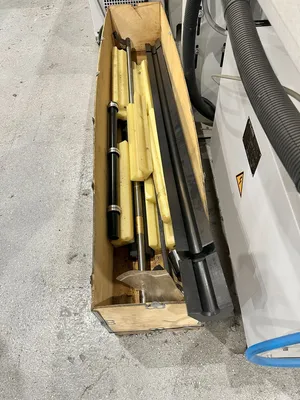

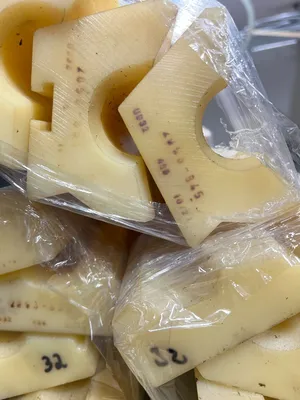

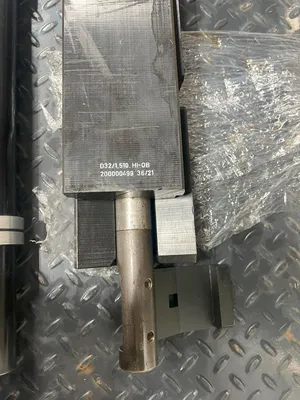

2 Channel sets, 32mm and 51mm
| Capacity | 2.559" | 64.999 mm |
| Bar Length | 12.5' | 3.8 m |
| Weight | 6,160 LBS | 6,160 LBS |
Bar Diameter Capacity:
w/out prep: .196" - 2.362" (5mm - 60mm)
with prep: .196" - 2.559" (5mm - 65mm)
Max. bar length: 3800 mm (12' 5")
Min. bar length: 1000 mm (39.4")
Max. remnant length: 530 mm (20.8"
Magazine rack capacity: 11"
Bar loading cycle time: 30 seconds for 12' bar
Material straightness specification: .007" TIR/ft. of material
(V blocks, 3 points equidistant)
Feed force (pusher torque): max 750 N, adjustable
Forward feed rate: 2360 IPM, adjustable
Return feed rate: 0 - 1650 IPM, adjustable
Power consumption: 1.5 kw
Operating voltage: 230V/60Hz 3-phase
Control voltage: 24V DC
Oil capacity: 80 liters (22 gallons)
Oil viscosity: ISO 150 cST
Compressed air supply: 6 bar (90 psi)
Compressed air consumption: approx. 10 liters per loading cycle
Weight (approx.): 6,160 LBS
