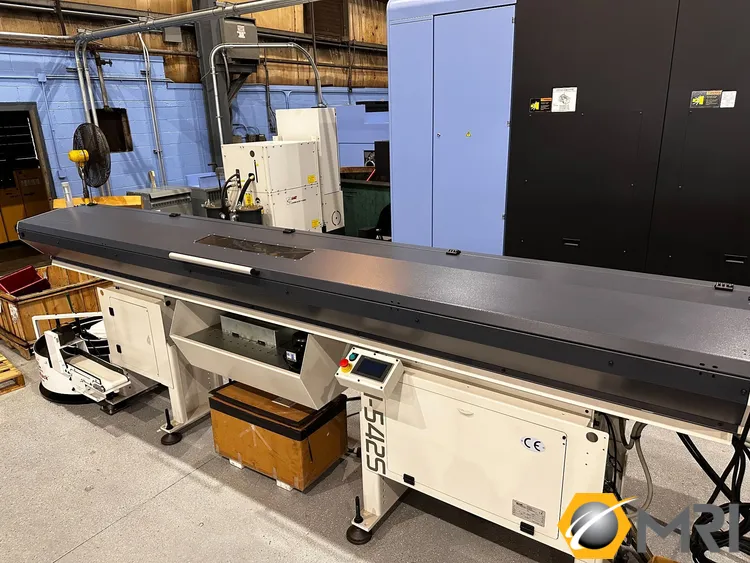

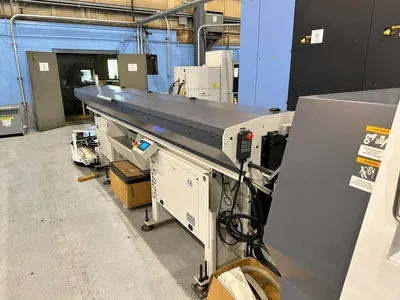

2021 EDGE MIYANO M-542 BAR LOADER | AB 7612020
$27,500.00 USD
ConditionUsed
1 available

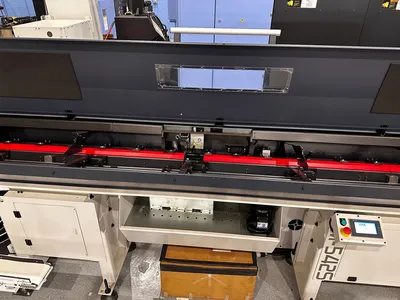

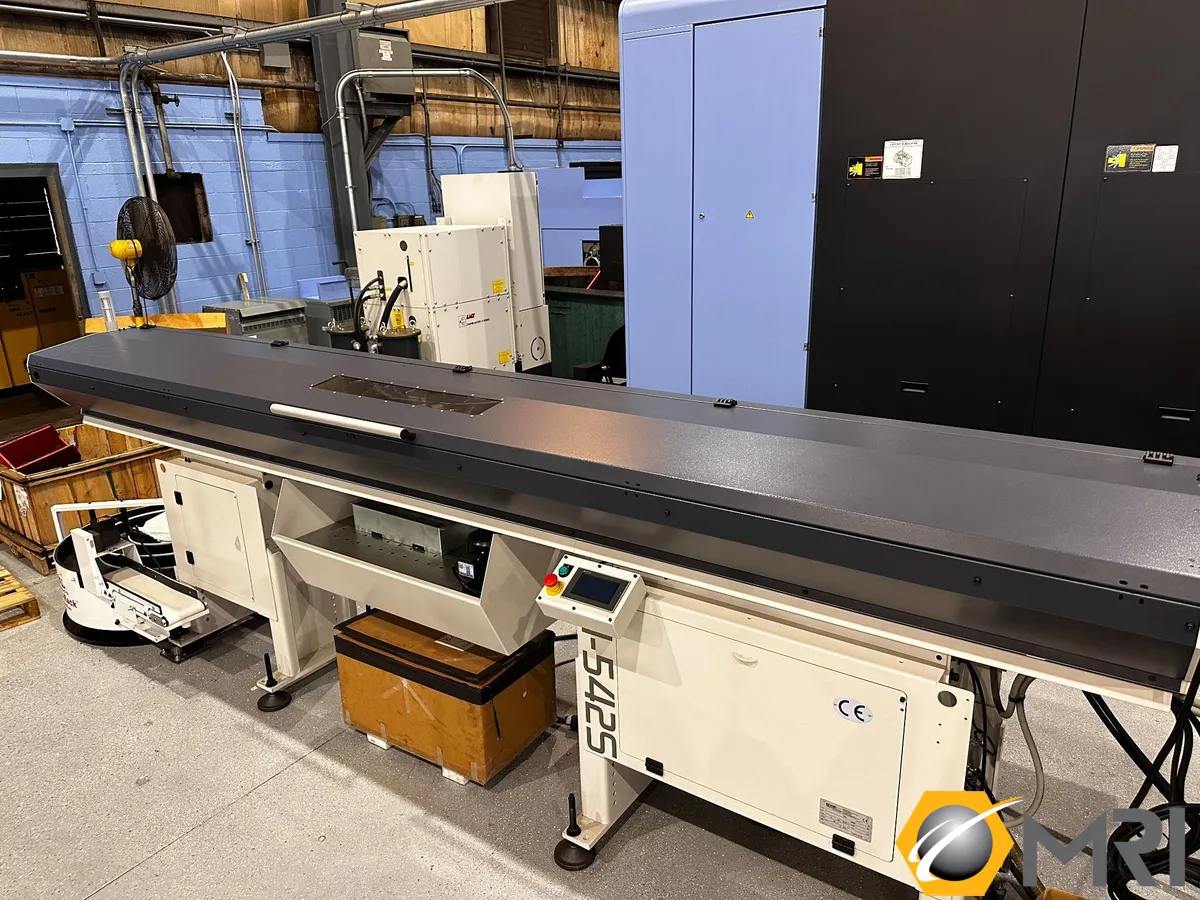

2021 EDGE MIYANO M-542 BAR LOADER | AB 7612020
**Like-New Condition. Never Before Used.****
Originally Configured for a Citizen Miyano BNA42GTY, Sliding Head Stock lathe
Like-New Condition, Never used
Multiple Channel sets included.
(Edge Patriot 338)

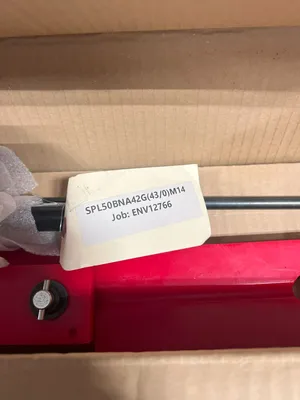

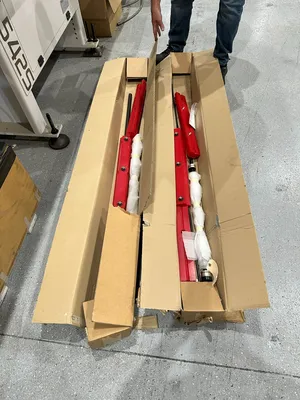

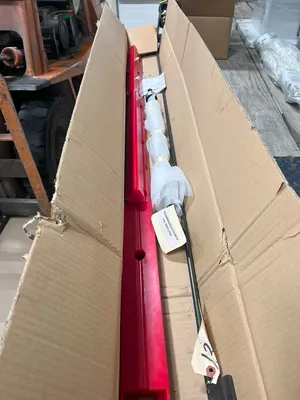

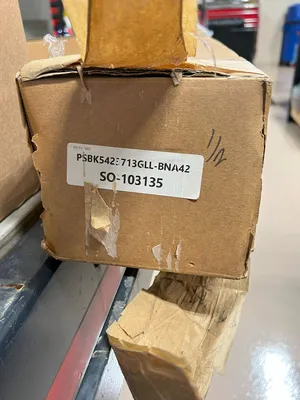

3 Channel sets included:

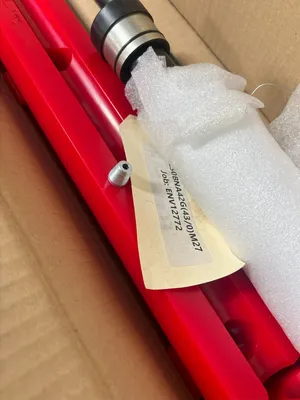

14, 27 and 42mm channel sets with pushers (to be verified by buyer)

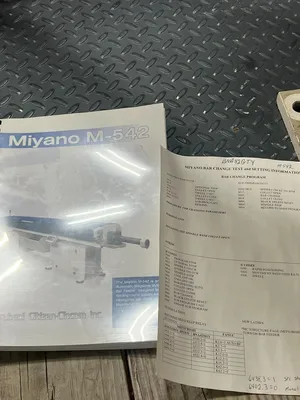

Specifications Direct From OEM Brochure:
Power consumption: 2 KW
Feed force: adjustable, max. 450 N (101 lbf)
Forward feed rate: adjustable 750 mm/sec max. (2.46 ft/sec)
Return feed rate: 1000 mm/sec (3.3 ft/sec)
Loading time: 30 sec (for 12’ bars)
Oil capacity : 55 liters (15 gallons)
Oil viscosity: ISO 100-150 hydraulic oil
Operating voltage: 200-230 V/60 Hz
Compressed air supply: 6 bar = (90 psi)
Compressed air consumption: approx. 8 liters per loading action
Bar Feed Dimensions: 180" x 25" x 51"
Weight without oil: 950 kg (2100 lbs)
Remnant length: 406 mm max (16 inches)
Maximum Bar Length: 3810 mm (12’6”)
Bar Diameter Range: 5-42 mm (.196”-1.653”)
Magazine Capacity: 12 linear inches
