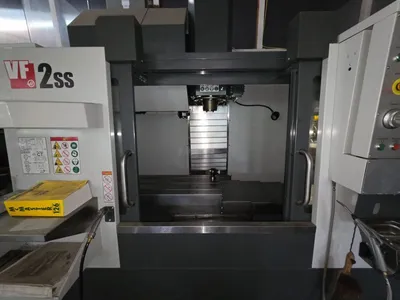

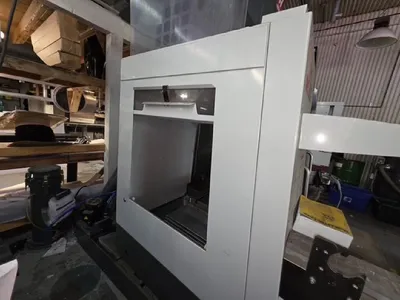

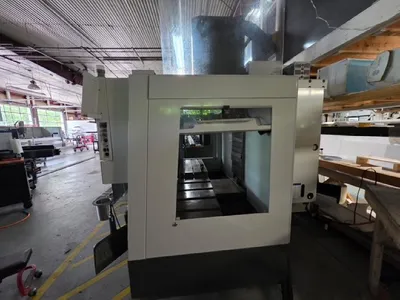

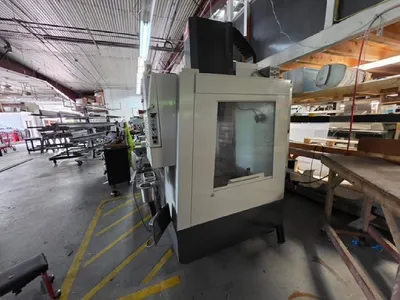

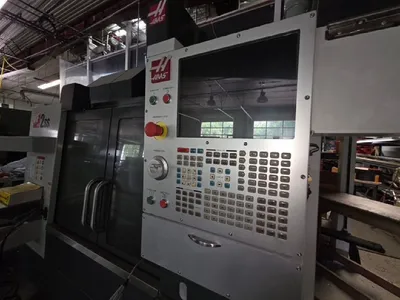

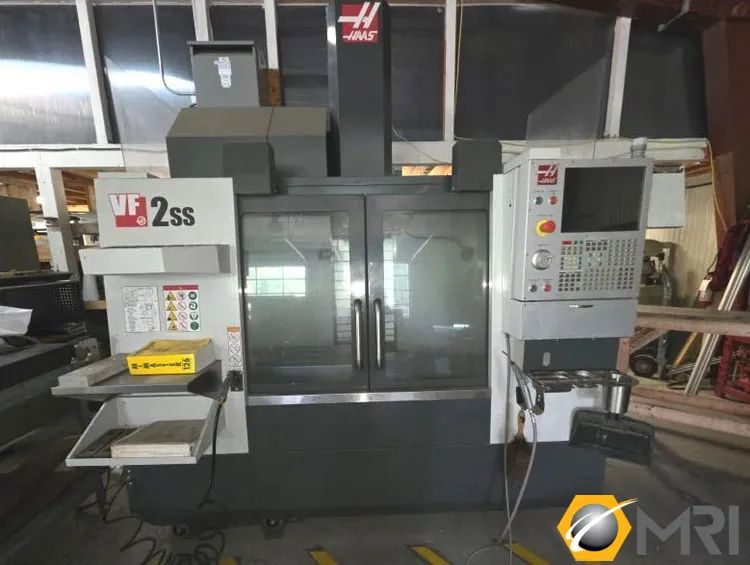

2019 HAAS VF-2SS VERTICAL MACHINING CENTER | JS

X Axis 30.0”
Y Axis 16.0”
Z Axis 20.0”
Spindle Nose to Table (~ max) 24.0”
Spindle Nose to Table (~ min) 4.0”
SPINDLE
Max Rating 30.0 hp
Max Speed 15,000 rpm
Taper CAT40
Type Inline Direct Drive

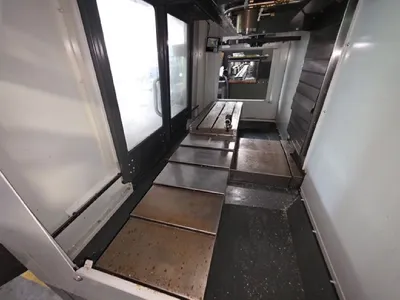

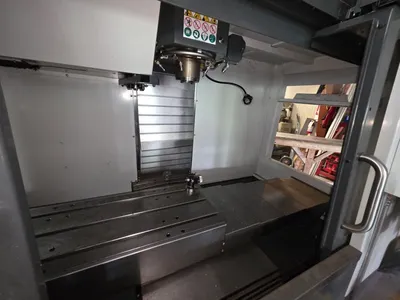

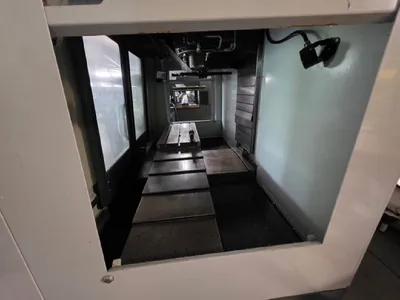

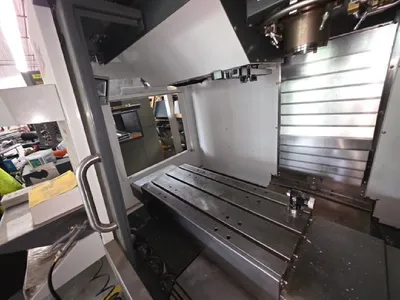

TABLE
Length 36.0”
Width 14.0”
T-Slot Width 0.626” to 0.630”
T-Slot Center Distance 4.92”
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 1500 lb
FEEDRATES
Max Cutting 833 ipm
Rapids on X 1400 ipm
Rapids on Y 1400 ipm
Rapids on Z 1400 ipm
AXIS MOTORS
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
TOOL CHANGER
Type SMTC
Capacity 30+1
Max Tool Diameter (full) 2.5”
Max Tool Diameter (adjacent empty) 5.0”
Max Tool Length (from gage line) 11”
Max Tool Weight 12 lb
Tool-to-Tool (avg) 1.8 s
Chip-to-Chip (avg) 2.4 s
DIMENSIONS - SHIPPING
Domestic Pallet 101” x 99” x 101”
Export Pallet 98” x 92” x 100”
Weight 7800 lb
