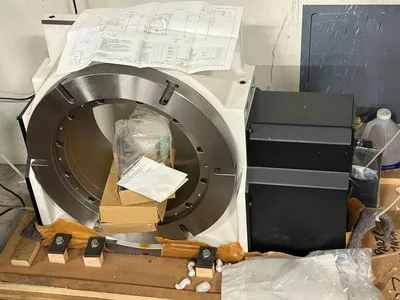

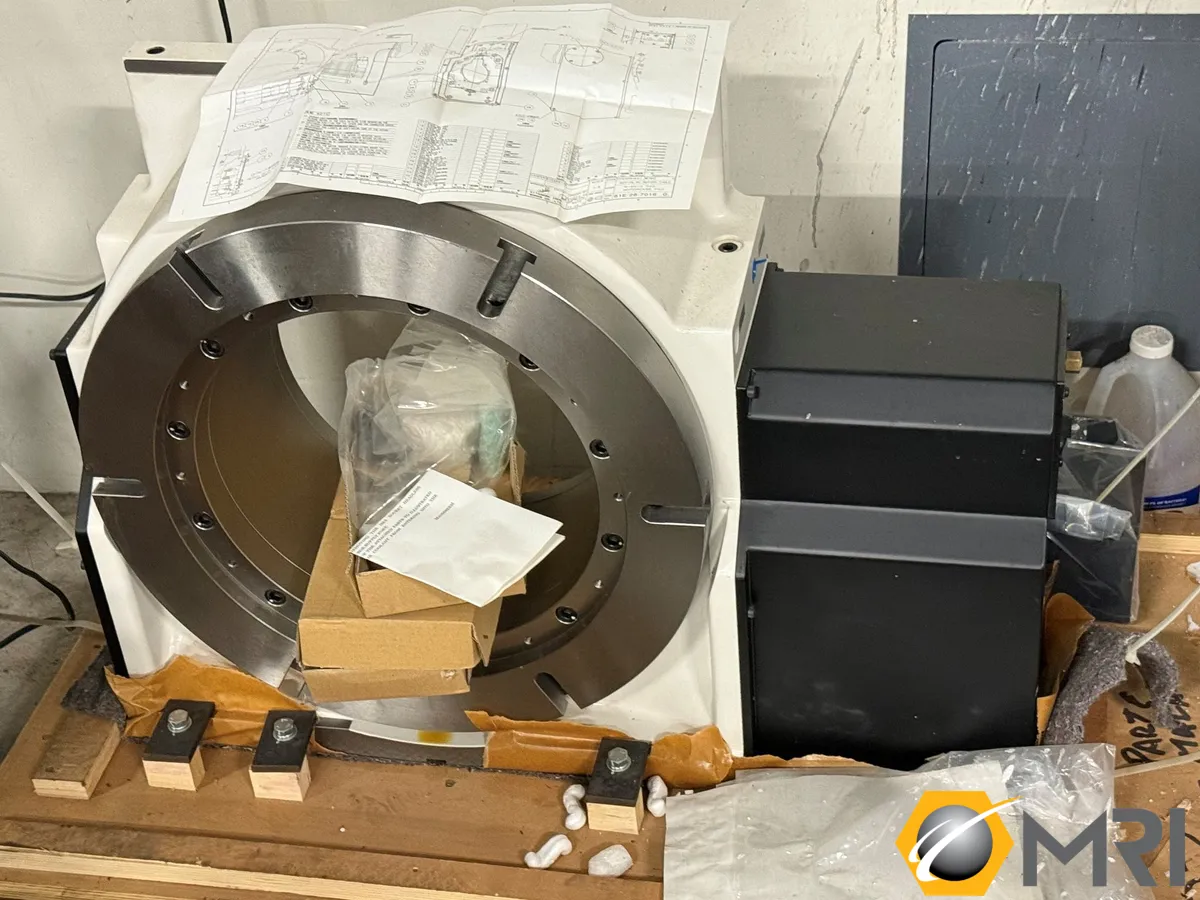

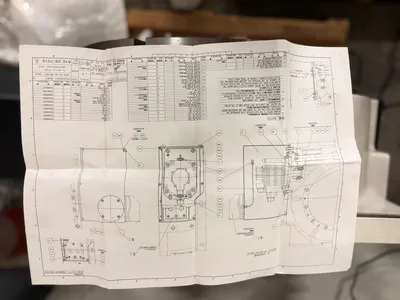

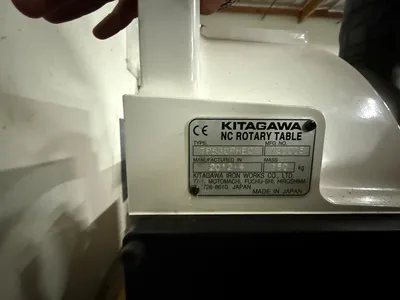

2012 NEW KITAGAWA TP530 ROTARY TABLE | AG 7612036

TABLE DIAMETER (MM) Φ530
CENTER HOLE DIAMETER (MM) Φ400H7
THROUGH HOLE DIAMETER (MM) Φ345
CENTER HEIGHT (MM) 310
CLAMPING METHOD HYDRAULIC-
CLAMPING TORQUE (AT HYDRAULIC 3.5MPA) (N.M) 6100
MOTOR AXIS REDUCED INERTIA (KG.M2) 0.0025
SERVOMOTOR (FOR FANUC SPECIFICATION) ΑIF12/4000-B
TOTAL REDUCTION RATIO-
ADDITIONAL AXIS SPECIFICATION 1/180
M SIGNAL 1/180
MAX. TABLE ROTATION SPEED-
FANUC SPECIFICATIONS (MIN-1/AT MOTOR 2000 MIN-1) 11.1
M SIGNAL SPECIFICATIONS 8.33 (AT MOTOR 1500MIN-1)
ALLOWABLE WORK INERTIA (KG.M2) 12.29
INDEXING ACCURACY (SEC) 20
REPEATABILITY (SEC) 4
MASS OF PRODUCT WEIGHT (KG): 350
MANUAL TAILSTOCK (AS AN OPTION, SEE PAGE 115) - TS500RN
