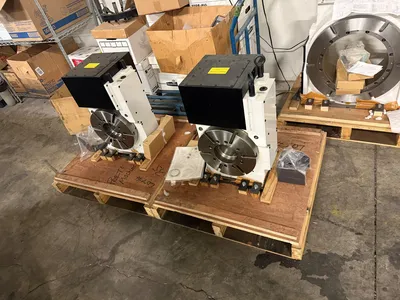

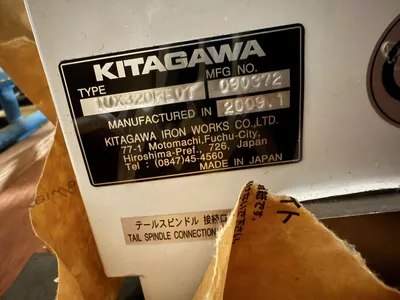

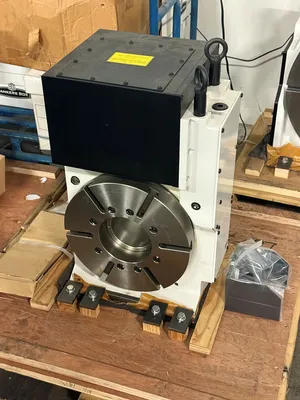

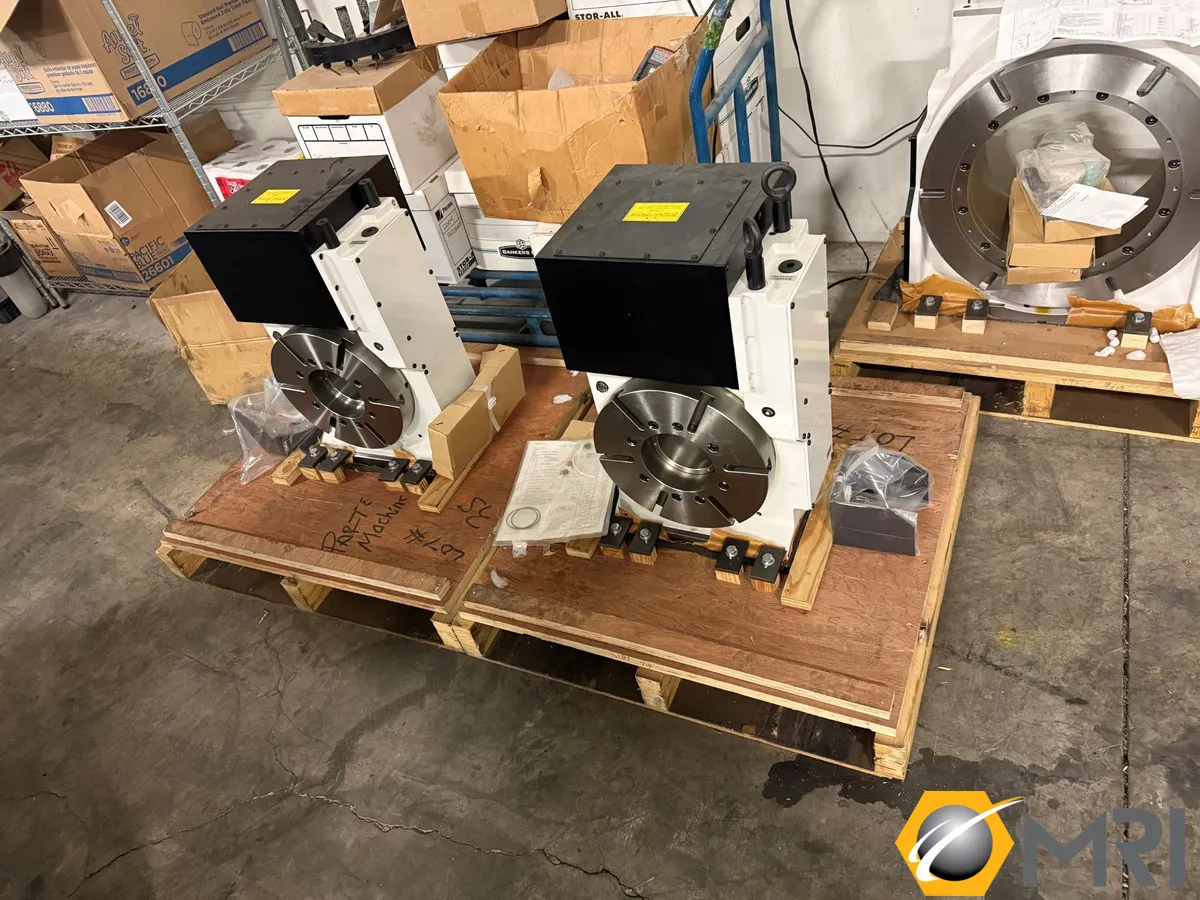

2009 KITAGAWA TUX320 ROTARY TABLES | AG 7612037

TABLE DIA (MM) Ø320
REGISTER DIAMETER ON FACE PLATE (MM) Ø135H7
SPINDLE THROUGH HOLE DIAMETER (MM) Ø110
CENTRE HEIGHT (MM) 225
CLAMPING METHOD Air-Hycraulic/Hydraulic
CLAMPING TORQUE (N͗·M)(PNEUNATIC TUX 0.5MPA, TU 0.45MPA) 2600
HYDRAULIC 3.5MPA 0.00085
MOTOR AXIS REDUCED INERTIA (KG•M2) 0.00085
SERVOMOTOR (FOR FANUC SPECIFICATION) aiF 8/3000 1/120
GEAR RATIO (DECEL. RATIO IN M SIGNAL) 1/120
MAX. SPINDLE SPEED-
FANUC SPECIFICATION(FOR MIN.¹/MOTOR 3000MIN·¹) 25 (3000min-1)
M SIGNAL SPECIFICATION(FOR MIN.¹/MOTOR 3000M01·¹) 25 (3000min-1)
ALLOWABLE WORK INERTIA (KG·M2) 2.24
INDEXING ACCURACY (SEC) 20
REPEATABILITY (SEC) 4
MASS OF PRODUCT (KG) 200
MANUAL TAILSTOCK (OPTION· P89 REFERENCE) TS320RN
TAIL SPINDLE (OPTION· P93 REFERENCE) TSR181A-45
ROTARY JOINT (OPTION· P97 REFERENCE) RJ70H32V01 HYDRAULIC/PNUEMATIC 6-PORT
