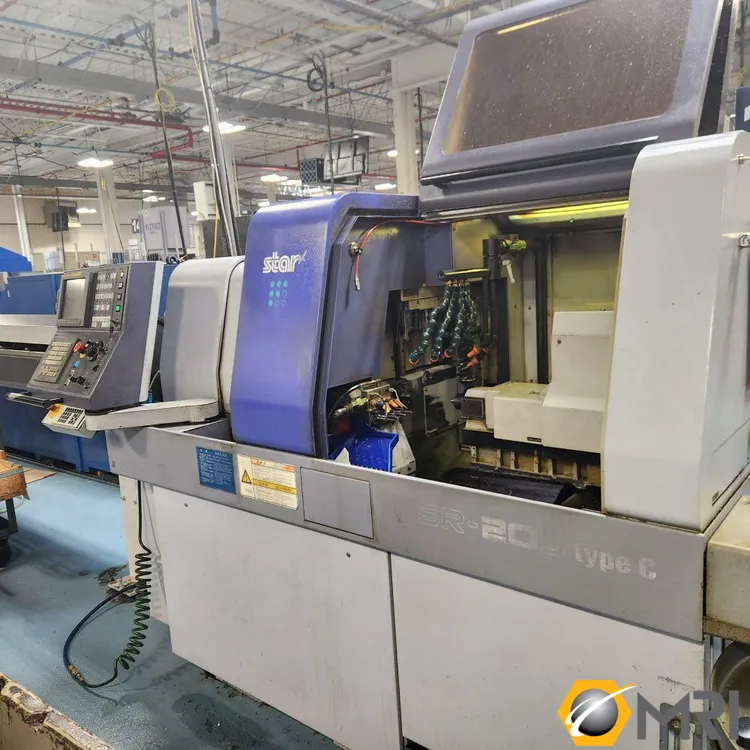

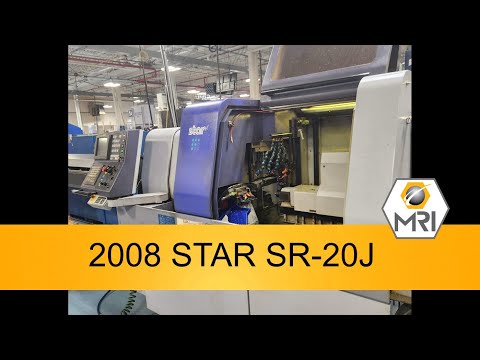

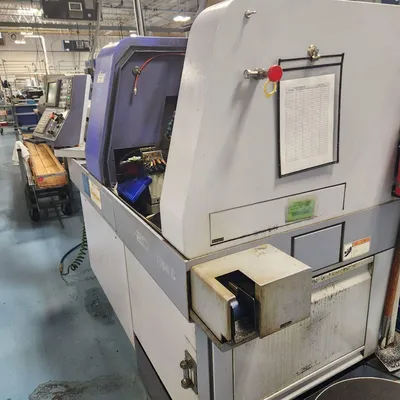

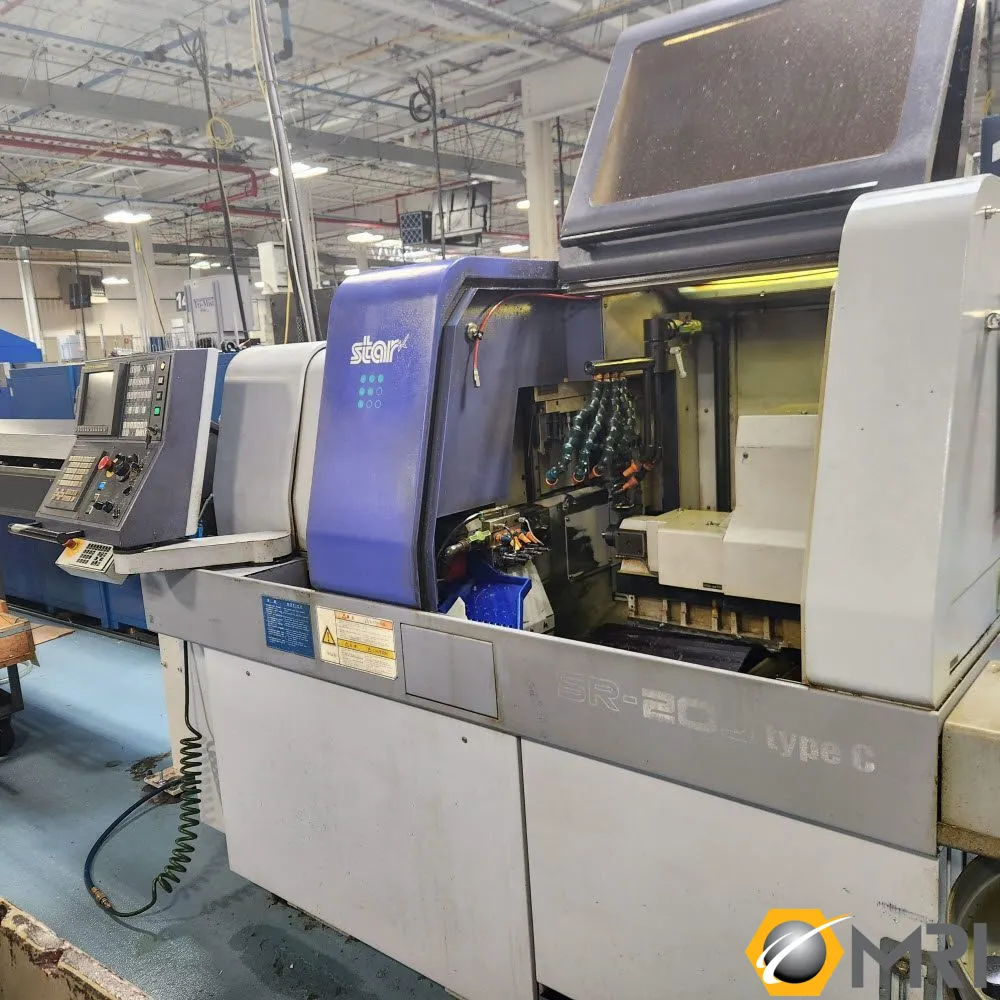

2008 Star SR-20J Type C CNC Swiss Lathe | AB 7612040

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Machining Diameter: 3/4"
Headstock Stroke (w/ Rotary Guide Bushing): 8.07" (6.7")
Main Spindle Speed: 10,000 RPM
Main Spindle Indexing: Full C-Axis
Main Spindle Motor: 4.9 HP

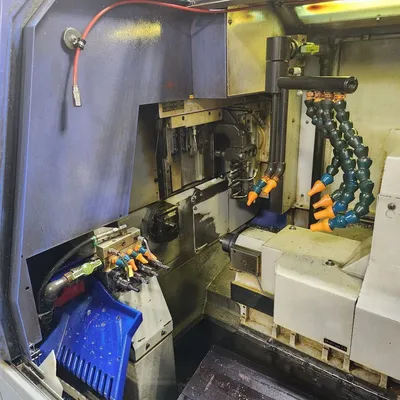

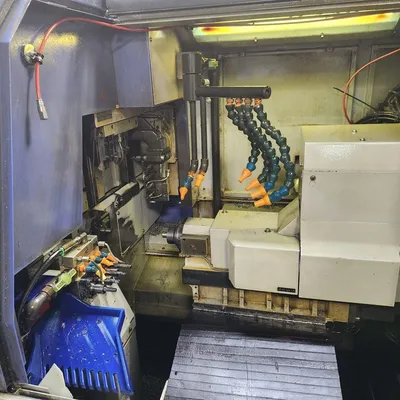

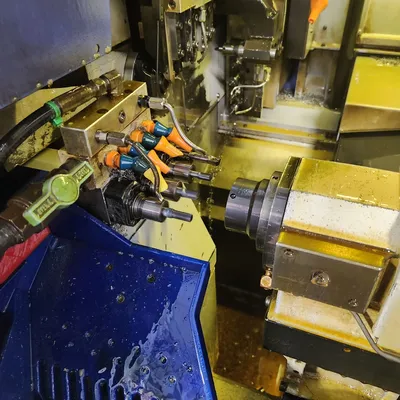

Tool Stations
Gang Tool Post: 6 Turning Tools / 4 Power-Driven Tool Stations
4-Spindle Sleeve Holder: 4 Front Working / 4 Back Working
Drilling Capacity (4-Spindle Sleeve / Power Driven): 0.39"/0.31"
Tapping Capacity (4-Spindle Sleeve / Power Driven): M8 x 1.25 / M6 x 1.0
Milling Capacity: 0.39"

Back Working Attachment
Chucking Diameter: 3/4"
Pick-Up Part Length: 3.14"
Part Protection Length: 1.18"
Sub Spindle Speed: 8,000 RPM
Sub Spindle Motor: 2.9 HP
Number of Tool Stations: 4 Stationary or Power Driven Tools
Drilling Capacity (Stationary/Power Driven): 0.31" / 0.19"
Tapping Capacity (Stationary/Power Driven): M8 x 1.25 / M4 x 0.7

Machine Dimensions: 86" x 47" x 66"
Machine Weight: 4,850 lbs
