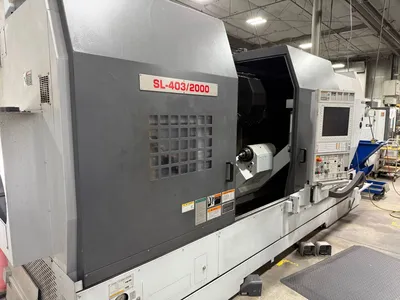

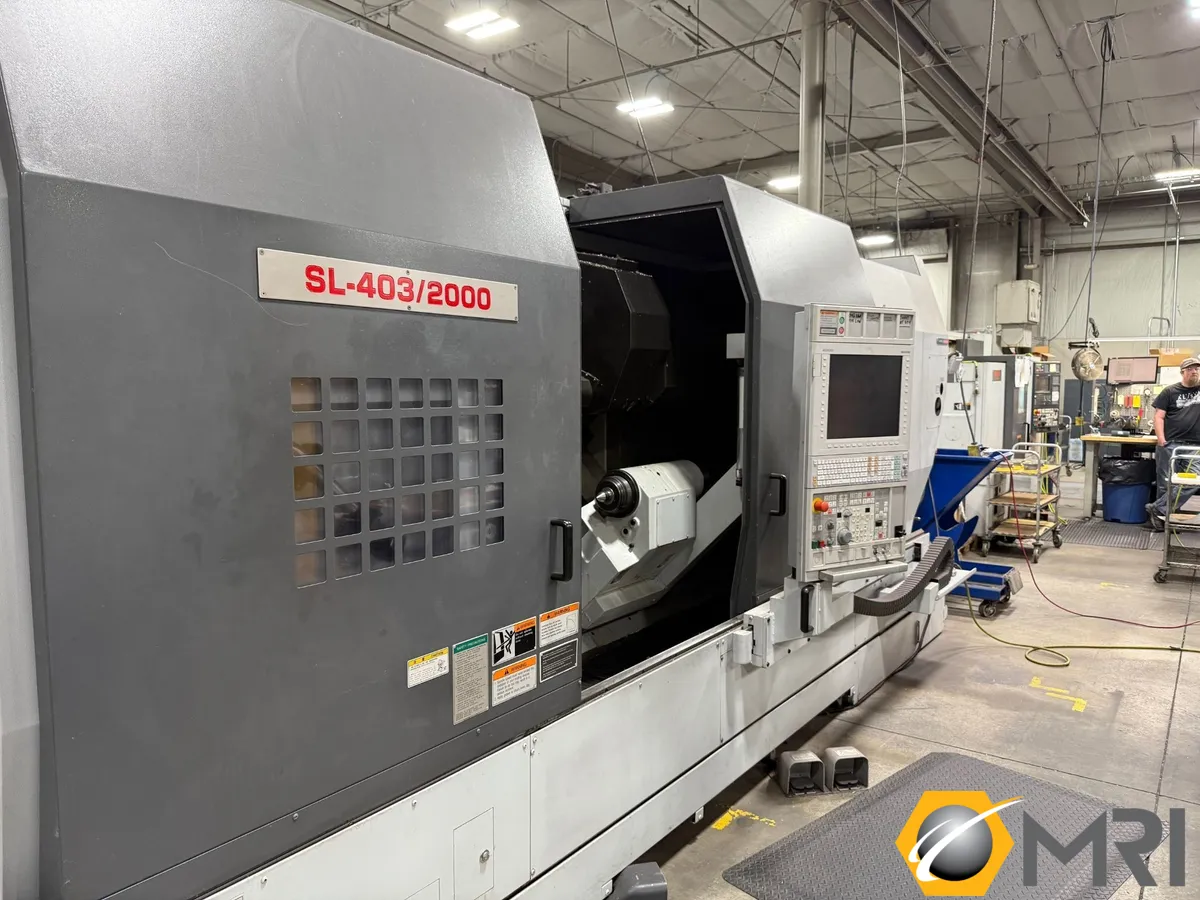

2014 DMG MORI SL-403BMC /2000 CNC LATHE | AG 7612044
ConditionUsed
1 available
DMG MORIFANUC-321B MAPPS4 CONTROLS
PARTSTORAGE 32 KBYTE SOM, USER MEMORY AREA BUILT-IN MAPPS 6GB
PROGRAMMABLE TYPEZ-AXISTRAVEL TAILSTOCK
HIGH-PRESSURE COOLANT 635W/1040W
IN-MACHINE TOOLPRESETTER
SPINDLE OVERRIDE FOR THREAD,TOOL LIFE MANAGEMENT
MAPPS MTCONNECT ADAPTER PROVIDED

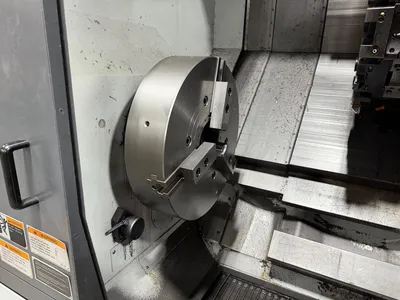

24"B24KITAGAWA 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR, COOLANTTANK & PUMPS

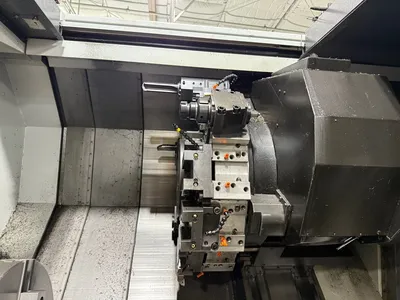

(5)LIVE, (3) STATIC TURNING HOLDER, (3)BORING BAR HOLDERS
SWING OVER BED 36.8"
SWING OVER CROSS SLIDE 29.1"
DISTANCE BETWEEN CENTERS 91.5"
MAXTURNING DIAMTER 24.4"
MAXTURNING LENGTH 84.9"
X-AXISTRAVEL 14.7"
Z-AXIS TRAVE-L 82.7"
MAX SPINDLE SPEED 2400RPM
NUMBER OF SPINDLE SPEEDRANGES 2
TYPE OF SPINDLE NOSE JIS-A2-11
THROUGH-SPINDLE HOLE DIAMETER 5.1"
MINSPINDLEINDEXING ANGLE 0-001 DEG
NUMBER OFTOOLSTATIONS 12
SHANK HEIGHTFOR SQUARE TOOL 1.114"
SHANK DIAMETER FOR BORING BAR 2.112"
TURRETINDEXING TIME 0-4 SEC
MAX ROTARY TOOLSPINDLE SPEED 3000RPM
RAPID TRAVERSE X/Z/C 787.4 /944-9156
TAILSTOCK TRAVEL 78.7"
TAILSTOCK SPINDLE DIAMETER 5-9"
TAPER HOLE OFTAILSTOCK SPINDLE MT#5,BILT-IN
SPINDLE DRIVE MOTOR 50HP
ROTARY TOOLSPINDLE DRIVE MOTOR 12 HP
ELECTRICAL POWER SUPPLY 52-3KVA
COOLANT TANK CAPACITY 87.1 GAL
MACHINE DIMENSIONS 243" X101" X100" TALL
MACHINEWEIGHT 33,000LBS
