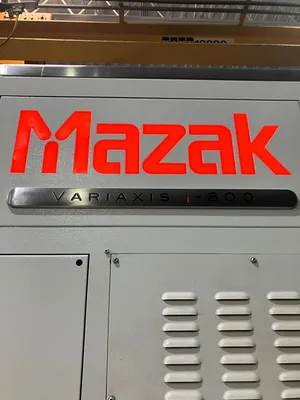

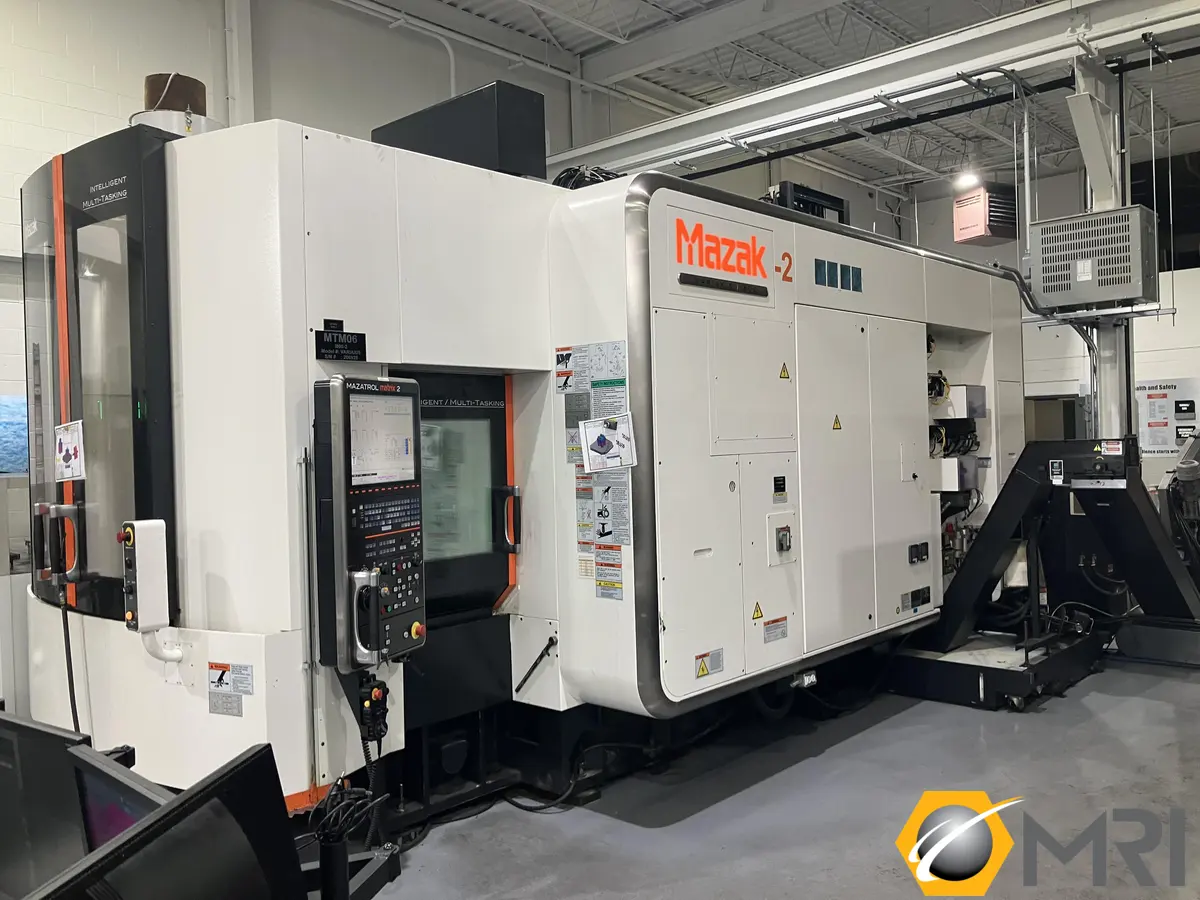

2014 MAZAK VARIAXIS I-800 5 AXIS VERTICAL MACHINING CENTER | IH 7612056

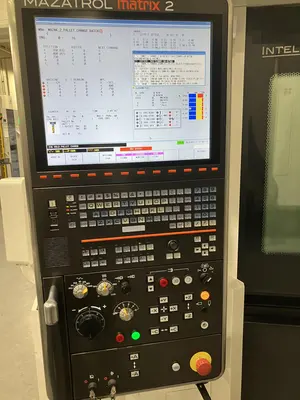

VERTICAL MACHINING CENTER WITH 19” COLOR LCD,
5-AXIS MACHINING PACKAGE TRUNION TYPE DUAL SUPPORT BEARING
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION,
COOLERS FOR BALL SCREW (X,Y,Z-AXIS),
COOLANT THROUGH SPINDLE SYSTEM (5KG, 71 PSI),
SPINDLE SPEED 10,000 RPM
CAT 50 TAPER
120 TOOL DOUBLE MAGAZINE (60 X 2)
MAX WORKPIECE SIZE: 28.74” DIA X 19.69” HEIGHT
X-AXIS TRAVEL (SADDLES LONGITUDINAL MOVEMENT): 28.74”
Y-AXIS TRAVEL (COLUMN’S TRANSVERSE MOVEMENT): 33.46”
Z-AXIS TRAVEL (SPINDLE HEAD’S VERTICAL MOVEMENT): 22.05”
A-AXIS TRAVEL (TABLE TILTING)(INDEXING IN UNITS OF 0.0001DEG): -120° TO +30° (AXIS CONTROL)
C-AXIS TRAVEL (TABLE ROTATION)[INDEXING IN UNITS OF 0.0001DEG): ±360°(AXIS CONTROL)
DISTANCE BETWEEN SPINDLE NOSE AND TOP OF THE TABLE: 9.06” TO 31.10”
(POSITIONED HORIZONTALLY)
DISTANCE BETWEEN SPINDLE NOSE AND CENTER OF THE TABLE: 7.09” TO 29.13”
(POSITIONED VERTICALLY)
MAX. LOAD ON THE TABLE (UNIFORMLY DISTRIBUTED LOAD): 1102 LBS
MOTOR OUTPUT: 50 / 40 HP
RAPID TRAVERSE X/Y/Z: 1653 IPM
A/C DEG/MIN: 18000
CUTTING FEED X/Y/Z: 1653 IPM
A/C DEG/MIN: 9000
NUMBER OF AXES CONTROLLED SIMULTANEOUSLY: 5
PALLET SIZE: 31" X 31"
TABLE SURFACE HEIGHT: 40.16”
MAGAZINE CAPACITY: 120
MAX. TOOL DIAMETER WITH ADJACENT POCKETS OCCUPIED: 4.92” / 8.27”
MAX. TOOL LENGTH: 15.75”
MACHINE SIZE HEIGHT: 141”
MACHINE SIZE WIDTH: 140”
MACHINE SIZE DEPTH: 235”
WEIGHT: 46,297 LBS
