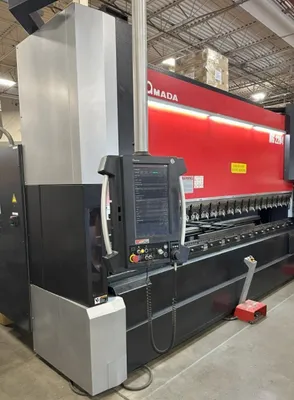

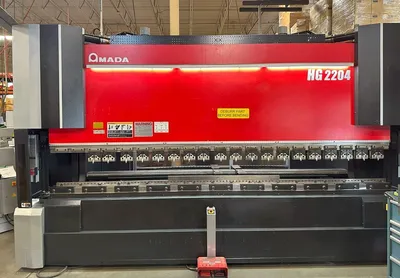

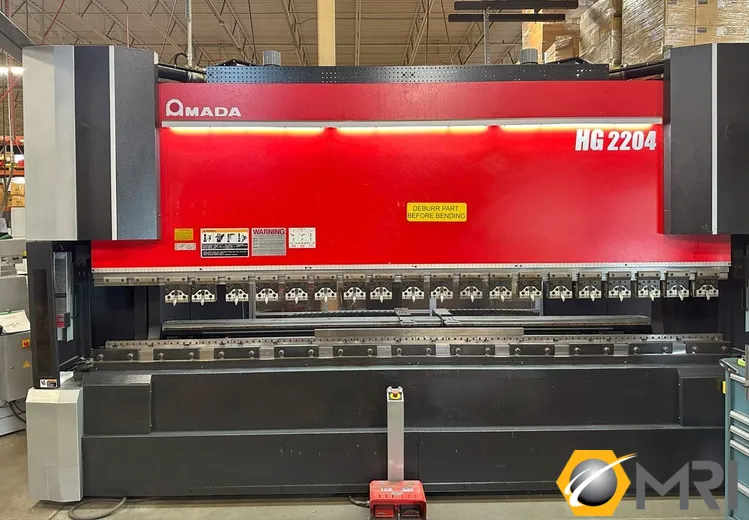

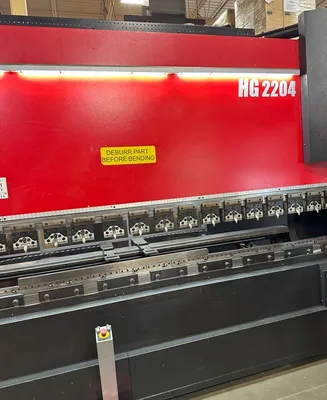

AMADA HG-2204 CNC PRESS BRAKE, NEW: 2016
ConditionUsed
1 available
AMADA HG-2204 CNC PRESS BRAKE, NEW: 2016
MODEL 15

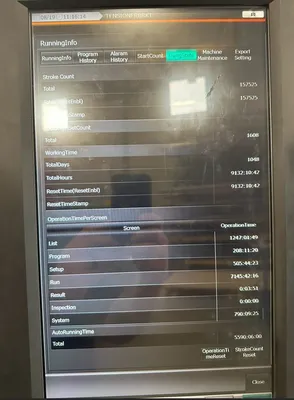

AMADA AMNC3i 11-AXIS CONTROL
18.5" LCD MULTI TOUCH DISPLAYCONTROL MOUNTED HANDWHEEL
6-AXIS BACK-GAUGE
DUAL FOOT PEDALS
BARCODE READER
TDS - THICKNESS DETECTION SYSTEM
AUTOMATIC PROGRAM CREATION
ONE TOUCH PUNCH HOLDERS
BEND INDICATOR TECHNOLOGY
PROGRAMMABLE RAM TILT
CROWNING
TONNAGE: 247
MAX. BENDING LENGTH: 169.3"
DISTANCE BETWEEN FRAMES: 148"
STROKE: 9.8"
OPEN HEIGHT: 20.5"
THROAT DEPTH: 17.7"
TABLE HEIGHT: 37.4"
SPEEDS:
- APPROACH: 8.7 IPS
- FORMING: 0.79 IPS
- RETURN: 9.8 IPS
RAM POSITIONING REPEATABILITY: (+/-) 0.00004"
NUMBER OF CYLINDERS: 3
BACK-GAUGE RANGE: 27.5"
BACK-GAUGE REPEATABILITY: (+/-) 0.0004"
NOMINAL SUPPLY CURRENT: 100 A
PROVIDED POWER: 36 kVA
MACHINE DIMENSIONS: 209"(L) x 95"(W) X 127"(H)
MACHINE WEIGHT: 44,100 LBS
