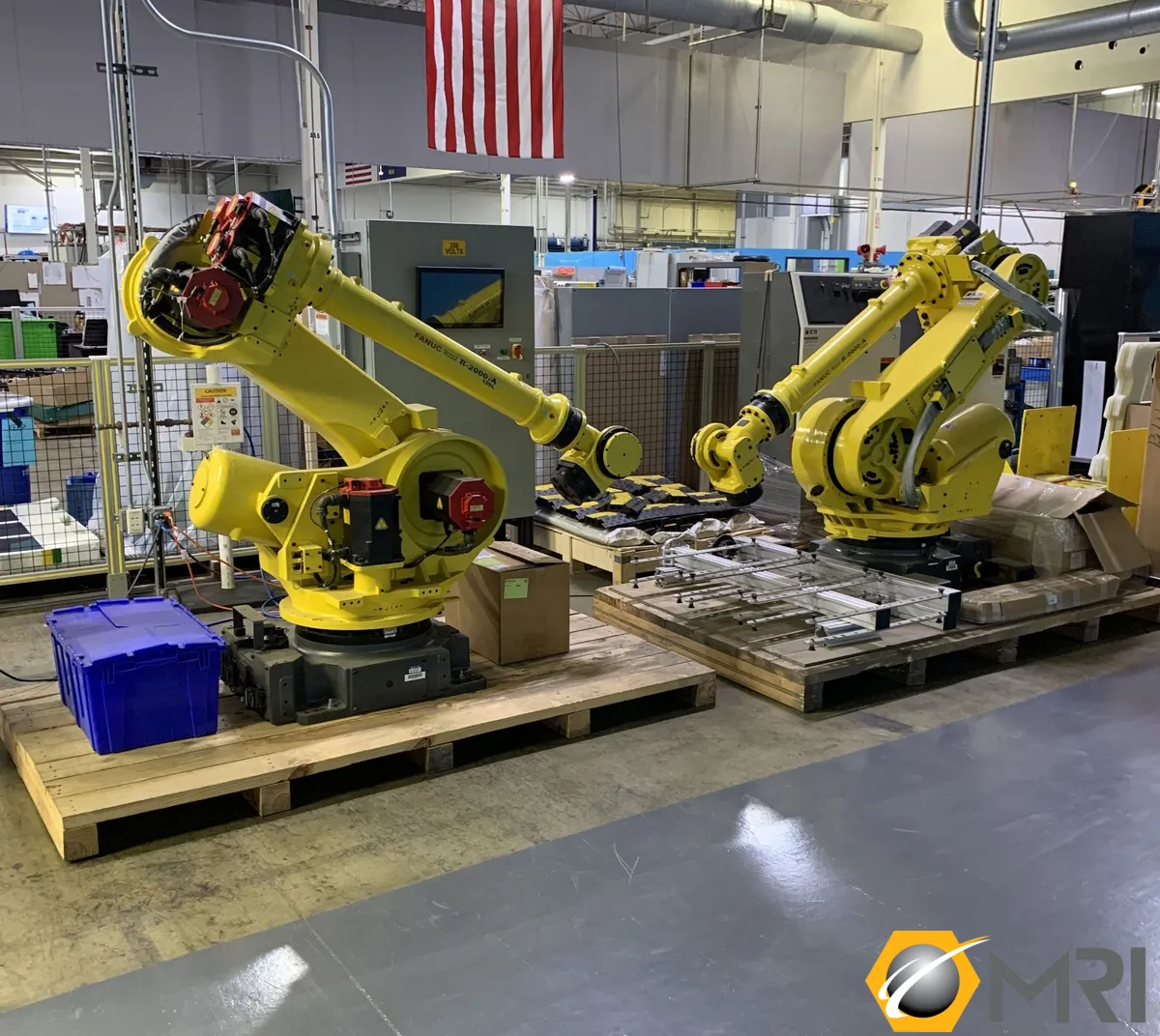

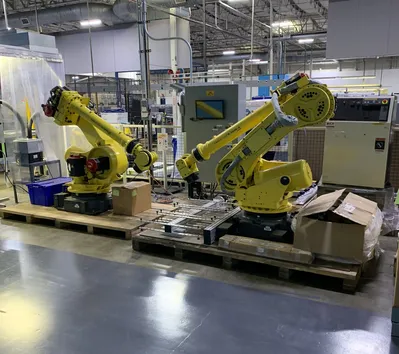

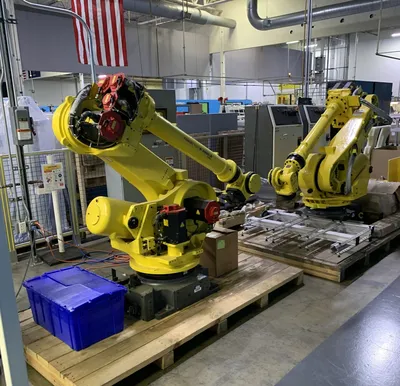

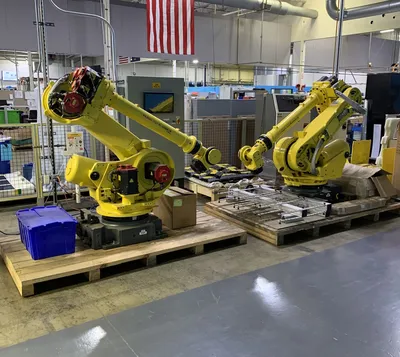

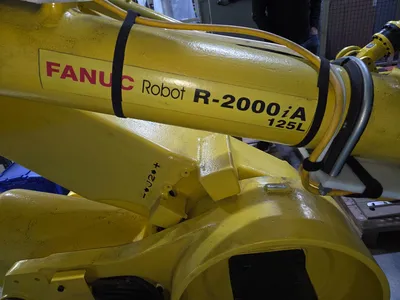

2004 FANUC R-2000iA/125L INDUSTRIAL MANUFACTURING ROBOT | IH 7612076

PAYLOAD: 275 LBS
NUMBER OF AXES: 6
REACH: 118"
REPEATABILITY: 0.0787"
STRUCTURE: ARTICULATED
MOUNTING: FLOOR
WEIGHT: 2,712 LBS
AXIS MOTION SPEEDS:
- J1: 105°/S (1.83 RAD/S)
- J2: 105°/S (1.83 RAD/S)
- J3: 105°/S (1.83 RAD/S)
- J4: 170°/S (2.97 RAD/S)
- J5: 170°/S (2.97 RAD/S)
- J6: 260°/S (4.54 RAD/S)
AXIS MOTION RANGE:
- J1: ±360°
- J2: ±135°
- J3: ±352°
- J4: ±720°
- J5: ±250°
- J6: ±720°
ROBOT APPLICATIONS: MACHINE LOADING, MACHINE TENDING, MATERIAL HANDLING, ASSEMBLY,
CUTTING, DEBURRING, DRILLING, GRINDING, POLISHING AND SANDING.
