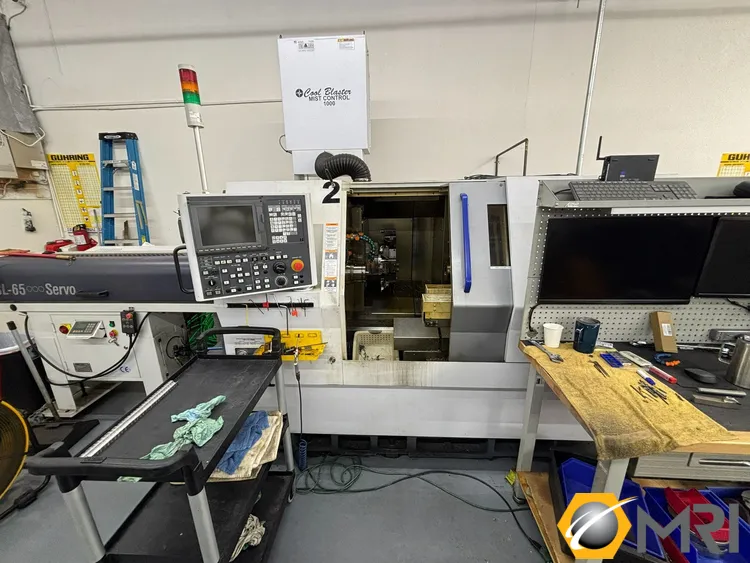

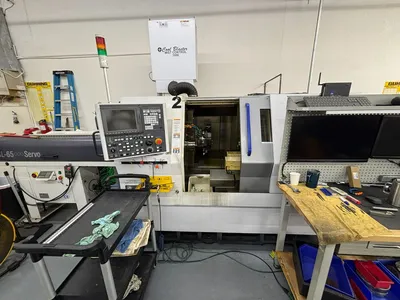

Citizen Miyano BNX51MSY CNC Turning Center, New 2019
ConditionUsed
1 available

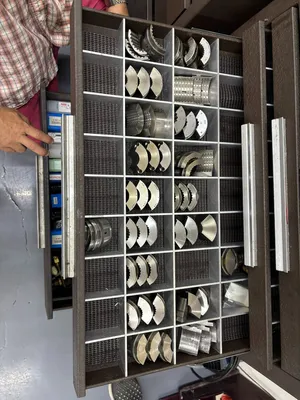

2” bar capacity; Subspindle, 12-station turret (all positions live capable). Main feature is the Cincom’s subspindle superimposition technology, Edge Short Loader, All tooling and accessories included----
* ABSOLUTELY BEAUTIFUL *

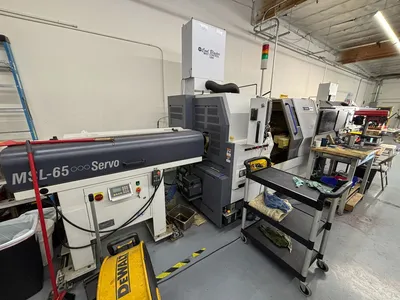

Edge Technologies MSL-65 Short Loader

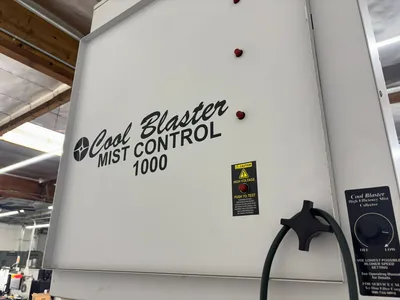

Cool Blaster Mist Control 1000

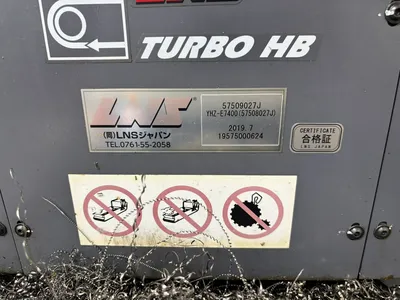

Chip Conveyor

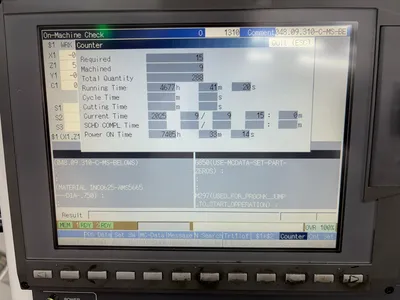

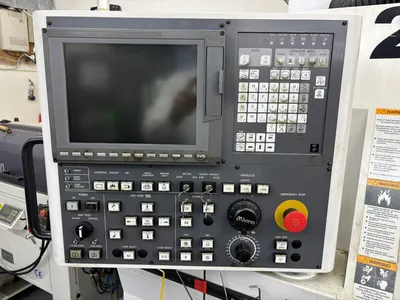

CNC Control: Mitsubishi M70V
# Axis: 7
Swing: 6.49"
Max Turning Length: 5.9"
Turning Diameter: 2"
X Axis Travel: 6.49"
X2 Travel: 3.38"
Y-Axis Travel: 8.14 ± 1.57
Z Axis Travel: 11.81"
Z2 Travel: 21.77"
Spindle Speed: 5,000 rpm
Main Motor: 20 hp

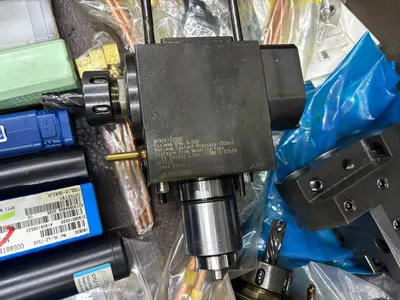

Live Tooling: capable in all 12 turret positions
Live Tooling Speed: 6,000 rpm
Live Tooling Motor: 5.3 hp
Y Axis

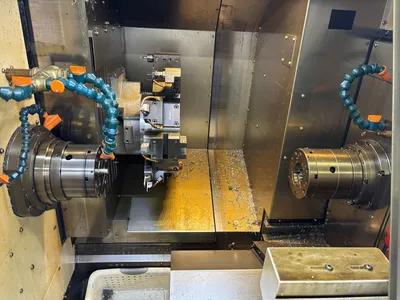

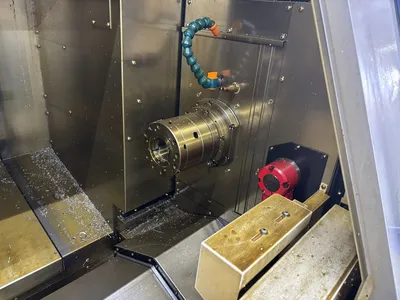

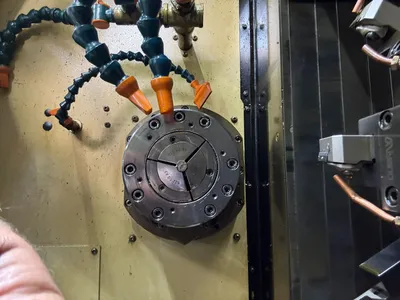

Sub Spindle
Sub Spindle Speed: 5,000 rpm

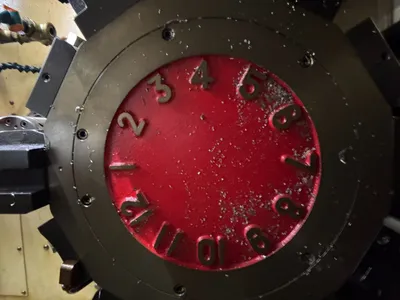

Turret Capacity: 12
Machine Dimensions: 153.8"L x 61.45"W x 43.30"
Machine Weight: 12,000 pounds
