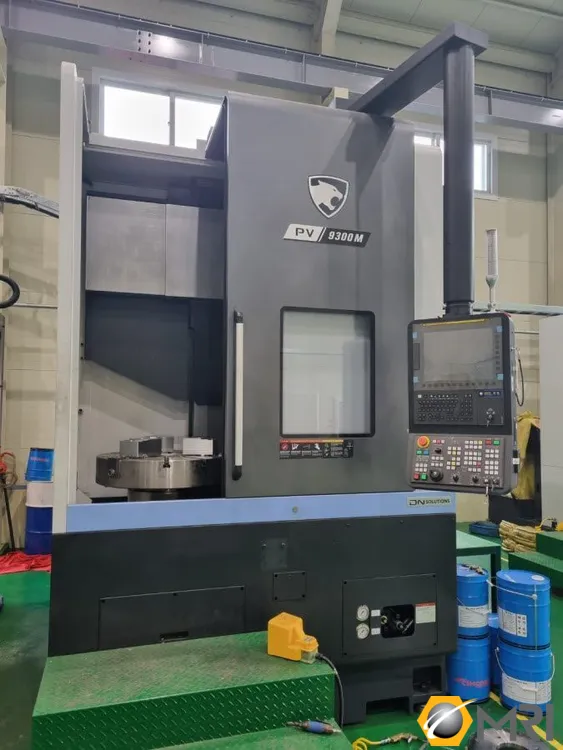

2024 DN SOLUTIONS PV 9300M CNC VERTICAL TURNING LATHE WITH MILLING | IH 7612094
ConditionUsed
1 available

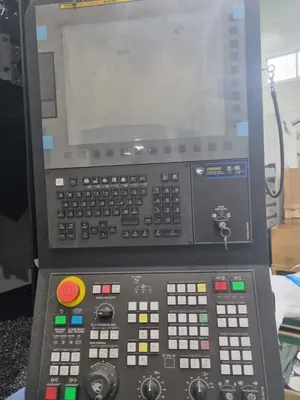

FANUC SERIES I CNC COLOR CONTROL

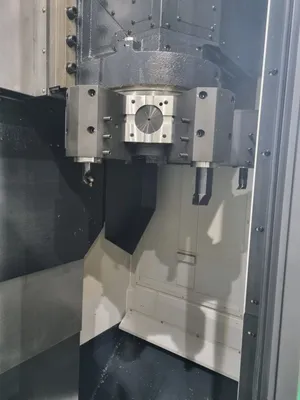

(3) I.D. MILLING HEADS
.001 FULL C-AXIS
RENISHAW REMOVABLE TOOL SETTER
ETHERNET AND MEMORY CARD INPUT/OUTPUT

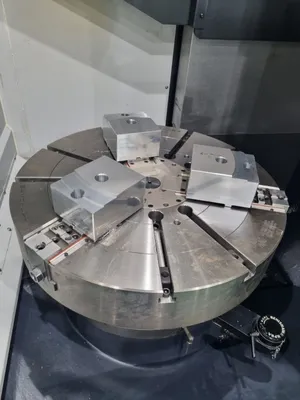

32 3/4 JAW COMBINATION HYDRAULIC CHUCK PACKAGE
MANUALS

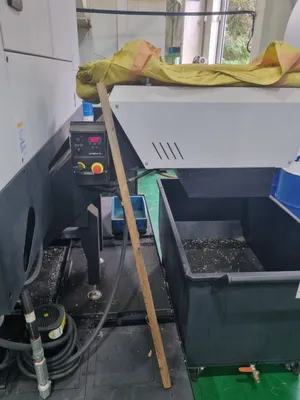

CHIP CONVEYOR
TABLE DIAMETER 32"
SWING DIAMETER 39.4"
TURNING HEIGHT 31.5"
SPINDLE NOSE A2 -15
TABLE SPEED 1,800 RPM
MAIN MOTOR 60 hp
NUMBER OF RANGES 2
X - AXIS TRAVEL 19.1"
Z - AXIS TRAVEL 35"
RAPID TRAVERSE RATE - X 787 ipm
RAPID TRAVERSE RATE - Z 787 in/min.
C - AXIS INDEXING .001
ROTARY SPINDLE SPEED 4,000 RPM
ROTARY SPINDLE HORSEPOWER 30.8 hp

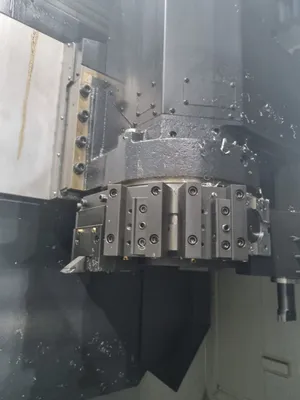

TURRET CONFIGURATION 12 station
