AMADA HG-5020 MODEL 15 CNC PRESS BRAKE, NEW: 2018
ConditionUsed
1 available

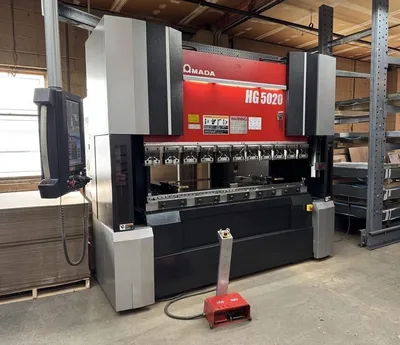

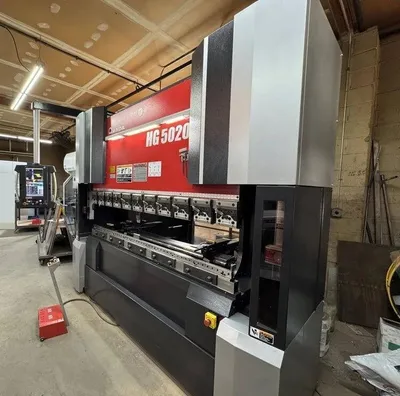

AMADA HG-5020 MODEL 15 CNC PRESS BRAKE, NEW: 2018
AMADA AMNC3i CONTROL

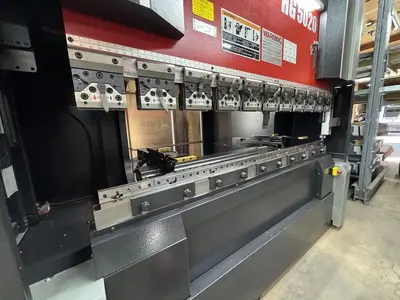

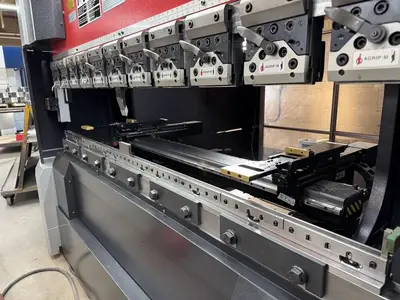

6-AXIS PROGRAMMABLE BACK-GAUGE
L-SHIFT
FOOT SWITCH
FEISLER LASER SAFETY CURTAINS

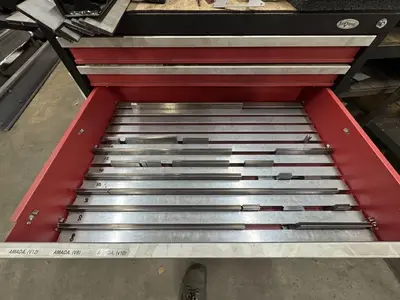

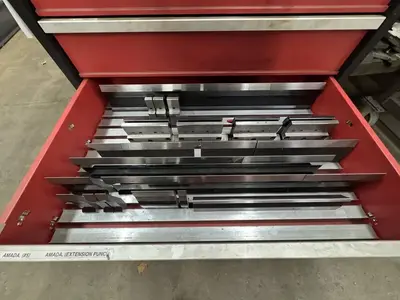

MISC. TOOLING
TONNAGE: 56
MAX. BENDING LENGTH: 84.6"
DISTANCE BETWEEN FRAMES: 66.9"
STROKE LENGTH: 9.8"
OPEN HEIGHT: 20.5
THROAT DEPTH: 17.7"
TABLE HEIGHT: 37.4"
RAM REPEATABILITY: (+/-) 0.00004"
SPEEDS:
- APPROACH: 8.7 IPS
- BENDING: 0.79 IPS
- RETURN: 9.8 IPS
NUMBER OF CYLINDERS: 2
BACK-GAUGE RANGE: 27.5"
BACK-GAUGE SPEEDS:
- L-AXIS: 1,181 IPM
- Y-AXIS: 3,543 IPM
- Z-AXIS: 787 IPM
HYDRAULIC FLUID CAPACITY: 10 GALLONS
NOMINAL SUPPLY CURRENT: 34 A
PROVIDED POWER: 12 kVA
APPROX. WEIGHT: 12,125 LBS
APPROX. MACHINE DIMENSIONS: 121"(L) x 95" (W) x 111"(H)
