CREST COC4-1014 AQUEOUS ULTRASONIC CLEANING SYSTEM, 6-STATION, NEW 2011
Sold

CREST COC4-1014 AQUEOUS ULTRASONIC CLEANING SYSTEM, 6-STATION, NEW 2011

Sell Your CREST COC4-1016
Ultrasonic Washers and Cleaning Systems
Manufacturer:
CREST
Model:
COC4-1016
Year:
2011
Stock #:
7612104
Serial #:
0910-M4817

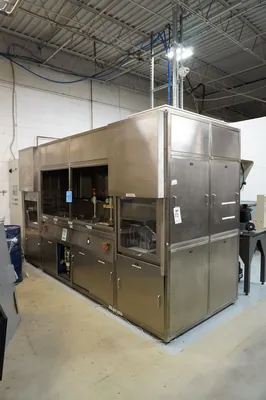

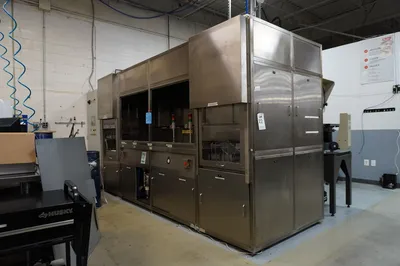

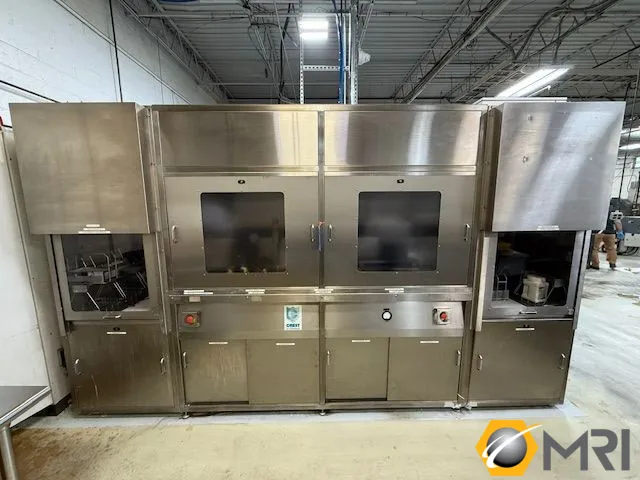

Crest COC4-1014 ultrasonic cleaning system, 6 stations with robotic transfer and fully enclosed. Built 2010/delivered 2011; Features include 4 tanks, HEPA filters, and a high-efficiency hot-air dryer.

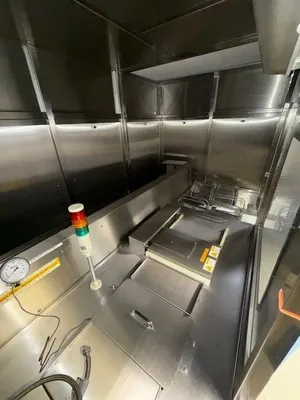

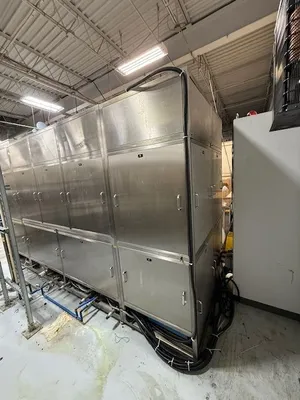

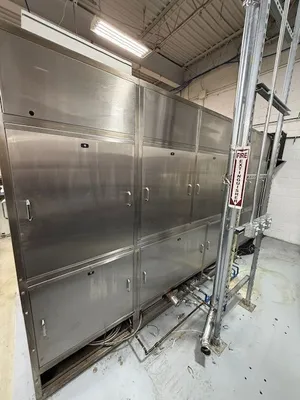

FULL ENCLOSURE
2 HEPA FILTERS FOR ENCLOSURE, UNLOAD AND WET TANKS

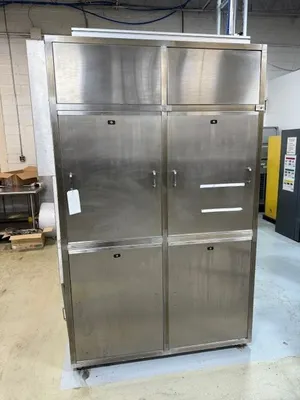

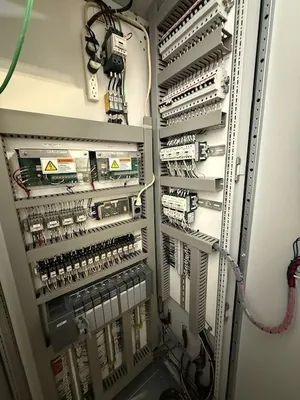

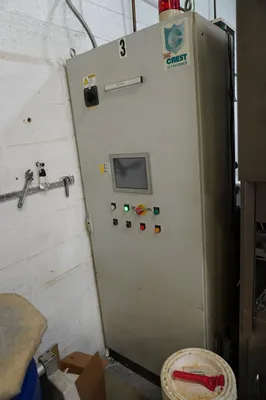

CONTROL CABINET WITH AB PANELVIEW 550 PLC CONTROL

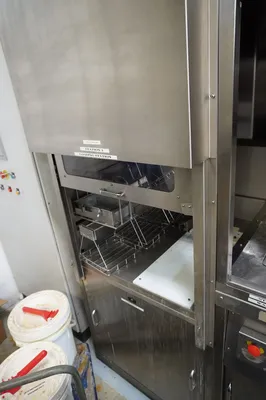

BASKET ROBOTIC TRANSFER, Mdl CTS250 (25 lbs LOAD MAX)

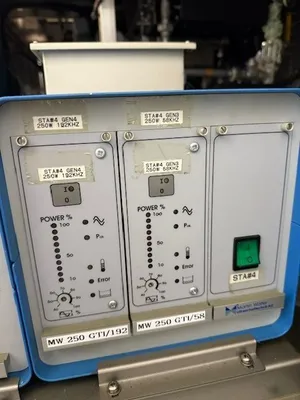

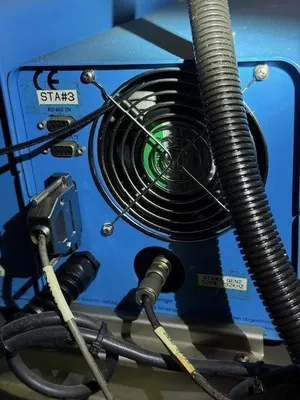

Ultrasonics in 3 tanks:

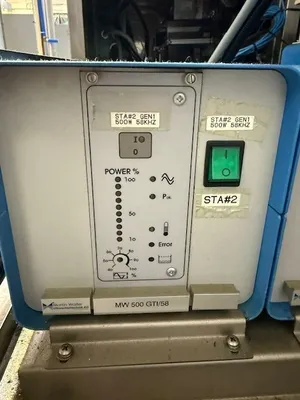

- Tank 1, Wash: 58khz/ 500w

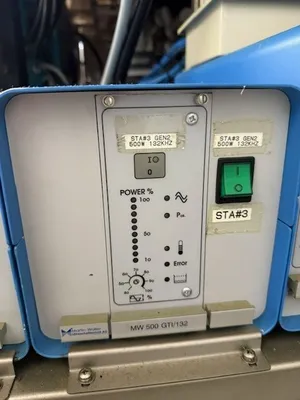

- Tank 2, Rinse: 132khz/500

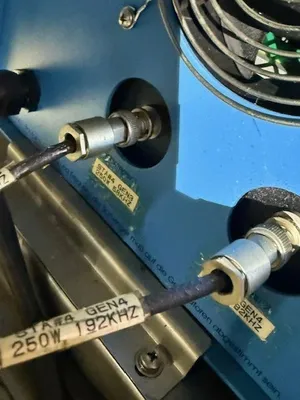

- Tank 3, Rinse: 58/192khz/ 250w ea

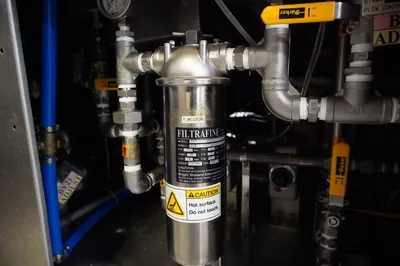

FILTRATION SYSTEM

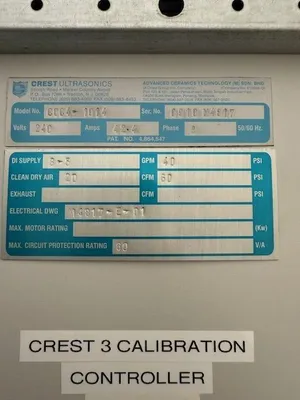

SET UP FOR 240V / 3ph / 60 / 4A

ORIGINAL SET UP:
DI WATER: 1-3GPM (4-6GPM ON DEMAND) AT 1-2 Mohn, 35 psi
CAD SUPPLY: 60-70 CFM @ 60PSI

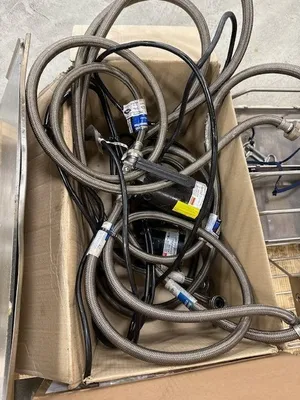

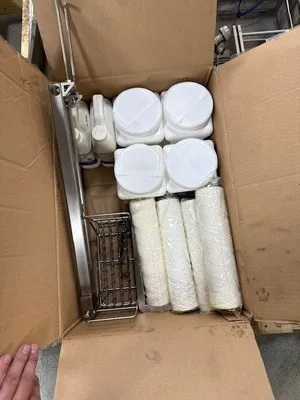

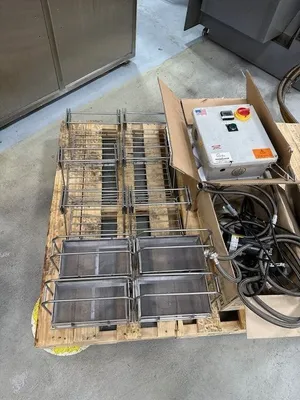

Additional items (see photos)
- fillers
- misc baskets
-

Tank-W10"254 mm
Tank-L14"355.6 mm
Tank-H14"355.6 mm
Number of Tanks44
Transfer System?YesYes
ControlCNC (Allen-Bradely Panelview 550)CNC (Allen-Bradely Panelview 550)
Dimensions149"W X 55"D X 88"H W/O HEPA AND 99"H WITH HEPA149"W X 55"D X 88"H W/O HEPA AND 99"H WITH HEPA
Weight5000 LBS (EST)5000 LBS (EST)

General Specifications As Per Brochure (Buyers are responsible for confirming all details below)
ALL INFORMATION TO BE VERIFIED

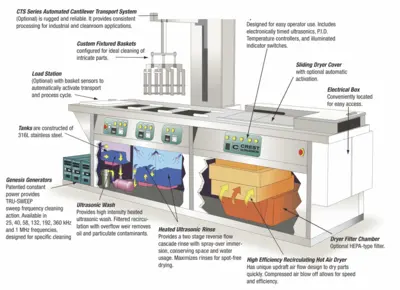

See schematics attached

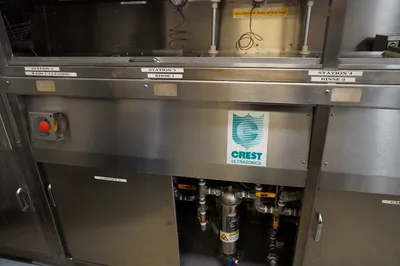

6-Stations:

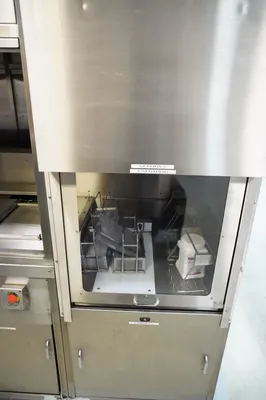

1. Load
2. Wash station 40 Khz Ultrasonic
3. Rinse station; 40KhZ Ultraxonic
4. Rinse station ; 40 Khz
5. Dry station
6. Unload

Cleaning fluid used in this system is various detergents in the wash tank and deionized water in the
following two rinse stations.
The tank sizes for all four stations are 10" wide x 14" long (F-B) x 10"D

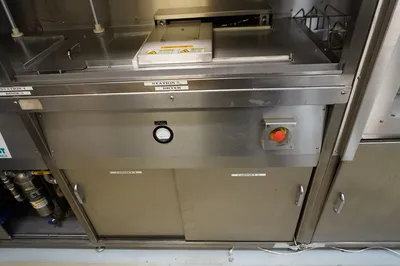

The drying tank uses a High Efficiency Re-circulating Hot Air Dryer.

Dimensions:
The length of the main cabinet is estimated at
127" x 38" x 44" (Robot o/a height is about 84" and the enclosure is approx 94")

Electrics are expected to be 240V / 3 / 60 / 42A

Est wt: 4500-5000 #
Est dims: 149"W X 55"D X 88"H W/O HEPA AND 99"H WITH HEPA
Crest Ultrasonic can supply PARTS AND SERVICE

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
