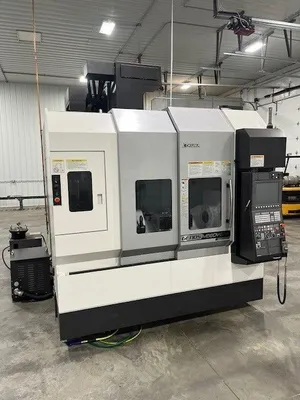

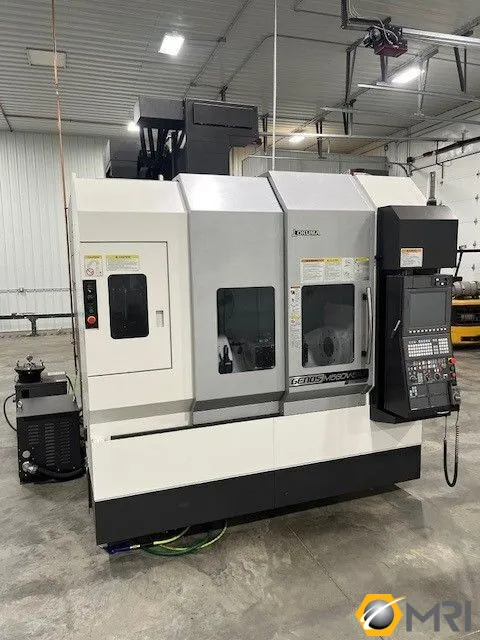

2023 OKUMA GENOS M560-V 5 AXIS VERTICAL MACHINING CENTER

Table Size......................ø500 (19.69)
Max. Load Capacity..............400 (880)
Max Work Size...................ø27.56" x 19.69"
Table Surface to Spindle Nose...6.30" to 22.05"
Floor to Table Top..............42.91"
X-Axis Travel...................41.34"
Y-Axis Travel...................22.05"
Z-Axis Travel...................18.11"
A-Axis Travel...................+20 to -110 Degree
C-Axis Travel...................360 Degree
Spindle Motor...................30 HP
Spindle Taper...................CAT-40 Big Plus
Spindle Ranges..................Infinitely variable
Spindle Speed...................15,000 RPM
Rapids (X,Y/Z)..................1,575, 1,575 / 1,260 IPM
Rapids (A,C)....................14,400, 18,000 Degree Per Minute
Cutting Feedrate (X,Y,Z)........1,260 IPM
Number of Tools.................60 Station ATC
Max. Tool Diameter..............3.54" - 4.92"
Max. Tool Length................11.81"
Max. Tool Weight................17.6 LBS
Machine Dimensions..............99.02" x 147.64" x 119.88"
Machine Weight..................22,660 LBS

Equipped With

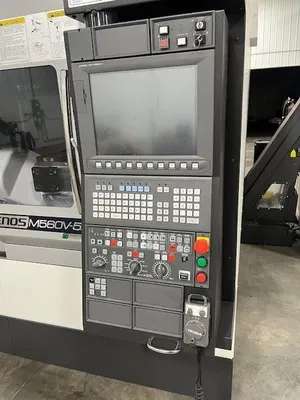

OSP 300M CONTROL
300 PSI COOLANT THROUGH
TOOL BREAKAGE DETECTION AND LENGTH
RENISHAW RMP-60 PROBE

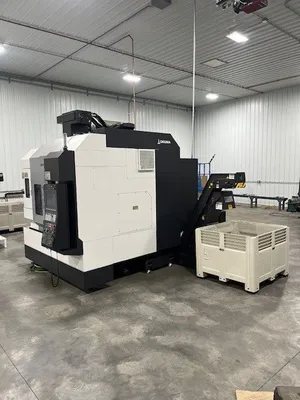

CONSEP 2000 CHIP CONVEYOR
