2014 HAAS ST-20Y CNC Turning Center | AB 7612130
Sold

2014 HAAS ST-20Y CNC Turning Center | AB 7612130

Sell Your HAAS ST-20Y
CNC Lathes (Turning Centers)
Manufacturer:
HAAS
Model:
ST-20Y
Year:
2014
Stock #:
7612130

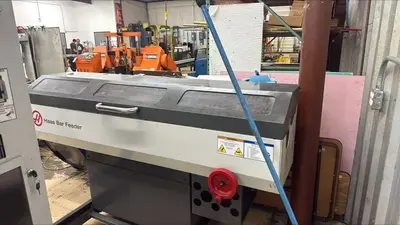

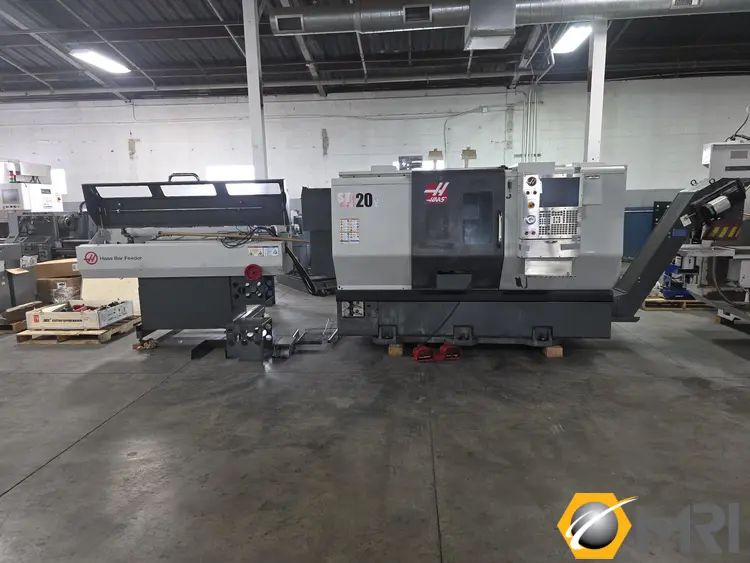

Haas ST-20Y CNC Turning Center, new 2014 Haas Barfeed, Programmable Tailstock, Presetter, Live Tooling, chip conveyor

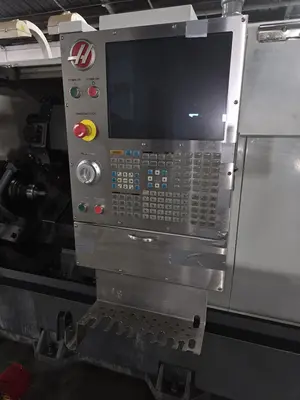

Haas CNC Control

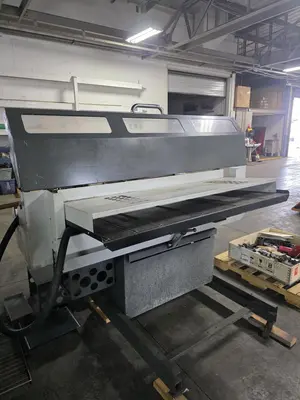

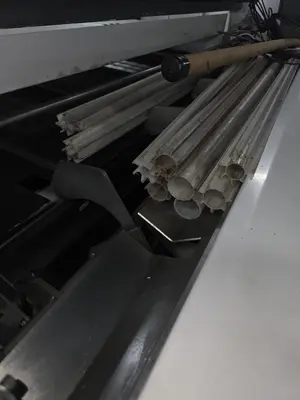

Haas Short Loader, YOM 2015

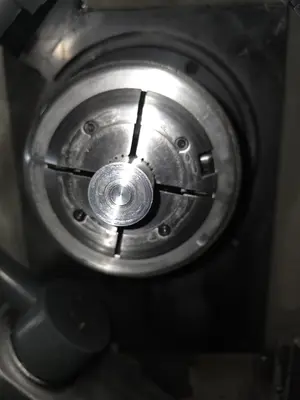

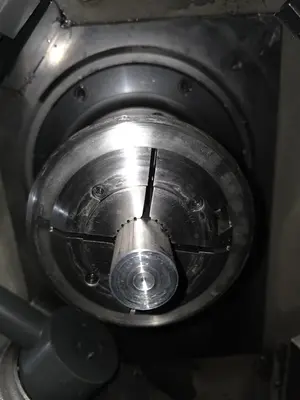

Collet Chuck, S-26
8" 3 Jaw Hydraulic Chuck

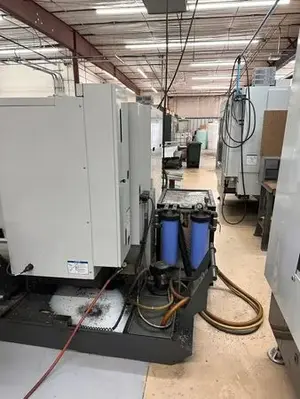

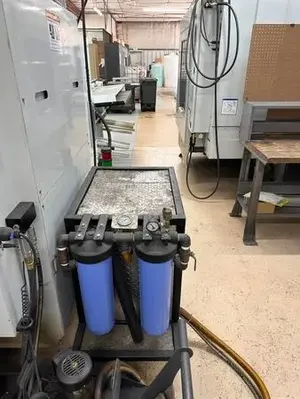

Coolant Filters

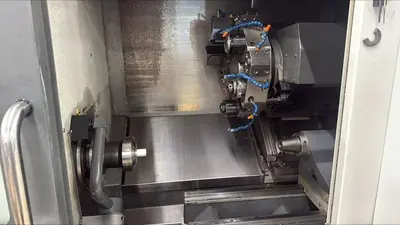

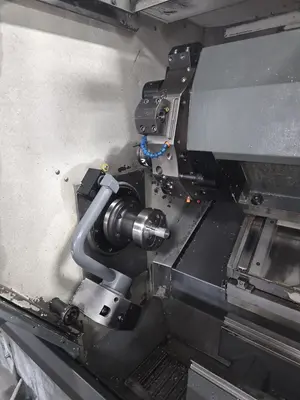

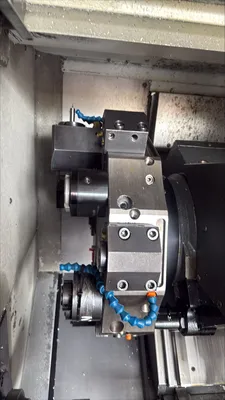

2 Axial Live Tools
3 Radial Live Tools

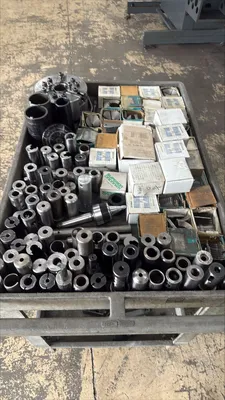

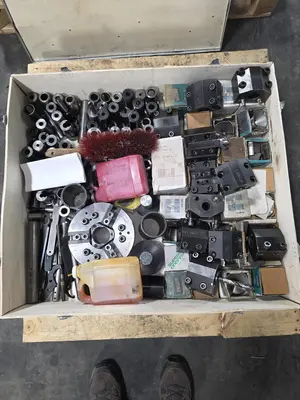

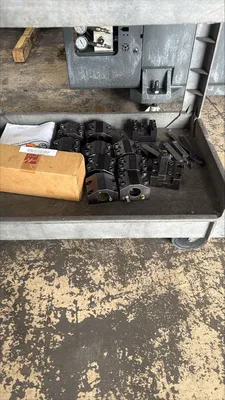

Misc ID/OD Tool Holders

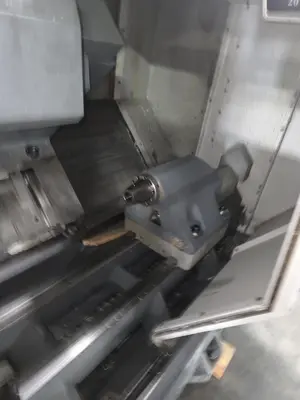

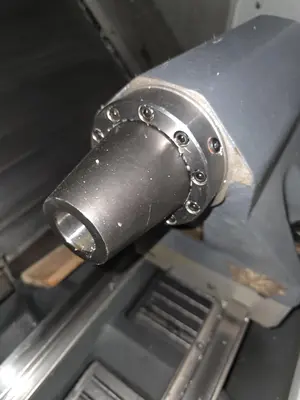

Programmable Tailstock
Tool Presetter
Parts Catcher

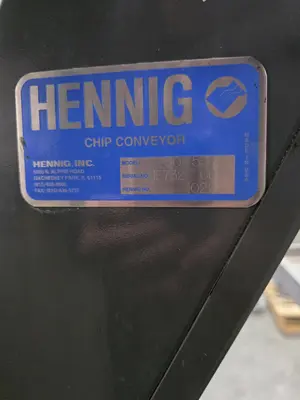

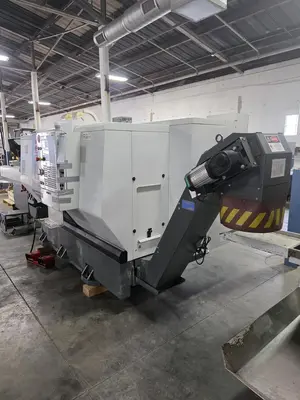

Chip Conveyor
Y-Axis
High Intensity Lighting
Manuals

Swing31.75"806.45 mm
Machining Length21"533.4 mm
# Axis44
Bar Capacity2.5"63.5 mm
Chuck Size8.3"210.82 mm
Distance Between Centers21"533.4 mm
Turning Diameter12"304.8 mm
Power20 hp14.9 kW
Max RPM4,000 RPM4,000 RPM
TailstockYesYes
Live ToolingYesYes
Sub SpindleNoNo
# of Turrets11
Hole Thru2.5 in
ControlCNC (HAAS)CNC (HAAS)
Dimensions143"L X 90"W X 87"H143"L X 90"W X 87"H
Weight10,500 LBS10,500 LBS

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

HAAS CNC Control
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Weight: 10,500 LBS

Machine Dimensions: 143"L X 90"W X 87"H
Machine Weight: 10,500 LBS

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
