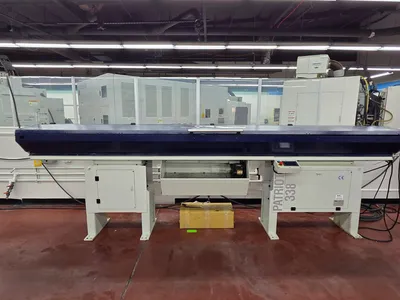

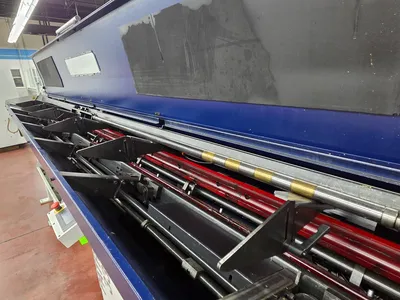

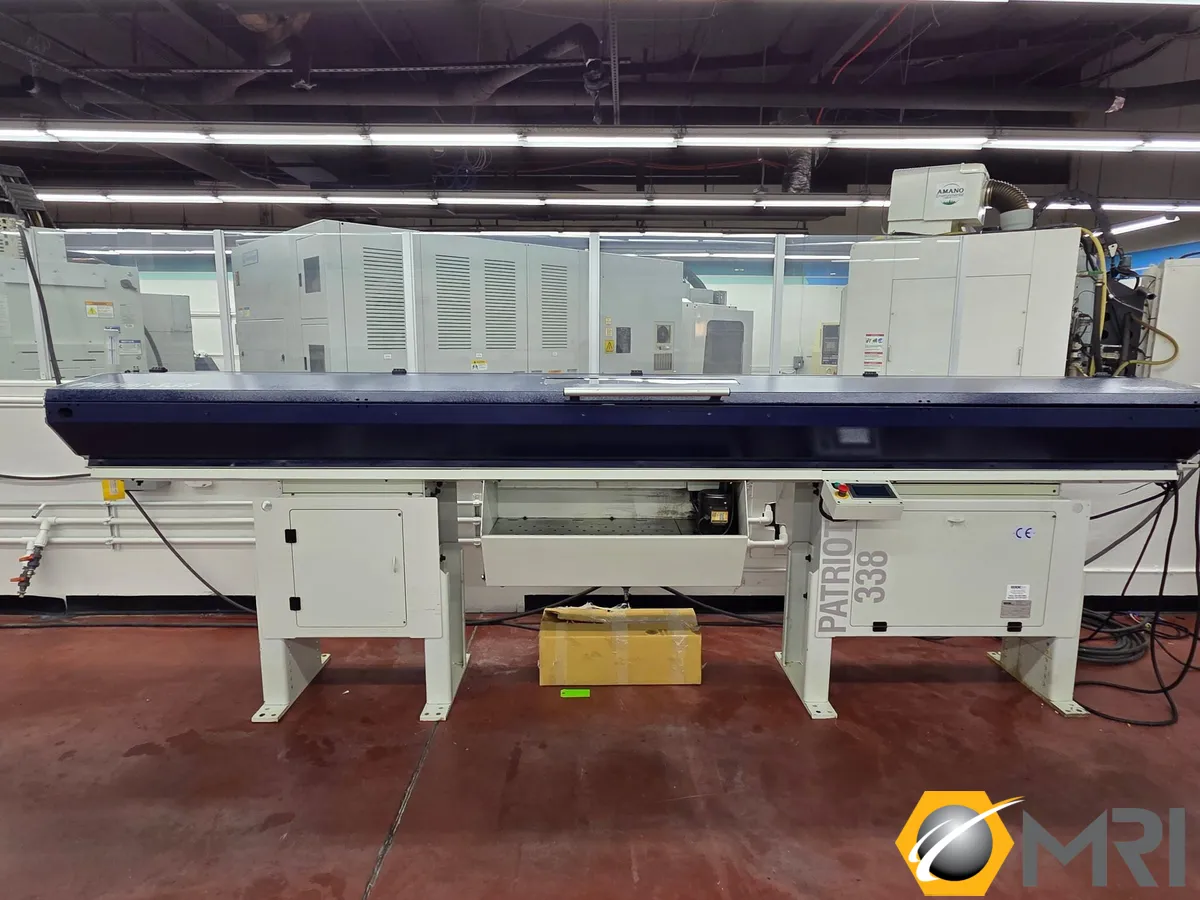

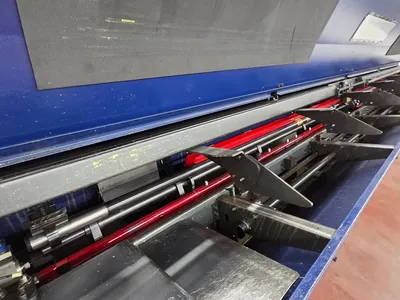

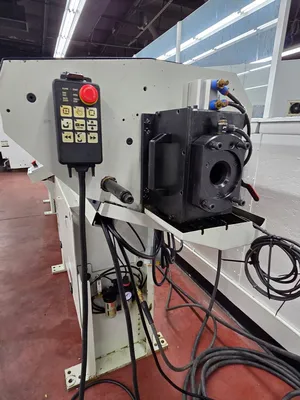

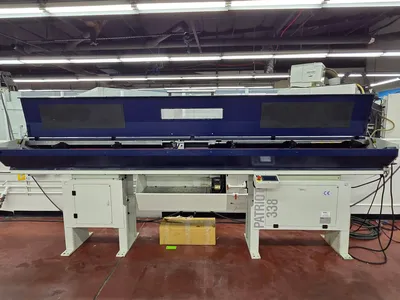

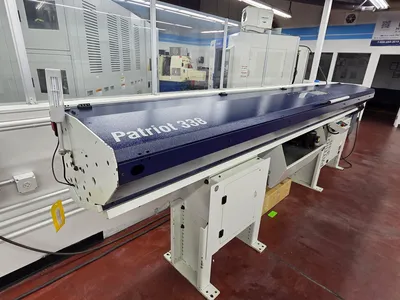

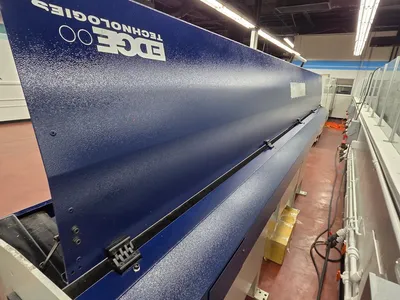

Edge Patriot 338 Magazine Type Bar Feed, New in 2014

Bar Capacity:
No Prep: 3mm to 33.2mm (.118" to 1.312")
With Prep: 3mm to 38 mm (.118" to 1.500")
Maximum Bar Length: 12'6"
Minimum Bar Length: 39.4"
Maximum Remnant Length: 16"
Magazine Rack Capacity: 12"
Bar Loading Cycle: 30 seconds for 12' bar
Material Straightness Specifications: .007"TIR/ft of material
(V Blocks, 3 points equidistant)
Feed Force (pusher torque): max 450N, adjustable
Foward Feed Rate: 750 inches/min max, adjustable
Return Feed Rate: 1000 inches/min max, adjustable
Power Consumption: 1.5kW
Operating Voltage: 230V/60 Hz - 3 phase
Control Voltage: 24V DC
Oil Capacity: 57 liters (15 gallons)
Oil Viscosity: ISO 100cST
Compressed Air Supply: 6 bar (90 psi)
Compressed Air Consumption: approx. 8 liters per loading cycle
Weight (approx): 2,100 lbs
Dimensions (approx.): 16' x 2' x 4.25'
