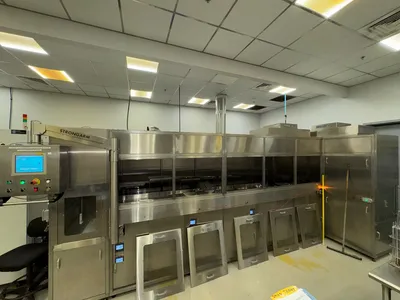

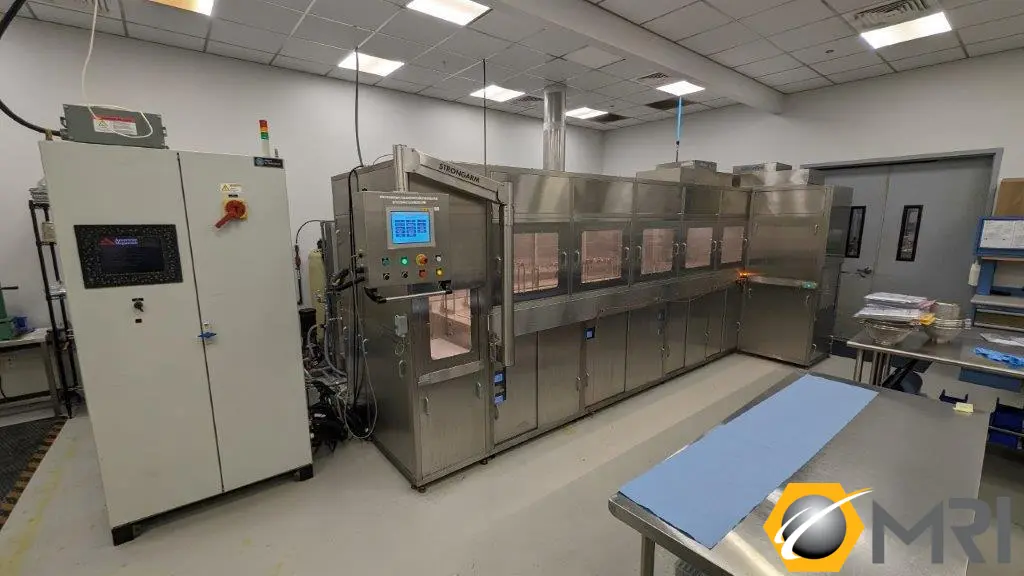

2017 Crest COC8T-1014 10-Station / 8-Tank Automatic Aqueous Ultrasonic Cleaning / Passivation Systems| IH 7612138

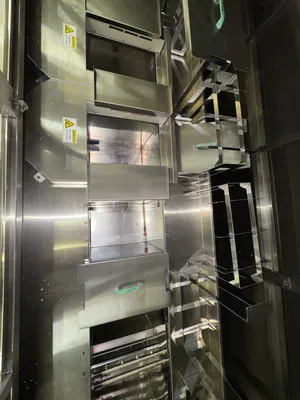

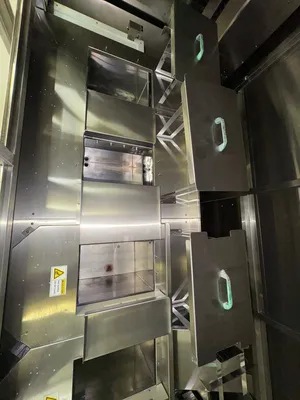

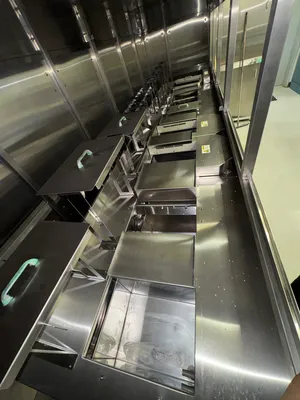

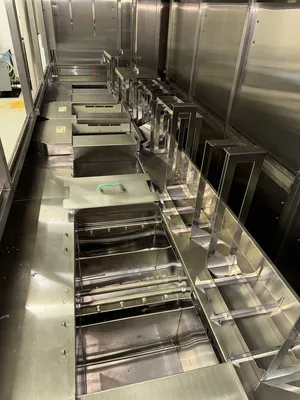

Item Features Tank Dimensions: 10" X 14" X 10" (8”)
[Left to Right X Front to Back X Depth (Liquid Depth)]

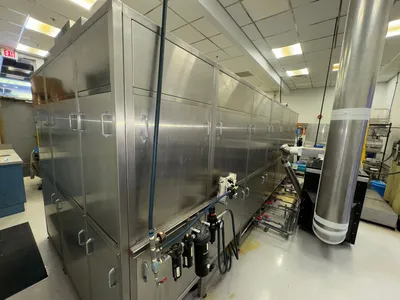

Console Dimensions: 172" X 34" X 38” [Left to Right X Front to Back X Height]

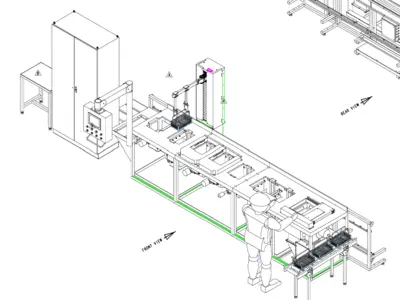

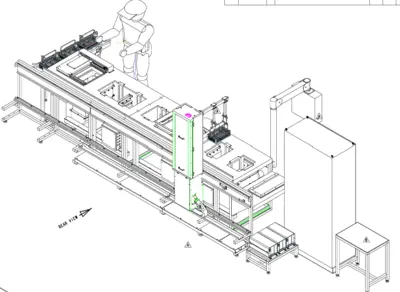

Overall Dimensions with CTS-250: 201" X 41" X 84”
[Left to Right X Front to Back X Height]
Process: Load, Wash, Rinse, Passivation, Passivation, Neutralize,
Rinse, Rinse, Dry, Unload

Ultrasonics are all 132 kHz

Current Process, can be chnaged to fit almost any Acqueous Wash/Passivation process
Station #1: Load
Chemistry: Station #2 and #3: Alkaline Detergent
Station #4: Nitric Acid (30% concentration)
Station #5: Citric Acid
Station #6: Sodium Bicarbonate
Station #7 and #8: Deionized water
Station #9 Dry
Station #10: Unload

The EMO circuit, when activated, shuts off all energy to the system EXCEPT:
• Main Disconnect switch
• Industrial PC
• PC monitor
• Printer
• Barcode Scanner
• Electrical Box Fans
• 1TF 2kVA Transformer
• 120VAC Receptacle
• Main Power indicator
• Noise Filter (2 units)
• 24VDC 10A Power Supply - 1PW
• Safety Relay
• Current Metering Relay
• PLC Power Supply – 2PW
• PLC Power Supply – 3PW

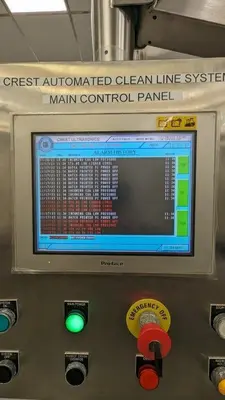

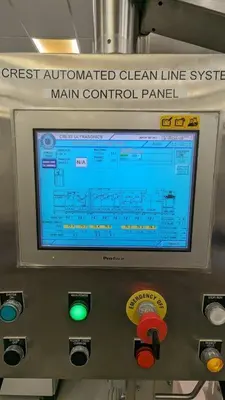

• Proface touch screen
• 24VDC 2.5A Power Supply – 4PW
• Tower light with buzzer

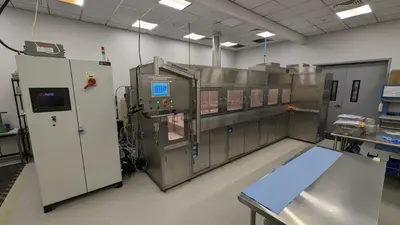

Automation: Model CTS-250
Power Requirement 240Volts/3 phase/60Hz/59Amps
Work Flow: Left to Right

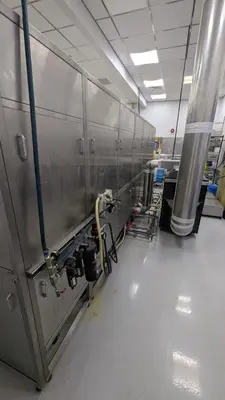

Facilities: 1-3 GPM (4-6 GPM on demand) DIW @ 1-2 Mohm, 30-35 psi and process
temperature, 65-70 CFM CDA @ 30 psi, 1-2 CFM shop air @ 60 psi,
unrestricted floor drain.
