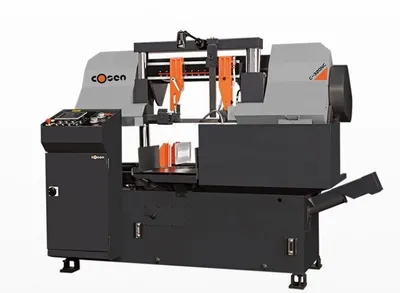

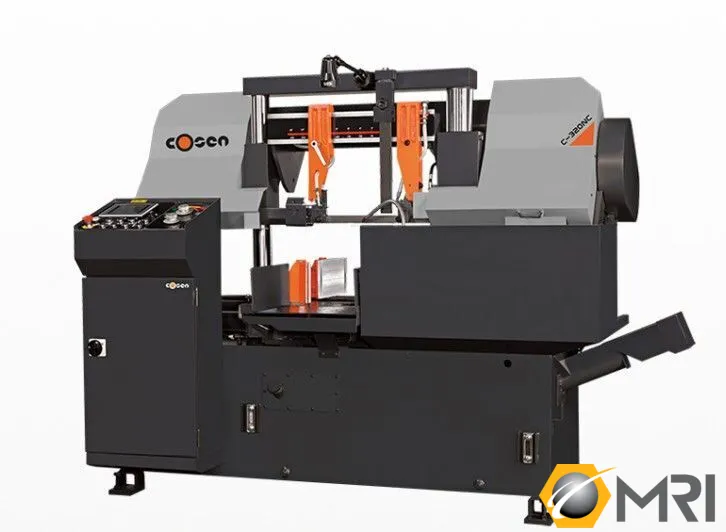

Cosen C320NC CNC Horizontal Double Column Bandsaw | IH 7612141
ConditionNew
1 available
New
Optional Accessories:
Variable Vise Pressure Control System (Part# AHA-10400KIT) $ 1,395.00
Hydraulic Top Clamps (Part# AHC-1900A) $ 3,495.00
Heavy-duty Roller Table 5’ long (Part# RT-5-19PM) Capacity- 4200lbs $ 2,895.00
Heavy-duty Roller Table 6’ 6" long w/vertical Rollers
(Part# 05RC-4470-2M) Capacity- 5500lbs $ 3,595.00
Heavy-duty Roller Table 10’ long (Part# RT-10-19PM) Capacity- 7700lbs $ 4,395.00
Micro Droplet Applicator $ 3,495.00
Buck Boost Transformer for incoming power of 208V or below $ 1,895.00
Voltage Change to 460V, 3 Phase $ 995.00
QR Code Reader (Part# EP-QRCODE-1) $ 3,495.00
1 Gallon Misting Oil $ 99.00
5 Gallon Misting Oil $ 449.00
*pricing on optional accessories valid only when purchased with machine. Pricing may
differ when purchased individually without machine.
Maximum Cutting Capacity-
Round 12.5”
Square 12.5” x 12.5”
Rectangular 12.5” x 14.9”
Bundle Width: 7.4” - 11.8”
w/ optional top clamps Height: 2.7” - 5.5”
Remnant Piece 2”
Blade Variable Speed 53 – 337 fpm
Size 13'11" x 1.25" x 0.042"
Motor Saw Blade 5 HP
Hydraulic 1 HP
Coolant 1/8 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke 0” to 15.8”
Multiple Stroke Indexing 0” to 999”
(Automatic kerf compensation)
Weight 3,765 LBS
Power 230V, 3 PH, 60 Hz
(460, 3 PH, 60 Hz Option)
Floor Space 82” x 93” x 68”
Work Bed Height 31.1”
