Used APPLIED RECOVERY SYSTEMS RST 600 | CHIP PROCESSING SYSTEM
ConditionUsed
1 available

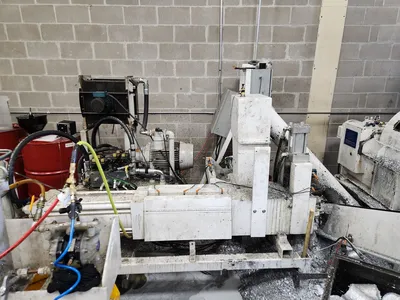

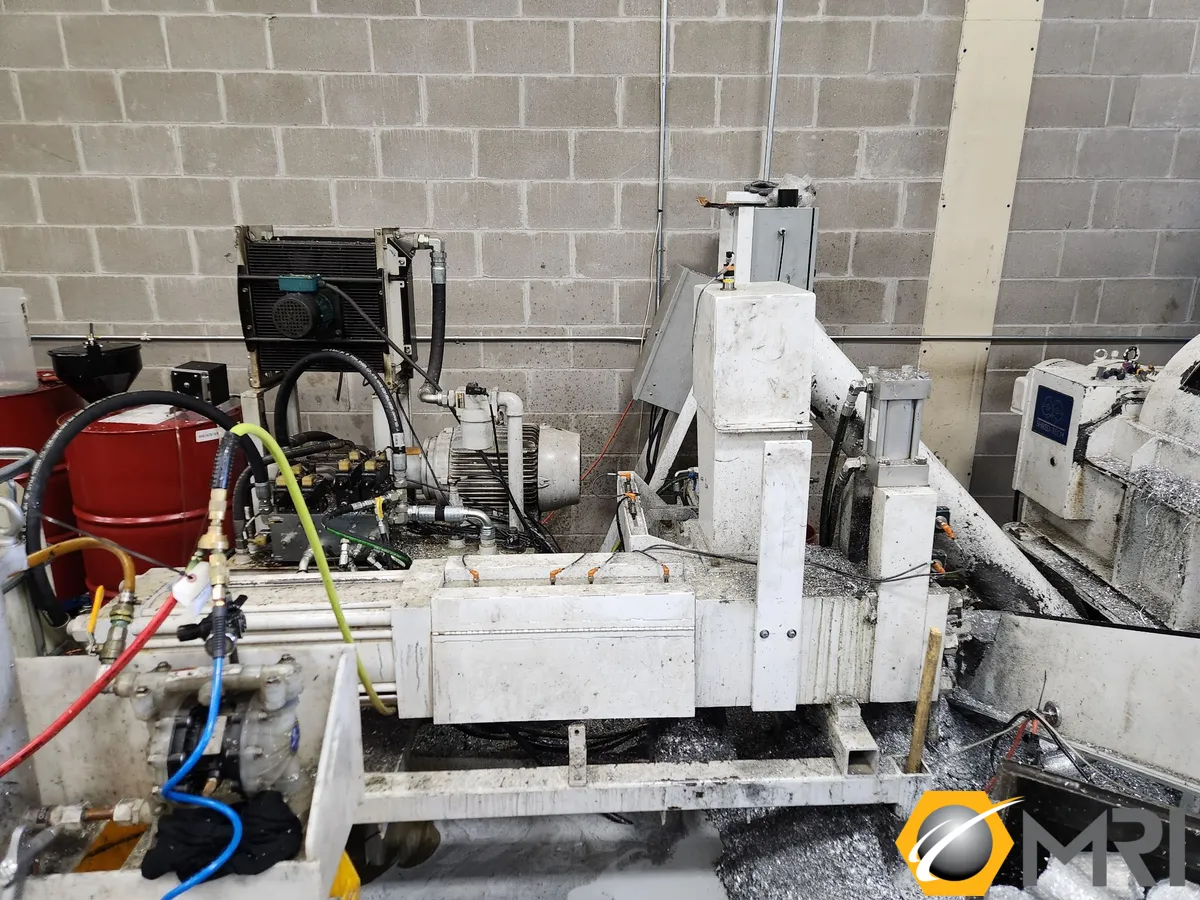

Applied Recovery Systems RST600 Chip Briqueting Machine. This has been customized with a shredder and dumping mechanism for large bins. Great way to process chips and recover more volume in less time.
Manufacturer: Applied Recovery Systems / Applied Recovery Systems
Process Type: Chip BriChip Briquetting, Chip Pucker, Chip Recycling, Coolant
Recovery / Chip Briquetting, Chip Pucker, Chip Recycling, Coolant
Recovery
Chip & Material Types: Aluminum, Steel, Cast Iron, Copper, Brass, Bronze, Magnesium /
Aluminum, Steel, Cast Iron, Copper, Brass, Bronze, Magnesium
Capacity (pounds per hour): Aluminum 272 Kg, Steel or Cast-Iron 545 Kg, Copper or Brass 727 Kg
/ Aluminum 600, Steel or Cast-Iron 1,200, Copper or Brass 1,600
Briquette Size (puck size): 70 x 76 mm / 2.75 x 3.00 inches
Main Motor Power: 15 kw / 20 HP
Compacting Cylinder Bore: 203 mm / 8 inches
Total Compression Force: 114.5 Tons / 126 Tons
Maximum Face Pressure: 2,925 BAR / 42,427 psi
**Information supplied by current owner**
We only run 6061 aluminum in our shop, we recycle about 975,000 lbs of 6061 aluminum per year, most of that poundage runs through this machine and compacts the aluminum into a puck. Our current price we receive for aluminum is around .057 / .060 per pound for chips but increases close to $1 for pucks. So the payback can be quick if you have the poundage.
Process:

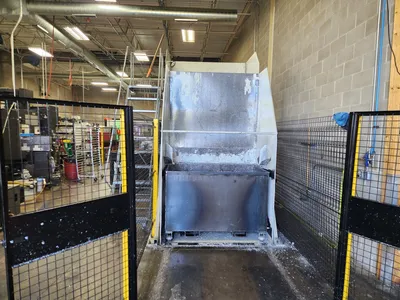

1. Load a bin of chips into the end of machine
2. Using hydraulics, the bin is tipped into the hopper.
3. Turn the machine to auto and the augers from the hopper to the shredder begin to turn

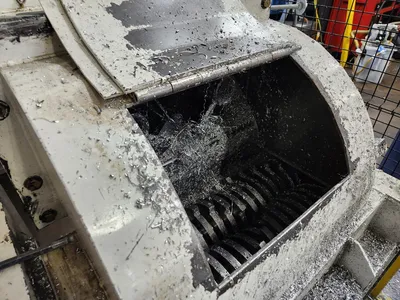

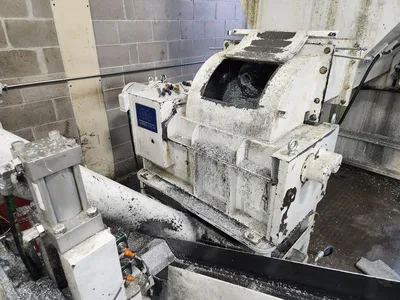

4. chips are processed thru shredder into another auger under it
5. Chips are then augered to the gather bin
6. from gather bin they feed down by gravity into puck tooling
7. Pucks are compressed
8. Completed pucks are then pushed onto a conveyor belt and fed into another bin
