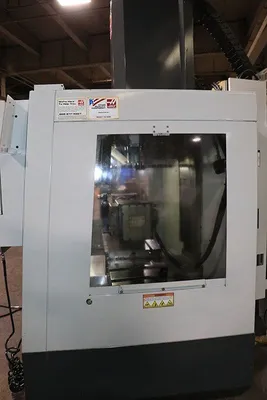

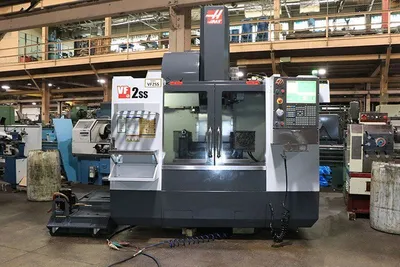

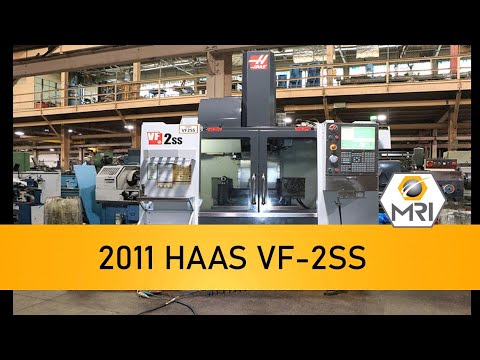

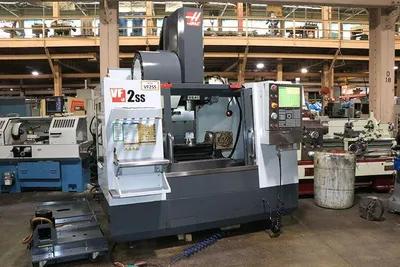

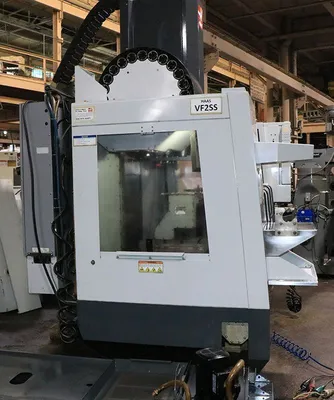

2011 HAAS VF-2SS 5-AXIS VERTICAL MACHINING CENTER | SB 7612152
ConditionUsed
1 available

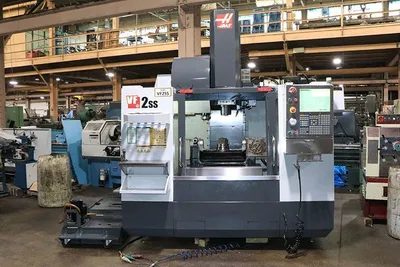

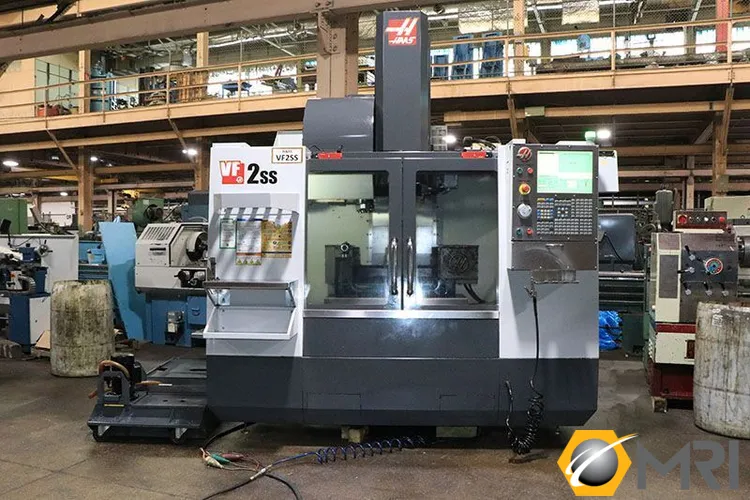

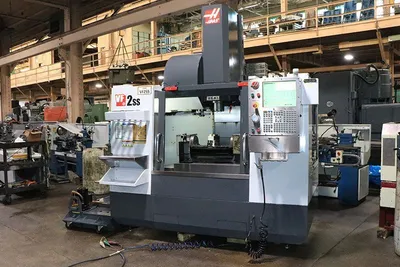

2011 HAAS VF-2SS Vertical Machining Center, used. Features 30" x 16" x 20" travel, 30 hp, 12,000 RPM, CT 40 taper, 24 ATC, and HAAS TR160 CNC trunnion table. Includes HAAS control, spindle orientation, extended memory, and coolant system.

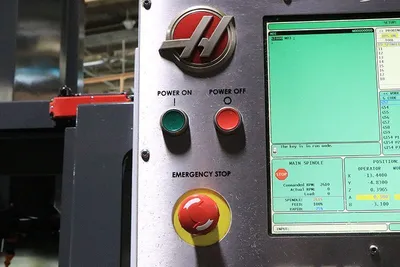

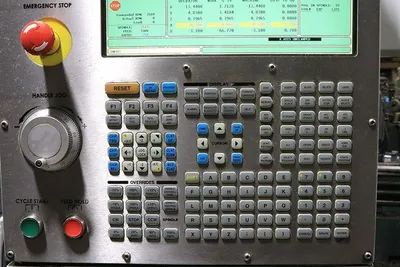

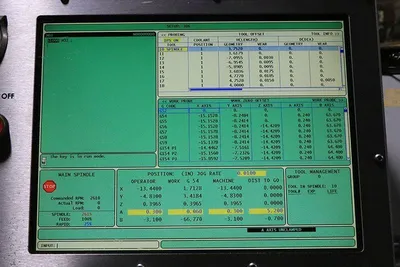

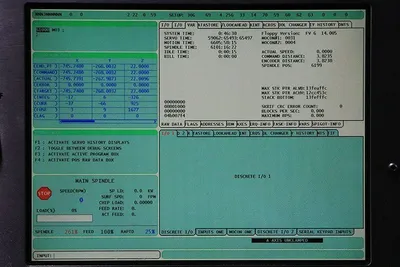

HAAS CONTROL
RIGID TAPPING
ROTATION & SCALING, QUICK CODE
SPINDLE ORIENTATION
EXTENDED MEMORY
USER-DEFINABLE MACROS
DNC ENABLED
ADV TOOL MGMT
INTUITIVE PART PROGRAMMING

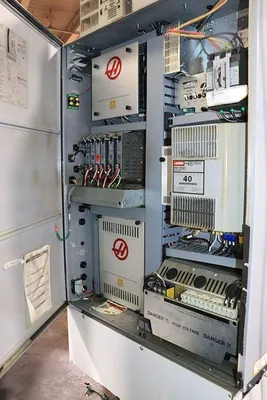

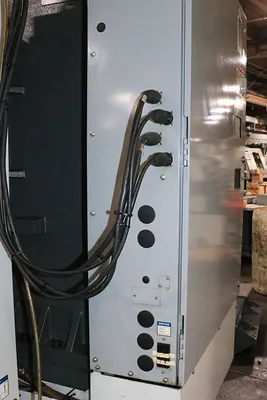

HAAS 5-AXIS DRIVES AND WIRING
HAAS MODEL: TR160 CNC TRUNNION TABLE

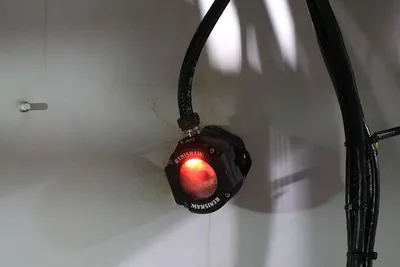

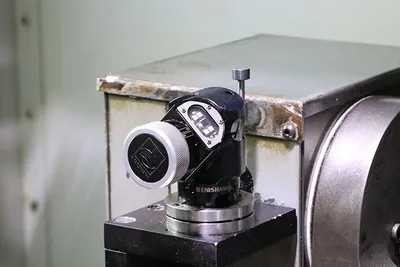

RENISHAW WIRELESS INTUITIVE TOOL & PART PROBE (WIPS)

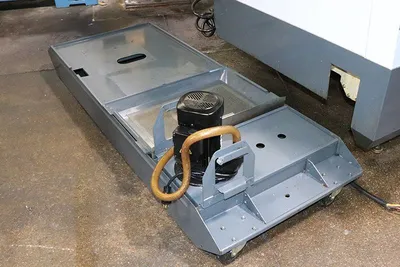

COOLANT SYSTEM

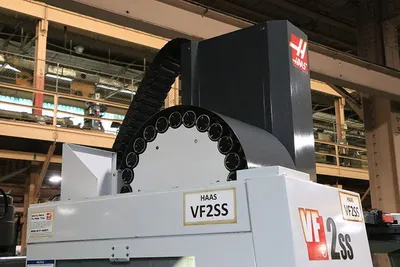

24 + 1 TOOL SIDE-MOUNTED TOOL CHANGER
X-AXIS TRAVEL 30" 762mm
Y-AXIS TRAVEL 16" 406mm
Z-AXIS TRAVEL 20" 508mm

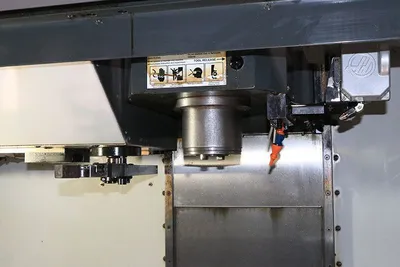

SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 30 HP
SPINDLE DRIVE INLINE DIRECT DRIVE
SPINDLE TAPER CT 40
TOOL MAGAZINE CAPACITY 24 ATC
MAXIMUM TOOL DIAMETER/WEIGHT 3.0" / 12 LBS
RAPID TRAVERSE RATES 1400 IPM
TABLE SIZE 36" X 14"
TABLE LOAD CAPACITY 1500 LBS
MACHINE DIMENSIONS: 89" x 92" x 104"H
MACHINE WEIGHT: 8,000 LBS

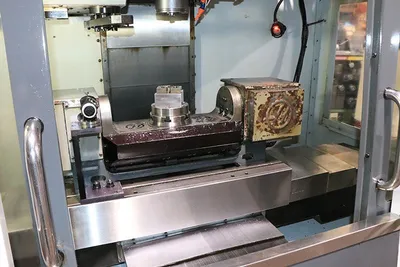

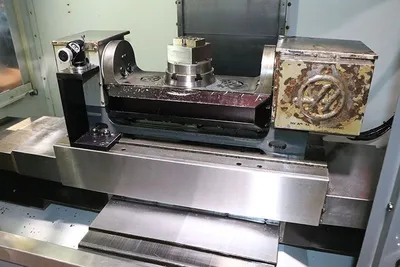

TRUNNION SPECIFICATIONS – HAAS TR160
PLATTER DIAMETER: 6.3" (160 mm)
A-AXIS (TILT): ±120°
B-AXIS (ROTATION): 360° CONTINUOUS
MAX WORKPIECE WEIGHT: 80 LBS (36 kg) INCLUDING FIXTURE
MAX PART SWING: 10.5" (267 mm)
T-SLOTS: (6) 8 mm SLOTS ON THE PLATTER
