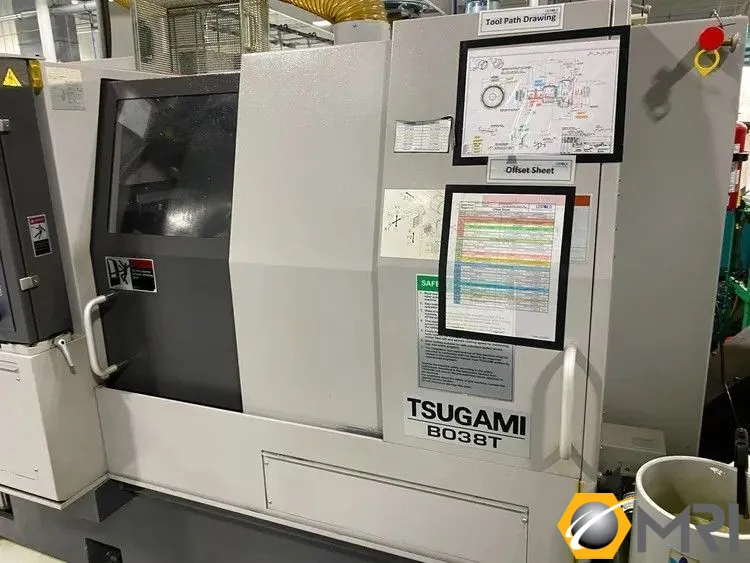

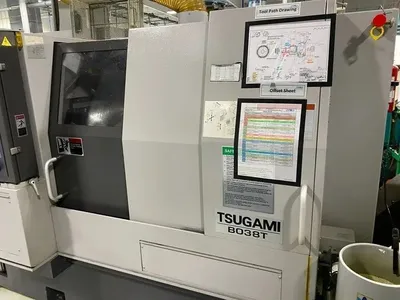

2018 TSUGAMI B038T CNC SWISS PRECISION LATHE | IH

# Axis 9
Swiss, Chucker, Convertible Convertible
Live Back Working Yes
B - Axis No
Main Spindle Bar Capacity 1.49"
Main Spindle Speed 5,000 RPM
Main Spindle Indexing .001
Main Spindle Motor 14.7 kW
Sub Spindle Speed 7,000 RPM
Sub Spindle Indexing .001
Sub Spindle Motor 7.4 hp
Live Tool Speed 8,000 RPM
Drilling Diameter 0.62"
Rapid Traverse Rates 945 ipm
Control CNC (FANUC 31I-B CNC COLOR CONTROL)
Dimensions 135" X 73.8" X 72.4"

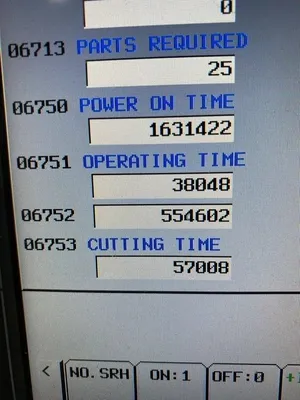

Only 3600 Hours Power on Time
Production Hours are much lower and can get them if needed.

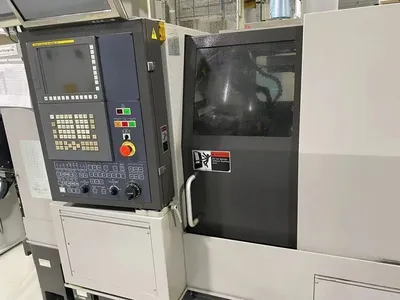

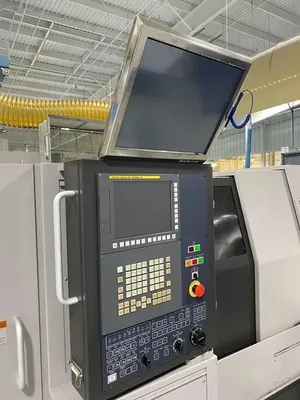

Fanuc 31i-B

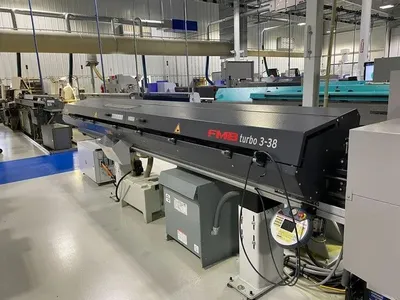

FMB 3-38 Magazine Bar Feed
High pressure Coolant system w. 8 outputs for oil: 2,000 PSI
Fire Suppression System
Main Spindle: 15 HP
Sub Spindle: 7.5 HP
Live Tool Turret: 1.87 HP
Tool Spindle on back tool post: 1.34 HP
Cross drill on front tool post: 1.34 HP

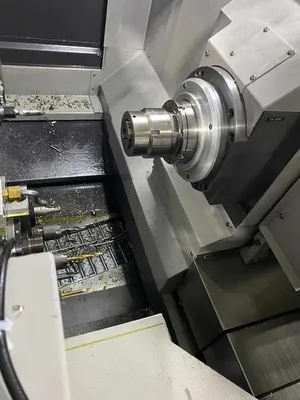

Powerful Sub Spindle: 7,000 RPM
Sub spindle max. machining diameter: 1.5"
Max. Sub spindle drilling diameter: 0.55"
Max. Sub spindle tapping size: M12

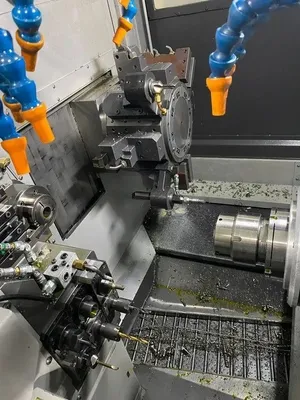

8 Station 3 axis turret (Live Capable)
Live tool spindle speed on Turret: 8,000 RPM
Live tool turret drilling diameter: 16mm
Live tool turret tapping size: M10
1.5" max. machining diameter
Max. headstock stroke: 9.84"
Main spindle speed: 5,000 RPM
Max. main spindle drilling diameter: 0.625"
Main spindle tapping size: M14
Front tool post: 5 turning, 2 Live
Front tool post cross drill speed: 5,000 RPM
Front tool post cross drilling diameter: 10mm
Front tool post cross tapping size: M6
Back tool post: 6 (3 fixed, 3 live)
Back tool post live tool speed: 6,000 RPM
