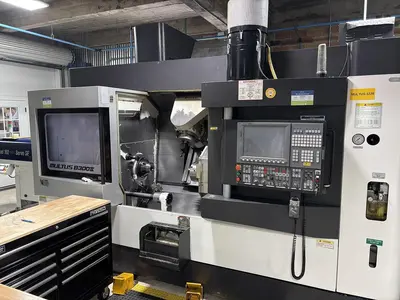

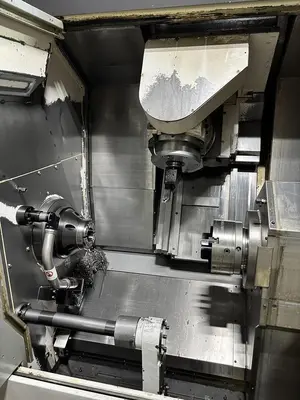

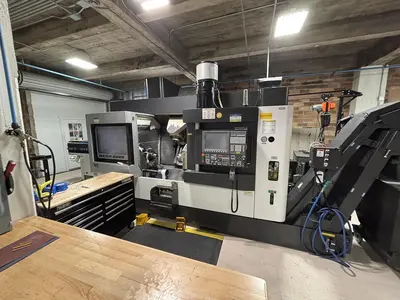

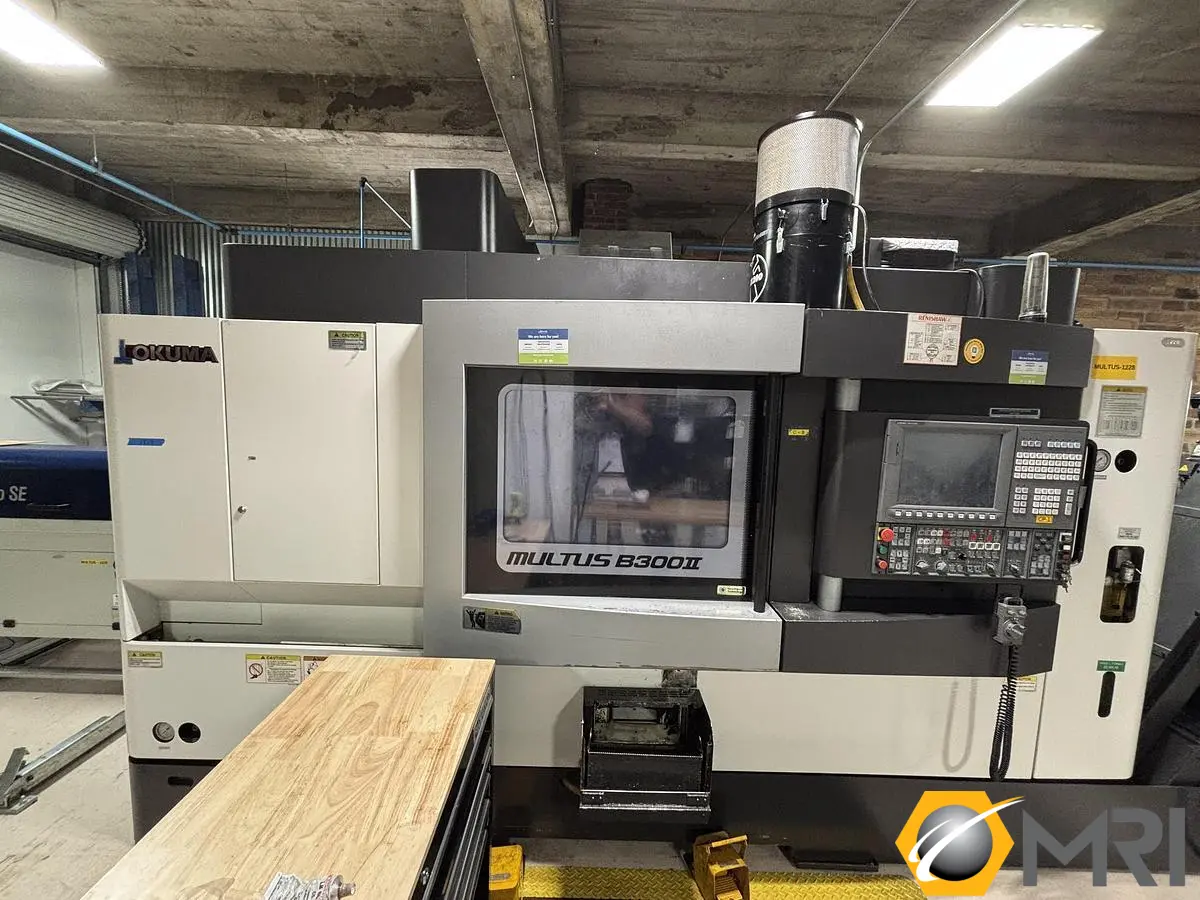

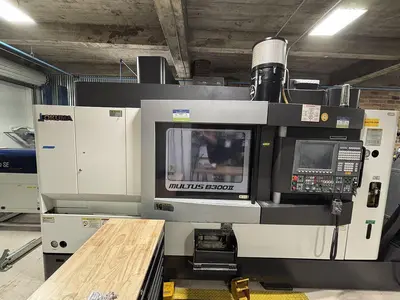

2015 OKUMA Multus B300II CNC LATHE | IH 7612155

SWING OVER SADDLE: 24.8"
DISTANCE BETWEEN CENTERS: 35.43"
X-AXIS TRAVEL: 22.83"
Y-AXIS TRAVEL: +/- 3.15"
Z-AXIS TRAVEL: 35.51"
W-AXIS TRAVEL: 39.37"
B-AXIS TRAVEL: 30 TO +195 DEGREE
B-AXIS INDEXING: 0.001 DEGREE

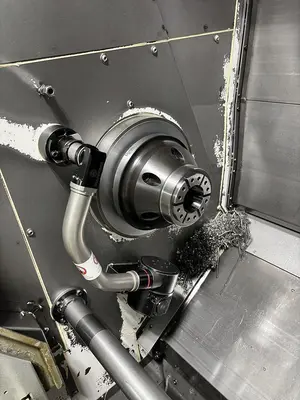

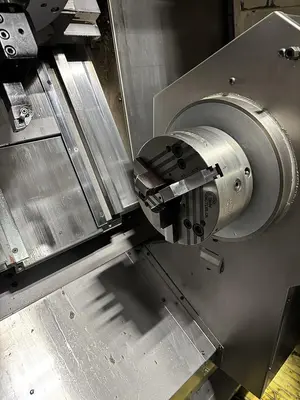

MAIN SPINDLE CHUCK SIZE: 10"
MAIN SPINDLE SPEED: 5,000 RPM
MAIN SPINDLE POWER: 30 HP
SPINDLE NOSE: A2-6
MAIN SPINDLE BORE: 3.93"
MAIN SPINDLE BAR SIZE: 3.15"

SUB SPINDLE CHUCK SIZE: 8"
SUB SPINDLE SPEED: 6,000 RPM
SUB SPINDLE POWER: 15 HP
SUB SPINDLE BORE: 3.94"
SUB SPINDLE BAR SIZE: 3.15"
MILLING SPINDLE SPEED MAX: 12,000 RPM
MILLING SPINDLE TAPER: CAPTO C6

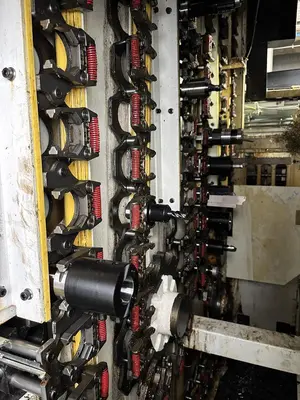

ATC CAPACITY: 120

MACHINE SIZE: 142.52" X 87.01" X 101.66"
MACHINE WEIGHT: 17,820 LBS
