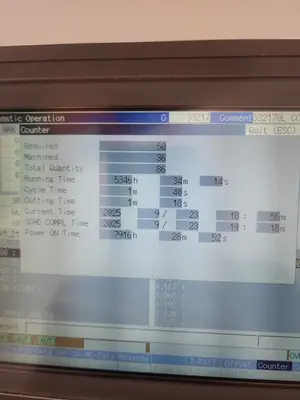

Control Make/Model: Mitsubishi Meldas 70M CNC Controller
Coolant Type(s): High Pressure Coolant
Barfeeder Make / Model: Edge Minute Man 320SE Barfeeder
Coolant PSI: 2,000 PSI
Barfeeder
Mist Buster
Manual B-Axis
Low Frequency Vibration

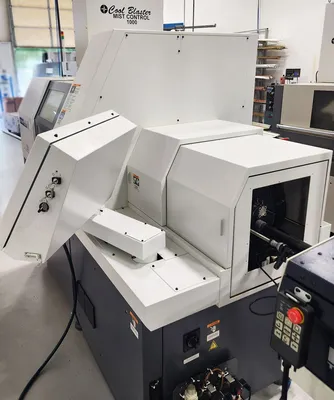

Cool Blaster CB510H

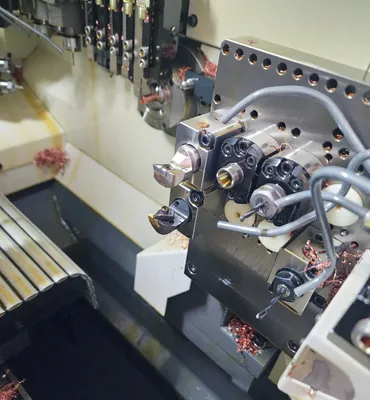

Rotary Tools on Gang Tool Post: Up to 4 rotary tools
Rotary Tool Speed (Gang Tool Post): 9,000 RPM

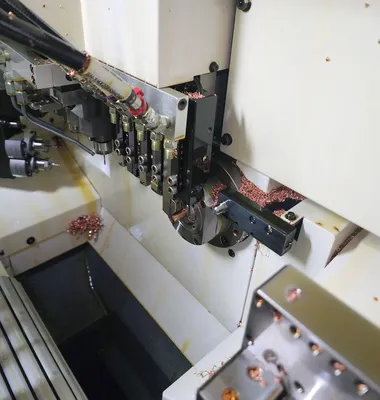

Rotary Tools for Back Machining: Up to 4 rotary tools
Rotary Tool Speed (Back Tool Post): 7,500 RPM
C-Axis: Yes
Spindle Nose: M8
Y-Axis: Yes
Tool Positions: 35
B-Axis: Yes
Sub-Spindle: Yes
Live Tooling / Milling: Yes
Second Bar Capacity: 0.784 inches
Bar Capacity: 0.784 inches
Second Spindle Speed: 10000 RPM
Distance Between Centers: 8.27 inches
Second Spindle Bore: 1 inches
X-Travel: 2.56 inches
Second Spindle Nose: M6
Z-Travel: 7.87 inches
Max Cutting/Turning Diameter: 0.79 inches
Chuck Type: Collet
Max Turning/Cutting Length: 7.87 inches
Spindle Speed: 10,000 RPM
Spindle Bore: 1 inches
