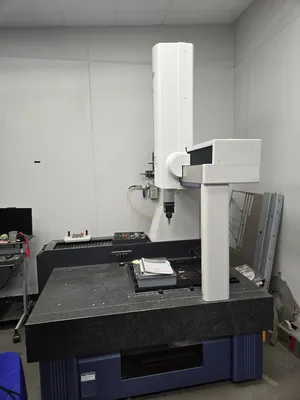

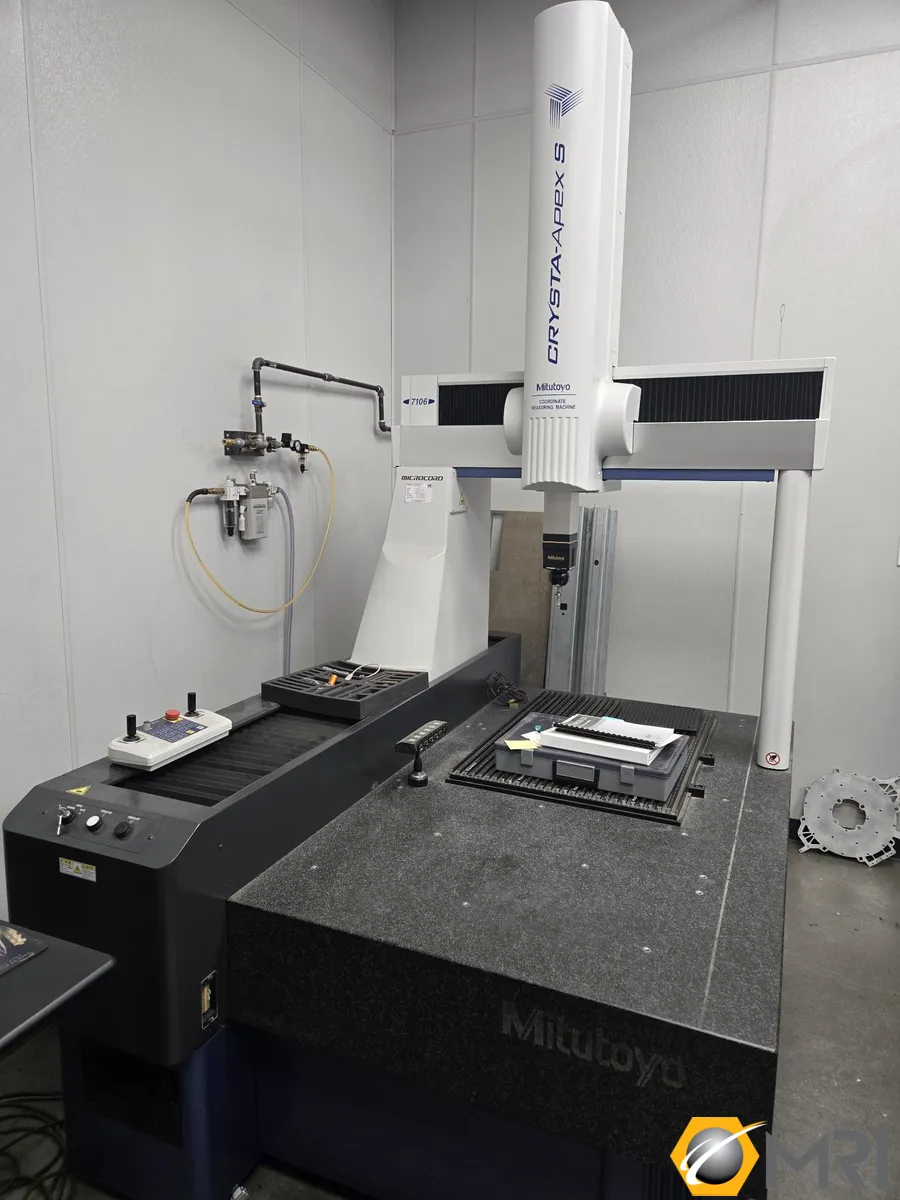

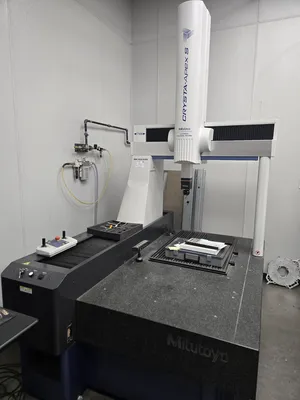

MITUTOYO CRYSTA-APEX S 7106 CNC COORDINATE MEASURING MACHINE, NEW: 2018

MEASURING RANGE:
- X-AXIS: 27.6"
- Y-AXIS: 39.36"
- Z-AXIS: 23.62"
RESOLUTION: 0.000004"
GUIDE METHOD: AIR BEARINGS ALL AXES
DRIVE SPEED:
- CNC MODE: 0.315 - 11.8 IPS
- MAX. SPEED: 20.43 IPS
- J/S MODE:
-- HIGH SPEED: 0 - 3.15 IPS
-- LOW SPEED: 0 - 0.118 IPS
-- FINE SPEED: 0.002 IPS
MAX. MEASURING SPEED: 0.315 IPS
MAX. DRIVE ACCELERATION:
- EACH AXIS: 52.48 IPS
- MAX. COMBINED: 90.9 IPS
WORK PIECE:
- MAX. HEIGHT: 31.49"
- MAX. WEIGHT: 2,204 LBS
AIR SUPPLY:
- PRESSURE: 58 PSI
- CONSUMPTION: 1.76 CFM
- AIR SOURCE: 3.53 CFM
APPROX. DIMENSIONS: 1470(W) x 65"(D) x 2730(H)
