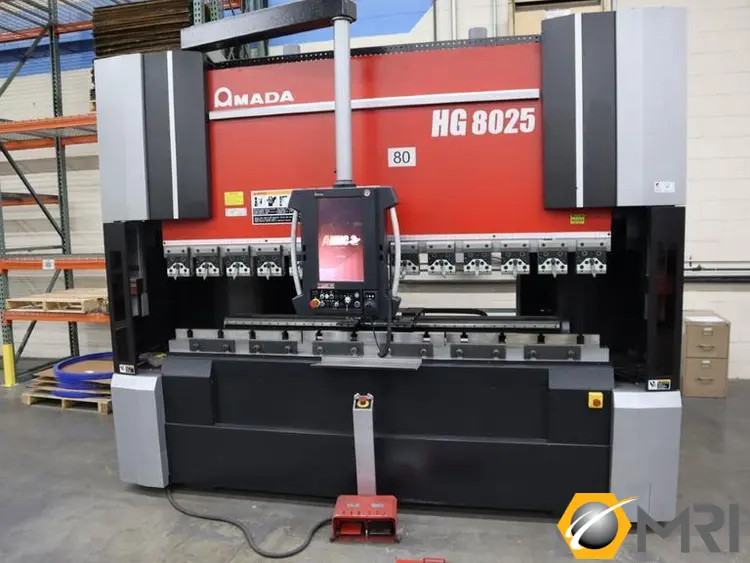

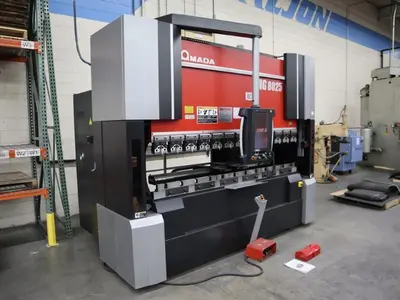

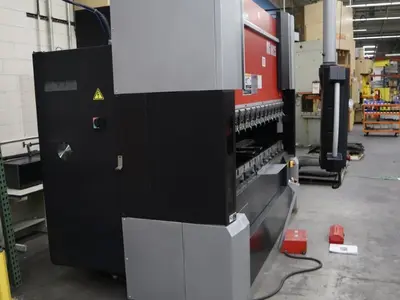

AMADA HG 8025 MODEL 15 CNC PRESS BRAKE, NEW: 2016
ConditionUsed
1 available
AMADA HG 8025 MODEL 15 CNC PRESS BRAKE, NEW: 2016

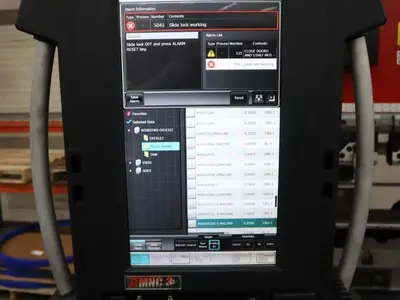

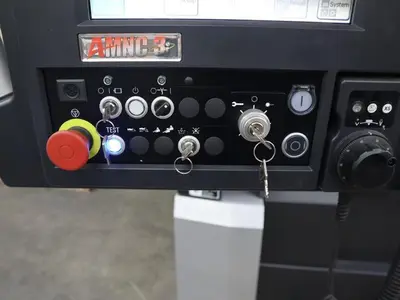

AMADA AMNC3i CONTROL

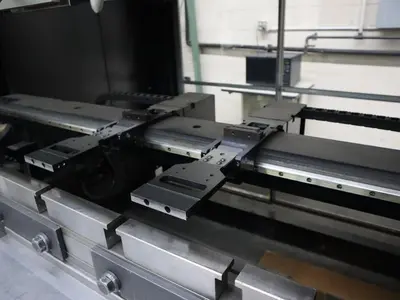

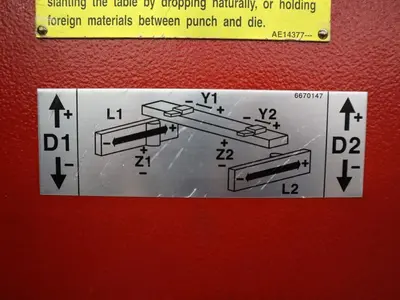

6-AXIS PROGRAMMABLE BACK-GAUGE
L-SHIFT

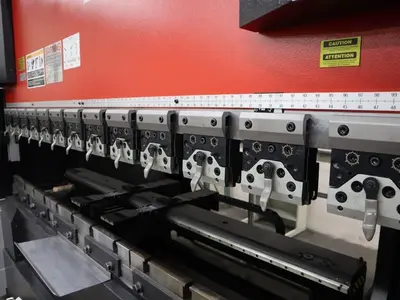

QUICK RELEASE TOOL CLAMPS
FOOT SWITCH

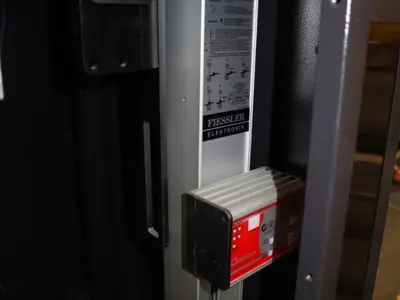

LASER SAFETY CURTAINS
TONNAGE: 89
MAX. BENDING LENGTH: 102.4"
DISTANCE BETWEEN FRAMES: 87"
STROKE LENGTH: 9.8"
OPEN HEIGHT: 20.5
THROAT DEPTH: 17.7"
TABLE HEIGHT: 37.4"
RAM REPEATABILITY: (+/-) 0.00004"
SPEEDS:
- APPROACH: 8.7 IPS
- BENDING: 0.79 IPS
- RETURN: 9.8 IPS
NUMBER OF CYLINDERS: 2
BACK-GAUGE RANGE: 27.5"
BACK-GAUGE SPEEDS:
- L-AXIS: 1,181 IPM
- Y-AXIS: 3,543 IPM
- Z-AXIS: 787 IPM

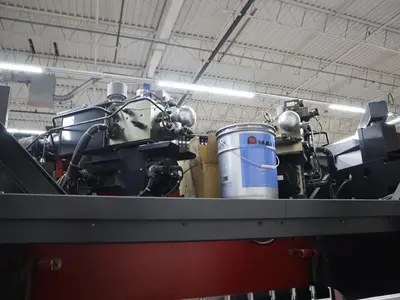

HYDRAULIC FLUID CAPACITY: 11 GALLONS
NOMINAL SUPPLY CURRENT: 44 A
PROVIDED POWER: 16 kVA
APPROX. WEIGHT: 15,875 LBS
APPROX. MACHINE DIMENSIONS: 139"(L) x 95"(W) x 112"(H)
