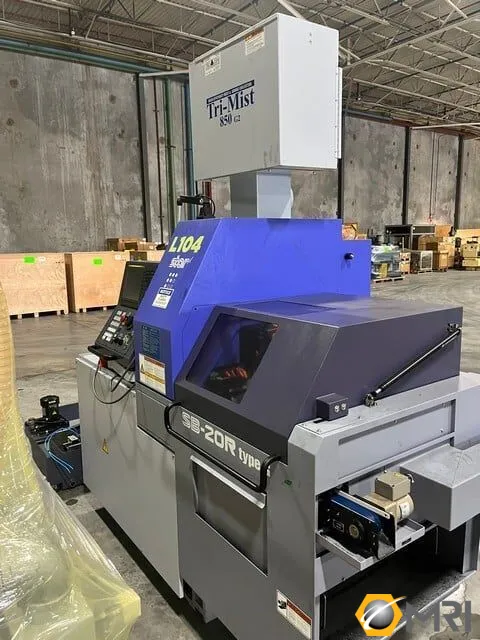

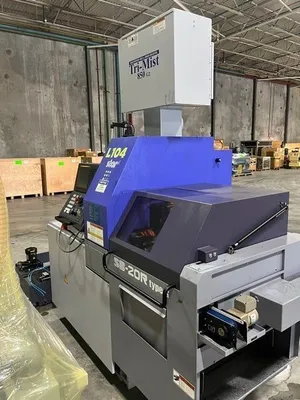

Star SB-20RG CNC Swiss Lathe, New in 2023

All details must be confirmed by the buyer

General Specifications from Manufacturer:

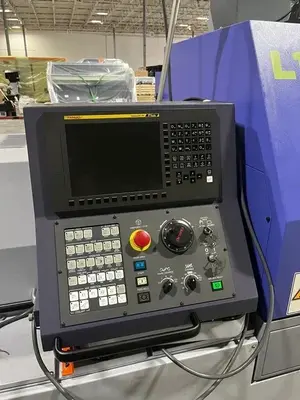

Control: Fanuc 0i-TD
No. of Axes: 7
X1, Y1, Z1, C1, X2, Z2, C2
Max. Machining Diam.: 3/4:
Max Headstock Stroke: 205 mm (8in) GB Type
Bar diam x 2.5 (Max. 50mm) NGB Type
Rapid Feed Rate: 35m/min (x1, Y1, Z1, X2, Z2)

Main Spindle:
Indexing: C Axis control
Speed: 10,000 rpm max
Motor: 2.2 kw / 3.7 kW (10min. / 25% ED)
Back Spindle:
Indexing: C-axis control
Speed: 9,000 max
Motor: .55 kW (cont) / 1.1 kW (15 min/40%ED)
Max Length front ejrction: 80mm (3 5/32")
Max Part projection length: 30mm (1 11/64")

Tooling:
OD Turning: 6
ID Sleeve Holder: 4 ID/4BW
Live Cross Drills: 4
Independent BW: 4 fixed (live optional)

OD Tools: 12mm (for 6 tool arrangement)
ID/ BW Drill Spindles:
Max. Drill Cap. 12mm (1/2")
Max Tap Cap: M10 x P1.5
Live Cross Spindles:
Max Drill Cap: 7mm (9/32") ER 16
Max Tap Cap: M6 x P1.0
Speed: 10,000 rpm max
BW Tools:
Max Drilling Cap: 8mm (5/16") fixed
6mm (15/64") Live (optional)
Max Tap Cap: M6 x P1.0 fixed
M5 x P0.8 Live
Live Tool Speed (optional) 8,000 rpm max
Cooling: 180 liter
Power Consumption: 3.7 KVA
Dimensions (approx): 82" x 47" x 69"
Weight (approx): 3,800 lbs
