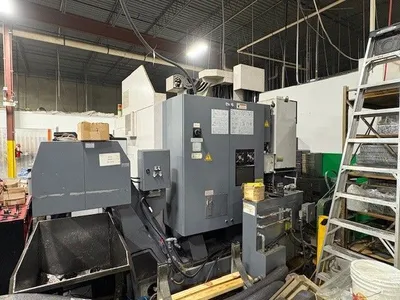

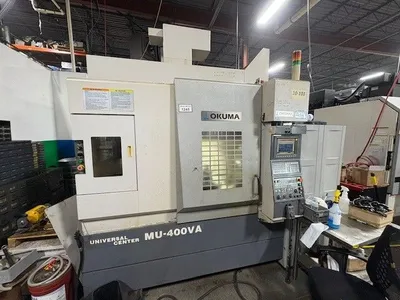

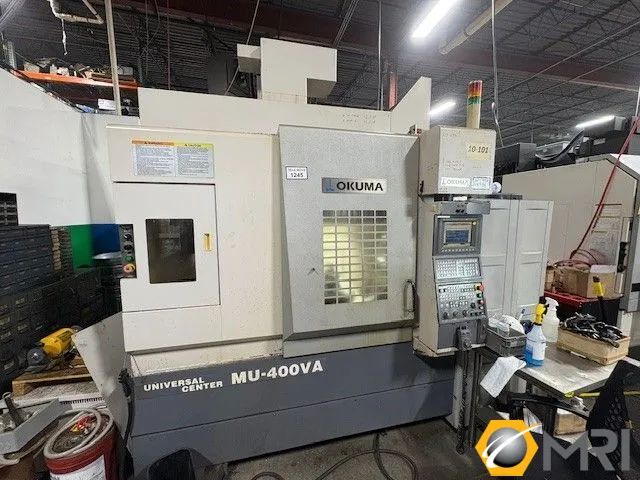

OKUMA MU-400VA 5-axis vertical machining center, 2004 model in used condition. Features 30"x18"x18" XYZ travel, 15,000 RPM, and a #40 taper. Ideal for precision machining tasks with multiple axes.
Chip Conveyor
HP Coolant Through Spindle
All available Manuals

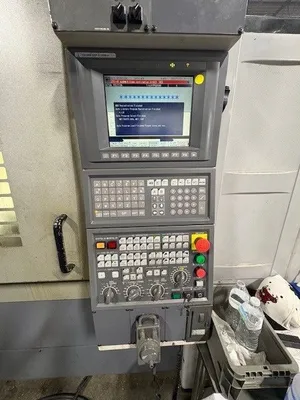

CNC Control: OSP-E100M-H CNC
Table Size: 15.75" Dia
Table Load Capacity: 660 LBS
# Axis: 5
X-Axis (Longitudinal Travel): 30"
Y-Axis (Cross Travel): 18.11"
Z-Axis (Vertical Travel): 18.11"

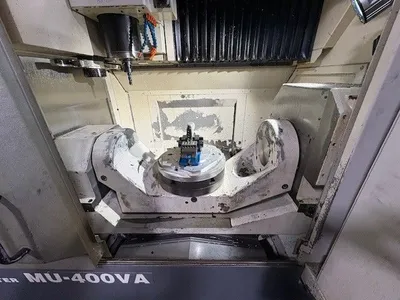

A-Axis (Trunnion Tilt Range) (±25°): +20° to -110°
C-Axis Table Rotation Positioning: 360,000°
Max Clearance Tabletop to Spindle Nose: 22.05"
Min Clearance Tabletop to Spindle Nose: 3.94"
Distance Floor to Table Top: 41.34"
Rapid Traverse Rate (X, Y, & Z Axis): 1,574 IPM
Spindle Horsepower: 20 HP
Max Spindle Speed: 15,000 RPM
Spindle Taper: CAT-40
Coolant Thru Spindle: yes
Automatic Tool Changer Capacity (ATC): 20
Electrics: 220/3/60
Approximate Machine Dimensions: 114" x 160"
Approximate Machine Height: 116"
Approximate Machine Weight: 17,000 LBS
