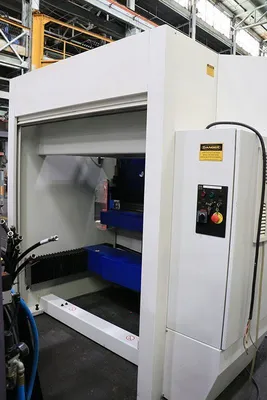

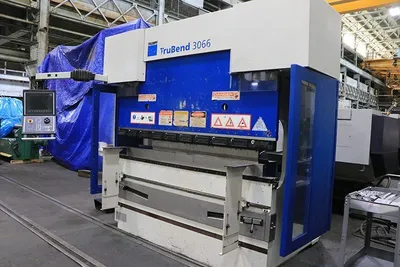

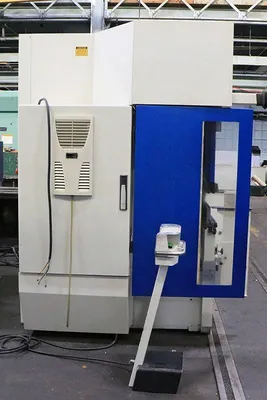

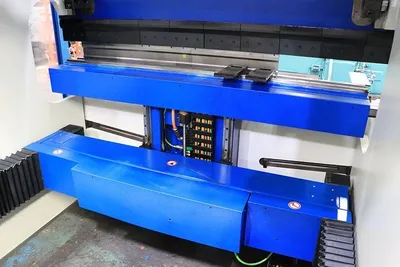

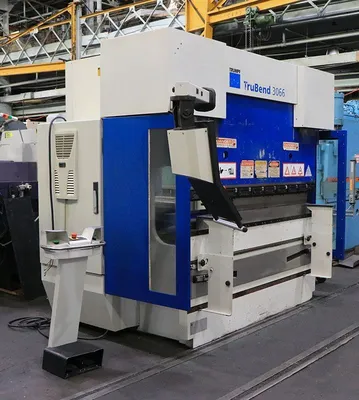

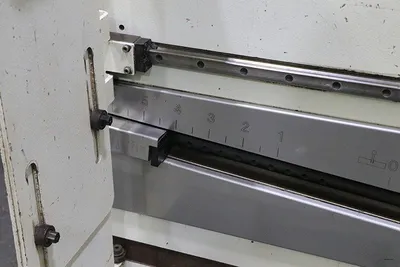

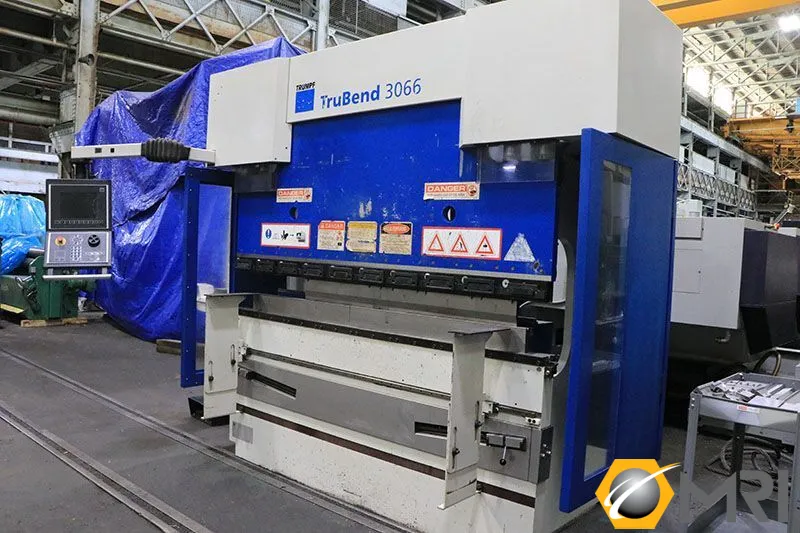

2006 TRUMPF TRUBEND 3066 HYDRAULIC PRESS BRAKE | IH 7612200

TONNAGE ......................... 73
BED LENGTH .. ................... 80"
DISTANCE BETWEEN HOUSINGS ....... 69"
LENGTH BETWEEN THE HOUSINGS ..... 93"
STROKE .......................... 7.87"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 5.9"
Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.
Y-AXIS OPERATIONAL SPEED MAX .... 15 MM /SEC.
PRESS SPEEDS: RAPID ADVANCE ..... 472 IPM
BENDING ........... 35 IPM
RETURN ............ 472 IPM
MAIN MOTOR HP ................... 10
MAX OPERATING PRESSURE ......... 4,466 PSI
MOTOR SPECS ..................... 3 PH / 460 V

APPROX. WEIGHT: 12,500 LBS.
APRROX DIMENSIONS: 102" X 69" X 92" H
