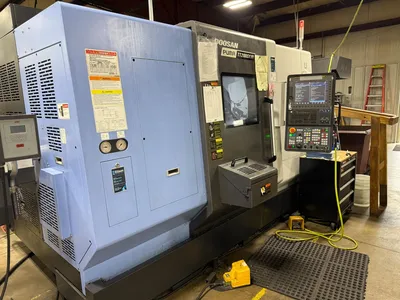

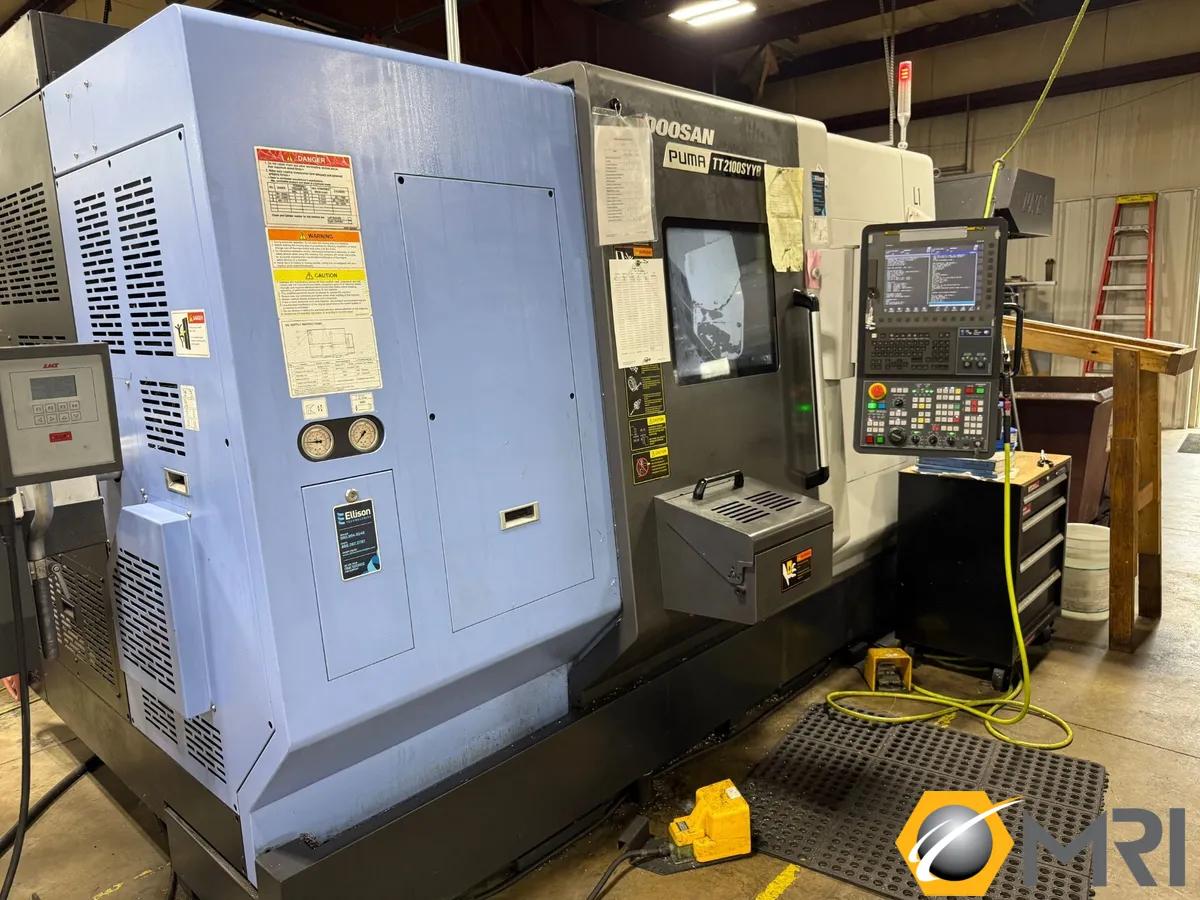

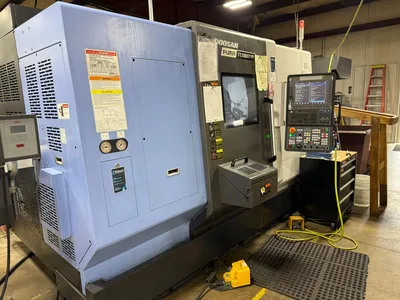

2020 DOOSAN PUMA TT2100SYYB CNC LATHE | AB 7612205

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specifications:

Travel Distance Z2-axis: 700 mm (27.5 in.)
Rapid Traverse Y-axis: 100±50 mm (3.9±2 in.)
Travel Distance A-axis: 730 mm (28.7 in.)
Rapid Traverse X-axis: 30 m/min. (1181 in./min.)
Rapid Traverse Y-axis: 15 m/min. (590 in./min.)
Rapid Traverse Z-axis: 40 m/min. (1575 in./min.)
Rapid Traverse C-axis: 600 rpm
Travel Distance X1-axis: 165 mm (6.5 in.)
Travel Distance Z1-axis: 700 mm (27.5 in.)
Travel Distance X2-axis: 165 mm (6.5 in.)

Tooling
Rotary Tool Torque: 47 Nm (34.7 ft-lbs.)
Shank: BMT-55
Turret Stations: 2 x 12/Turret
Boring Bar Diameter: ⌀32 mm (1.2 in.)
Rotary Tool Speed: 5000 rpm
Rotary Tool Power: 7.5 kW (10 Hp)

Machine Size & Weight
Length: 3940 mm (155 in.)
Height: 2250 mm (88.6 in)
Width: 2360 mm (93 in.)
Weight: 9600 kg (21170 lbs.)

Capacity
Through Hole Diameter (Left Spindle): ⌀82 mm (3.2 in.)
Through Hole Diameter (Right Spindle): ⌀76 mm (3 in.)
Max Turning Diameter (Upper Turret): ⌀230 mm (9.1 in.)
Max Turning Diameter (Lower Turret): ⌀230 mm (9.1 in.)
Max Turning Length: 230 mm (9.1 in.)

Spindle (Left/Right):
Chuck Size: 10/8 in.
Speed: 3500/5000 rpm
Power: 22/18 kW (30/25 Hp)
Torque: 244/223 Nm (180/164 ft-lbs.)
