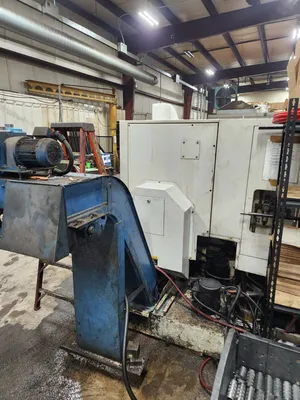

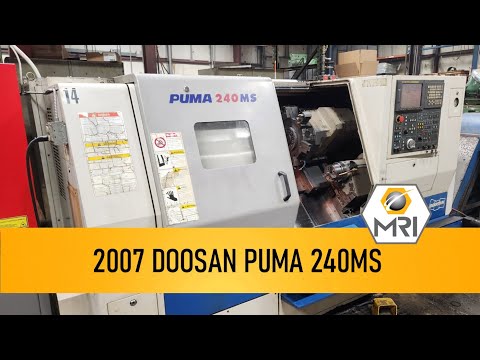

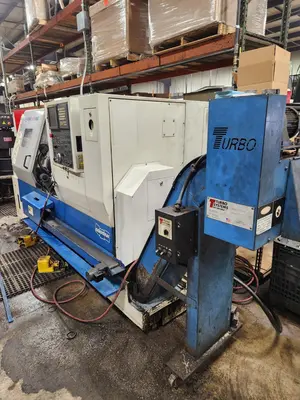

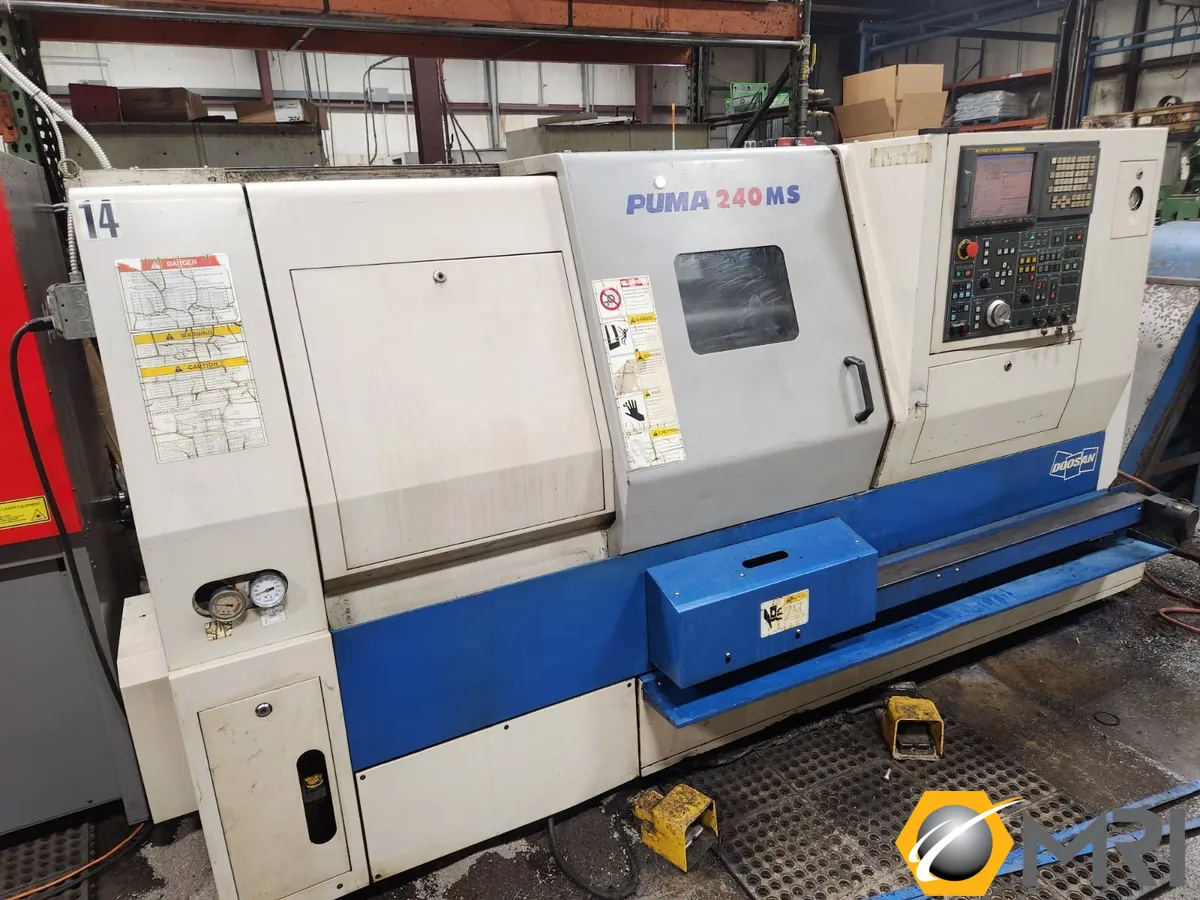

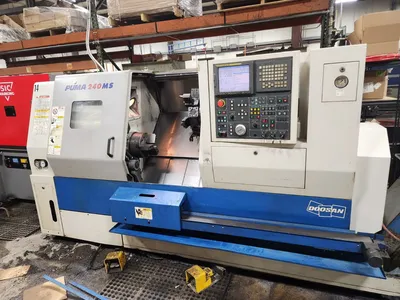

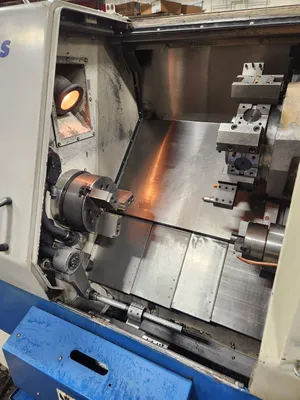

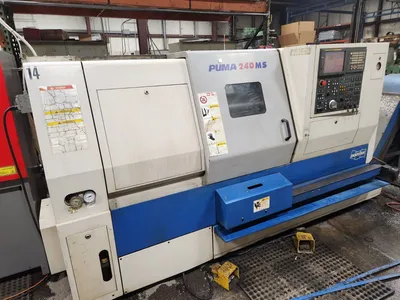

2007 DOOSAN PUMA 240MS CNC LATHE | JS 7612217

SWING OVER BED: 21.7″
TURNING DIAMETER, SHAFTER DIAMETER: 11.4″
MACHINING LENGTH: 19.7″
DISTANCE BETWEEN SPINDLES: 32.3″
CHUCK SIZE: 8″
SPINDLE NOSE: A2– 6
SPINDLE BORE DIAMETER: 1, 2 2.99″
SPINDLE BAR CAPACITY: 2.67"
SPINDLE SPEEDS: 1, 2 5000, 6000 RPM
SPINDLE HORSEPOWER: 1, 2 25, 7.5 HP
X – AXIS TRAVEL: 1, 2 8″
Z – AXIS TRAVEL: 1, 2 22.8″
C – AXIS TRAVEL: 1, 2 .001, .001
B – AXIS TRAVEL: SUB SPINDLE 22.8″
RAPID TRAVERSE RATES: X1, X2 945 IPM
RAPID TRAVERSE RATES: Z1, Z2 1181 IPM
RAPID TRAVERSE RATE: W AXIS 1181 IPM

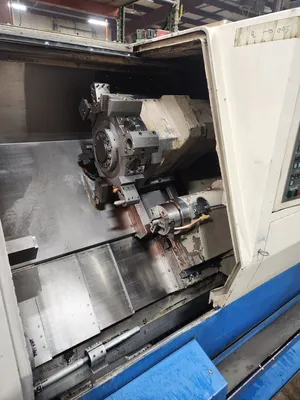

TURRET CONFIGURATION: 12 STATIONS
TURRET ROTARY TOOL SPINDLE SPEED: 1, 2 5000 RPM
TURRET ROTARY TOOL HORSEPOWER: 1, 2 7.5 HP
MACHINE WEIGHT: 10,800LBS
