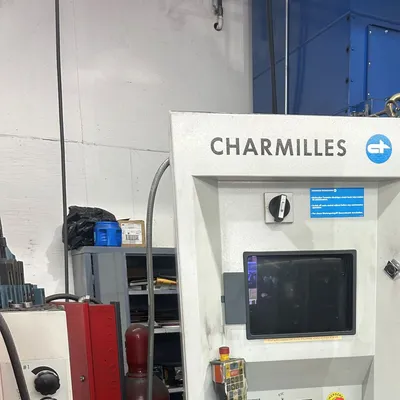

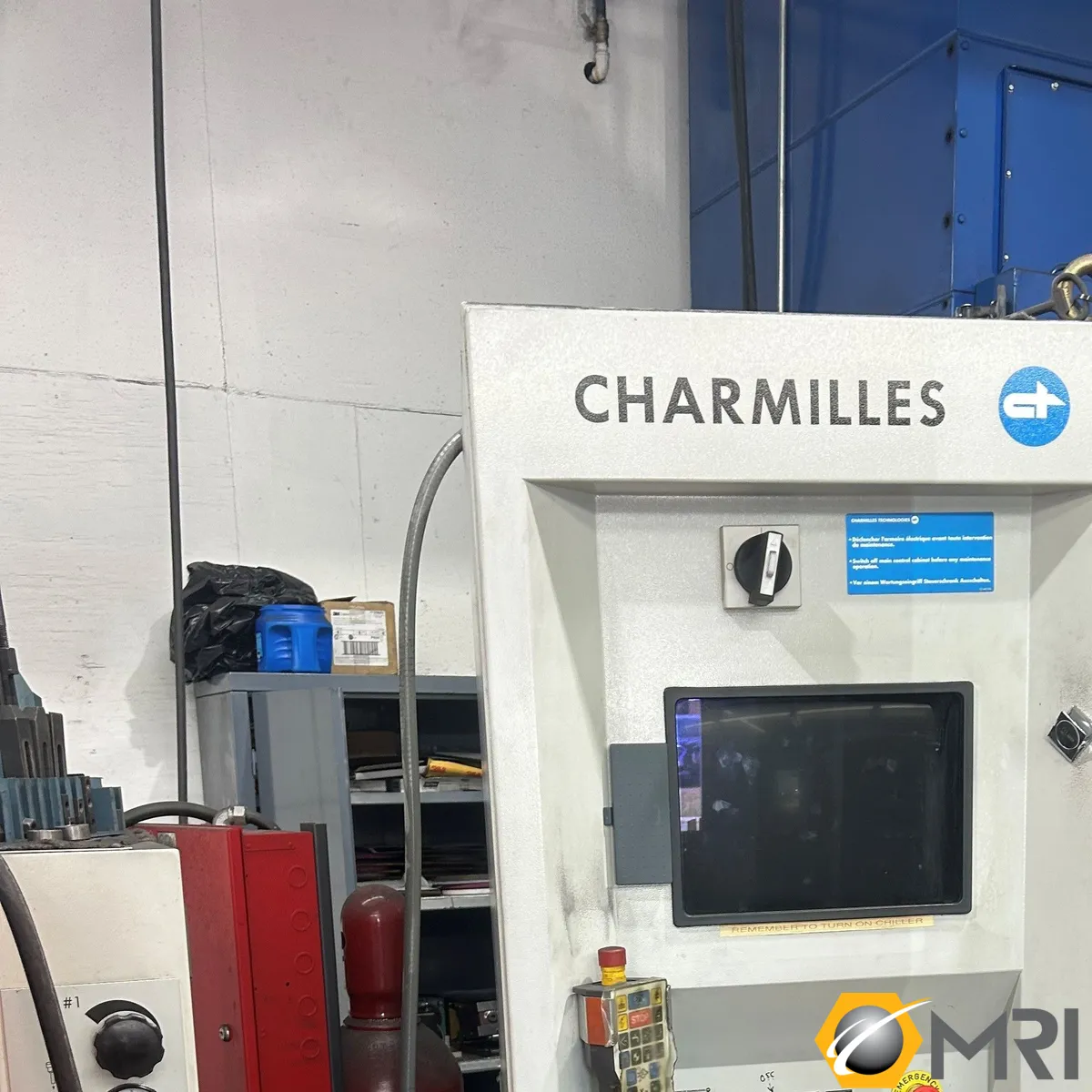

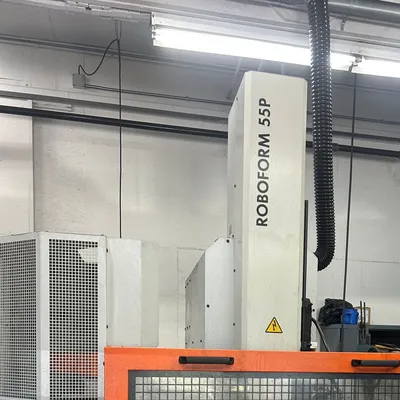

2003 CHARMILLES ROBOFORM 55P ELECTRIC DISCHARGE MACHINE | JS 7612229
ConditionUsed
1 available
* Charmilles CNC Controller
* 24 Position Automatic Electrode Changer
* C-Axis (Erowa ITS)
* 64 Amp Generator
* Automatic Drop Tank Design
* Electric Chiller
* Transformer
* All Available Manuals and Accessories
* Table magnet is included
* Erowa ER-010562 Sensor probe with ø 2mm Ball (Used) is included
* Tooling pictured is NOT included with the machine
Machining Stroke ( X x Y x Z ) 23.6" x 15.74" x 17.72"
Maximum Workpiece Size 47.24" x 30.51" x 15.16"
Maximum Workpiece Weight 3,520 Lbs
Measuring/Resolver Type Linear Glass Scales
Spindle Full C Axis
Chuck to Table Distance 5.90" - 23.6"
Maximum Current 128 Amps
Tank Type Drop Tank
Table Resolution .000040"
Floor Area (LxWxH) 116" x 107" x 114"
Machine Weight 8,500 Lbs
Equipped With:
* Charmilles CNC Controller
* 24 Position Automatic Electrode Changer
* C-Axis (Erowa ITS)
* 64 Amp Generator
* Automatic Drop Tank Design
* Electric Chiller
* Transformer
* All Available Manuals and Accessories
* Table magnet is included
* Erowa ER-010562 Sensor probe with ø 2mm Ball (Used) is included
* Tooling pictured is NOT included with the machine
