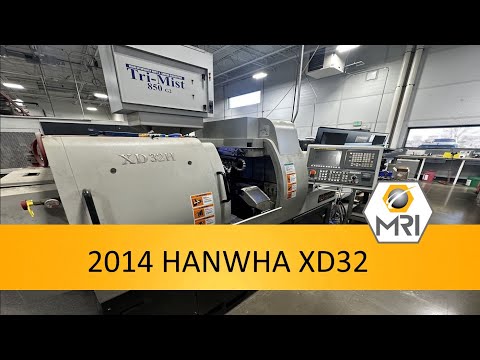

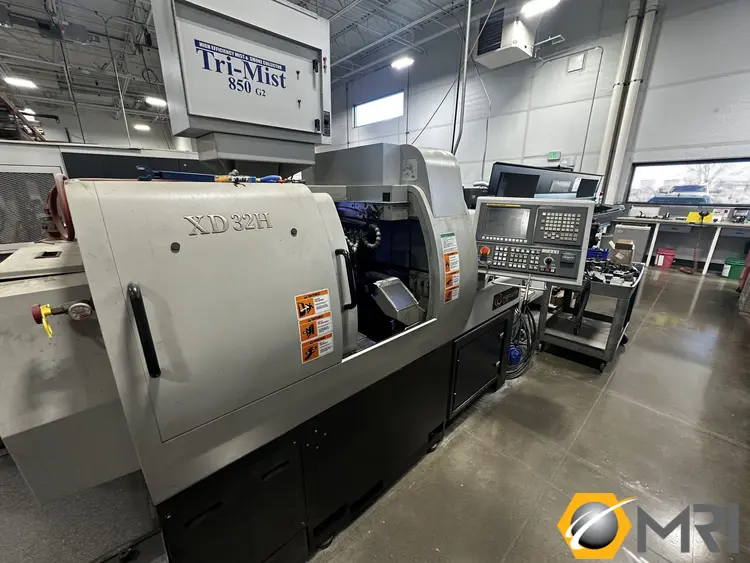

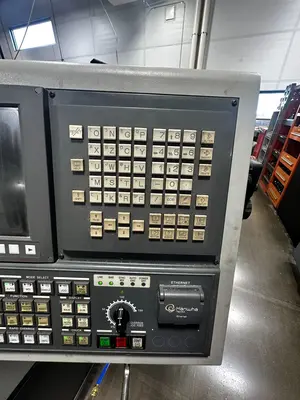

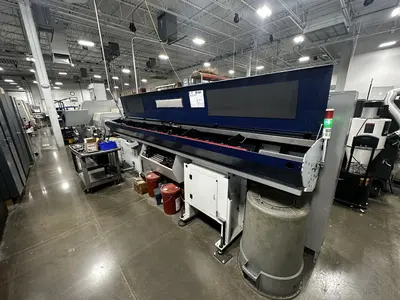

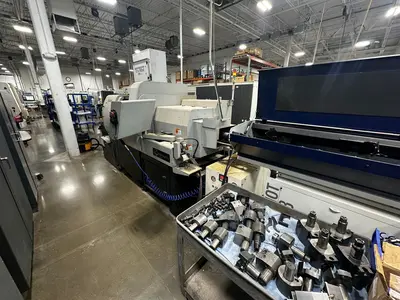

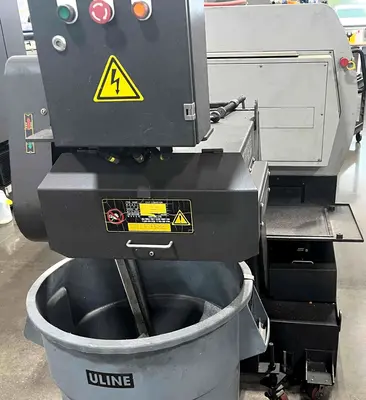

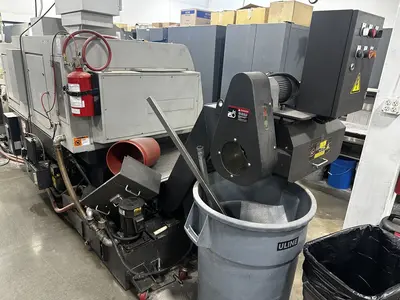

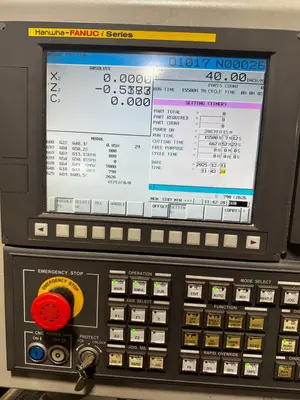

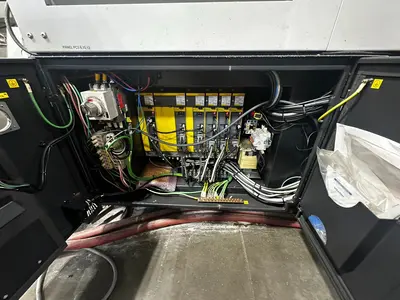

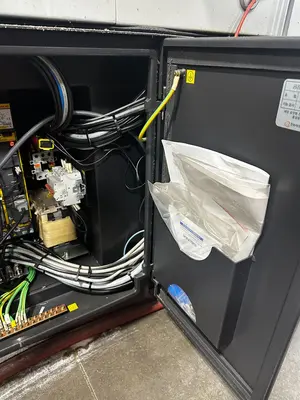

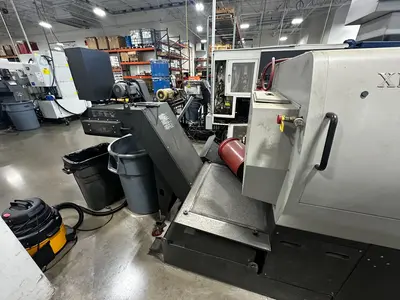

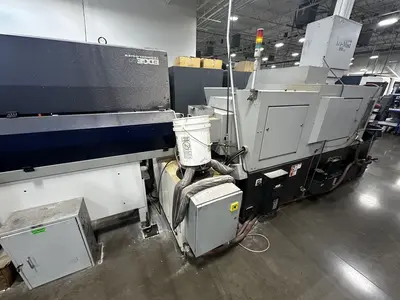

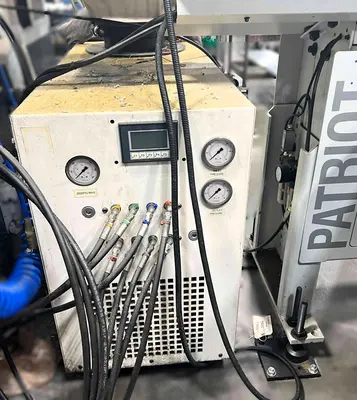

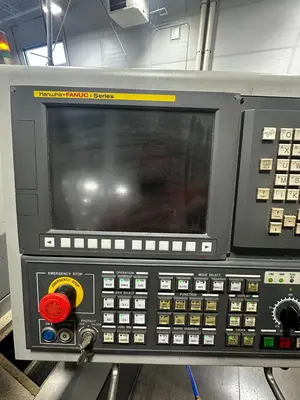

2014 HANWHA XD32H CNC SWISS LATHE | AB

Machining Capacity
Max Bar Capacity Round: 1.25″
Max Bar Capacity Hex: 1.062″
Max Bar Capacity for the Sub Spindle: 1.25″
Tapping Capacity on the Main Spindle: 0.312″
Front Ejection from the Sub Spindle: 3.0″
Rear Ejection from the Sub Spindle: 11.0″
Drilling Capacity on the Sub Spindle: .393”
Tapping Capacity on the Sub Spindle: .312”
Drilling Capacity on the Cross Drill: 0.275″ / 0.393″
Tapping Capacity on the Cross Tap: 0.250″

Main Spindle
Spindle Speed: 300 – 8,000 RPM
AC Spindle Drive Core Motor: 7.5 HP
C Axis Control Minimum Programmable Angle: 0.001 Deg.
C Axis Locking Gear: Every 1.0 Degree
Z1-Axis Horsepower: 2.0 HP
Z1 Axis Stroke: 12.50″
Z1 Axis Rapid Traverse: 1,200 IPM

Sub Spindle
Spindle Speed: 300 – 7,000 RPM
AC Spindle Drive Core Motor: 3 HP
C Axis Control Minimum Programmable Angle: 0.001 Deg.
C Axis Magnetic Brake: Every 1.0 Degree
Z2-Axis Horsepower: 2.0 HP
Z2-Axis Stroke: 12.50″
Z2- Axis Rapid Traverse: 1,200 IPM

Cross Working Spindles
Spindle Speed: 200 – 6,000 RPM
AC Spindle Drive Geared: 1.7 HP

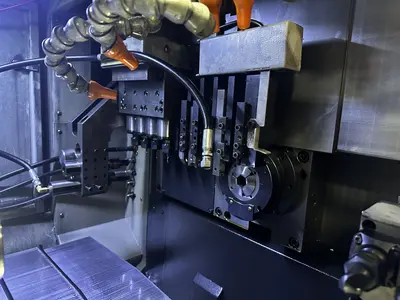

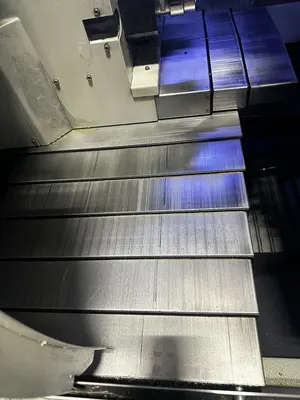

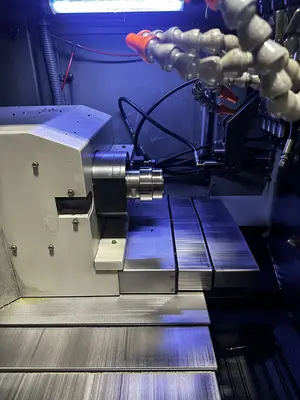

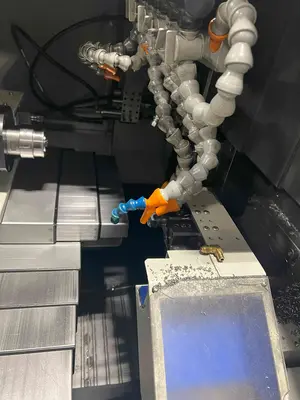

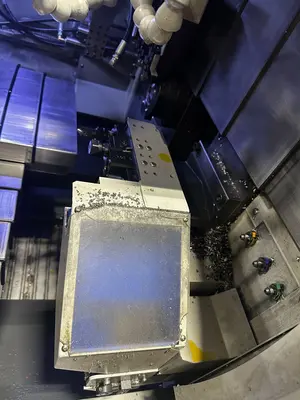

Tool Position
OD Tool Positions: 5
OD Tool Shank: 0.625” Sq.
Cross Mill / Drill Stations: 4
Main Spindle ID Tool Positions Total (ER16 Type): 7
(5) Stationary from the Main Tool Stand
(2) Powered Face Mill / Drill Stations Independent from the Main Tools
Sub Spindle ID Tool Positions Total (ER-16 Type): 9
(5) Stationary from the Main Tool Stand
(2) Stationary Independent from the Main Tools
(2) Gear Driven Independent from the Main Tools to 6000 RPM

DIMENSIONS
65" x 94" x 69"
WEIGHT
9500 LBS
