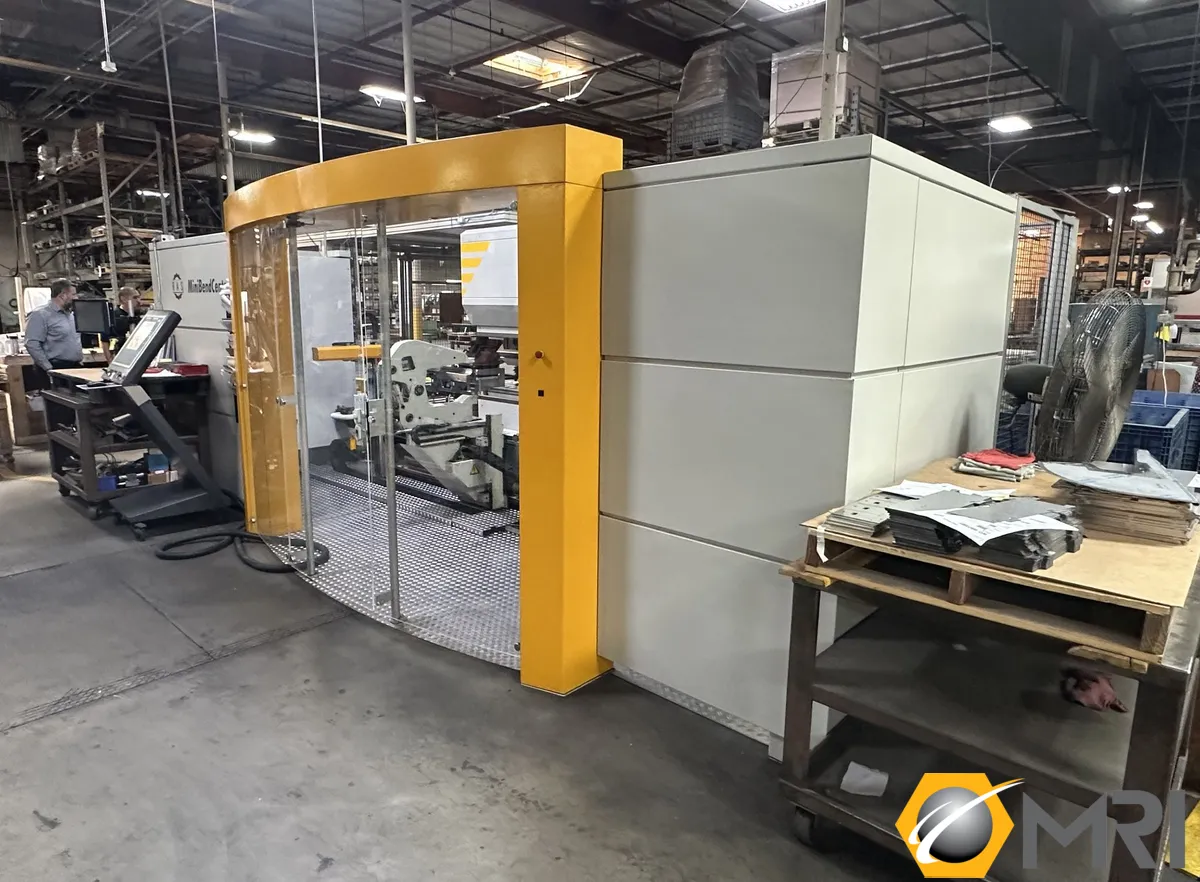

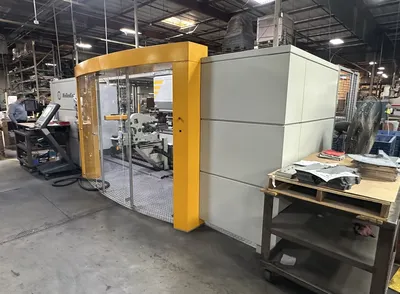

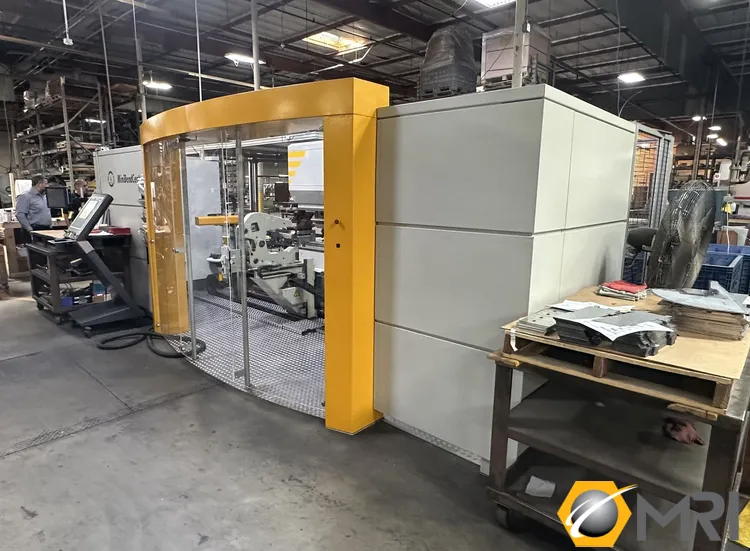

RAS MINIBEND CENTER 79.05 ROBOTIC FOLDING MACHINE WITH TOOL CHANGER, NEW: 2014 | RM 7612237
$199,500.00 USD
ConditionUsed
1 available

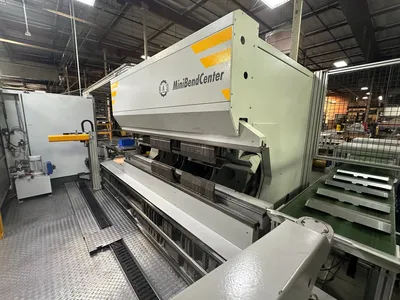

The RAS MiniBendCenter 79.05 is a fully automatic bending center specifically designed for the efficient processing of small parts. The integration of an intelligent robot revolutionizes the loading of punched or laser-cut blanks as well as the unloading of the finished bent parts, which it deposits or stacks unsorted as required. The newly implemented pallet changing station optimizes the material flow by providing a central point for feeding in new blanks and removing the processed parts. With these innovations, the MiniBendCenter not only guarantees low unit costs, but also a quantum leap in productivity in automated sheet metal processing.

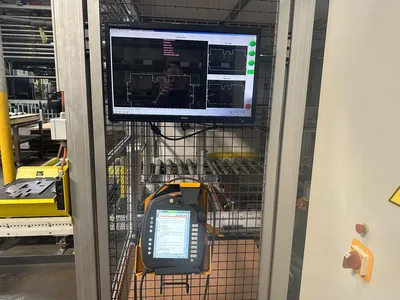

RAS TOUCH&MORE CONTROL WITH 18" TOUCH SCREEN, MOVEABLE OPERATING PANEL

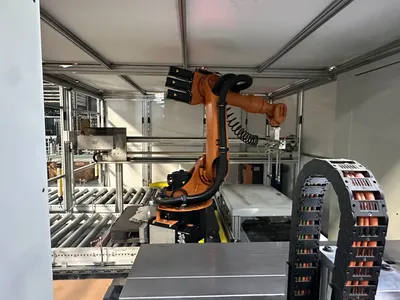

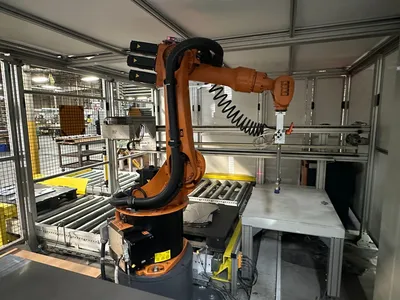

KUKA KR 16-2 ROBOT

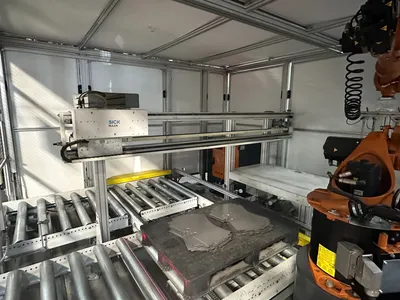

CAMERA SCANNING SYSTEM

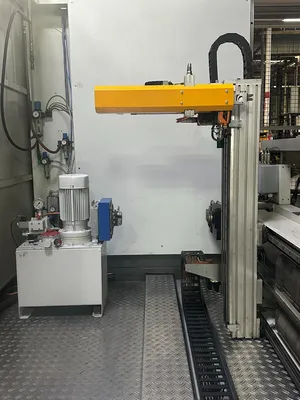

TRANSFER TABLE WITH SUCTION CUPS

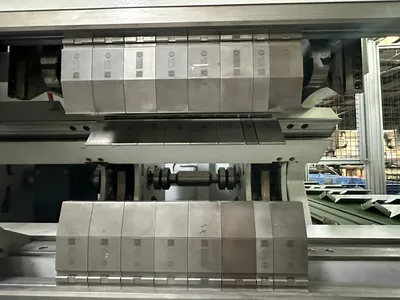

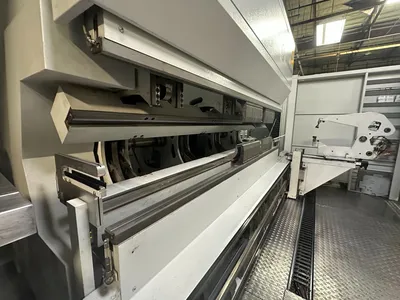

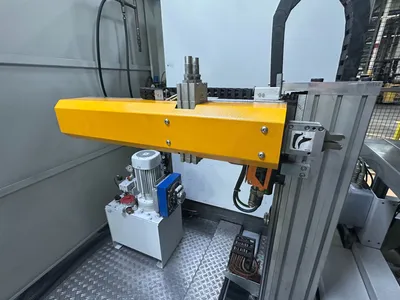

UPPER AND LOWER TOOL MAGAZINE

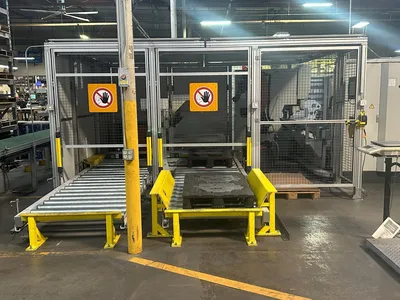

MATERIAL HANDLING SYSTEM:
- TWO RAW MATERIAL CARTS
- TWO SKELTON PALLETS

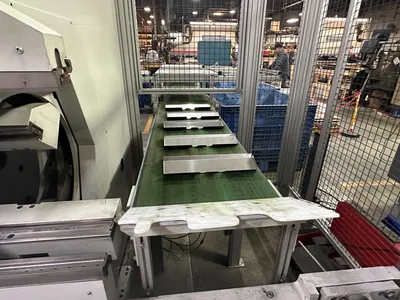

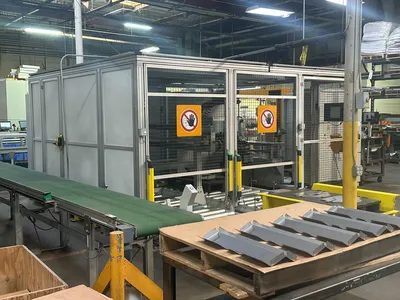

FINISHED PART CONVEYOR SYSTEM
TOOLING:
20) CLAMPING TOOL VF18 BASIC SEGMENT
(RADIUS 0.0031", 2.36" LONG, 0.905" FOOT, FOOT ANGLE 30 DEG.)
6) CLAMPING TOOL VF18 ADAPTER SET
(RADIUS 0.0031", ((0.59",787",0.98" AND 1.18" LONG)), 0.905" FOOT, FOOT ANGLE 30 DEG.)
1) CLAMPING TOOL VF18 CORNER RIGHT
(RADIUS 0.0031", 2.36" LONG, .0.63"" FOOT, FOOT ANGLE 30 DEG.)
1) CLAMPING TOOL VF18 CORNET LEFT
(RADIUS 0.0031", 2.36" LONG, 0.63" FOOT, FOOT ANGLE 30 DEG.)
20) CLAMPING TOOL HF32 BASIC SEGMENT - 0.098"
(RADIUS 0.0031", 2.36" LONG, 0.63" FOOT, FOOT ANGLE 36 DEG.)
6) CLAMPING TOOL HF32 ADAPTER SET - 0.098"
(RADIUS 0.0031", ((0.59",787",0.98" AND 1.18" LONG)), 0.905" FOOT, FOOT ANGLE 36 DEG.)
2) CLAMPING TOOL HF32 CORNER RIGHT - 0.059"
(RADIUS 0.0031", 3.9" LONG, 0.63" FOOT, FOOT ANGLE 36 DEG., SIDE FREE 1.77")
2) CLAMPING TOOL HF32 CORNER LEFT - 0.059"
(RADIUS 0.0031", 3.9" LONG, 0.63" FOOT, FOOT ANGLE 36 DEG., SIDE FREE 1.77")
20) FOLDING BEAM TOOL 0.47" x 1.57" BASIC SEGMENT - 0.118"
(2.36" LONG)
6) FOLDING BEAM TOOL 0.47" x 1.57" ADAPTER SET - 0.118"
(0.59",787",0.98" AND 1.18" LONG)
20) FOLDING BEAM TOOL 0.39" x 0.47" BASIC SEGMENT - 0.118"
(2.36" LONG)
6) FOLDING BEAM TOOL 0.39" x 0.47" ADAPTER SET - 0.118"
(0.59",787",0.98" AND 1.18" LONG)
MIN. BLANK LENGTH: 1.97"
MAX. BLANK LENGTH: 23.62"
MIN. BLANK WIDTH: 1.57"
MAX. BLANK WIDTH: 23.62"
MAX. MATERIAL THICKNESS: 11 ga. (DEPENDING ON THE TOOL)
DRIVE: SERVO MOTORS
REQUIRED BLANK QUALITY: LEVELED
PALLET SIZE: 47" x 31.5"
MAIN MANIPULATOR POSITIONING ACCURACY:
- X-AXIS: (+/-) 0.0008"
- Y-AXIS: (+/-) 0.0008"
- Z-AXIS: (+/-) 0.002"
- ROTATION AXIS: (+/-) 0.01 DEG.
TOOL CHANGER ACCURACY: 0.0008"

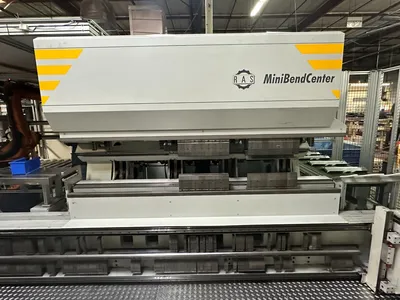

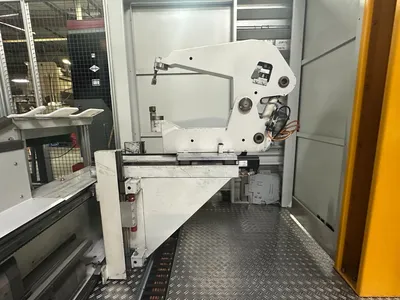

FOLDING CELL:
- UPPER BEAM LENGTH: 98.4"
- LOWER BEAM LENGTH: 98.4"
- UPPER FOLDING BEAM: 90.5"
- LOWER FOLDING BEAM: 98.4"
