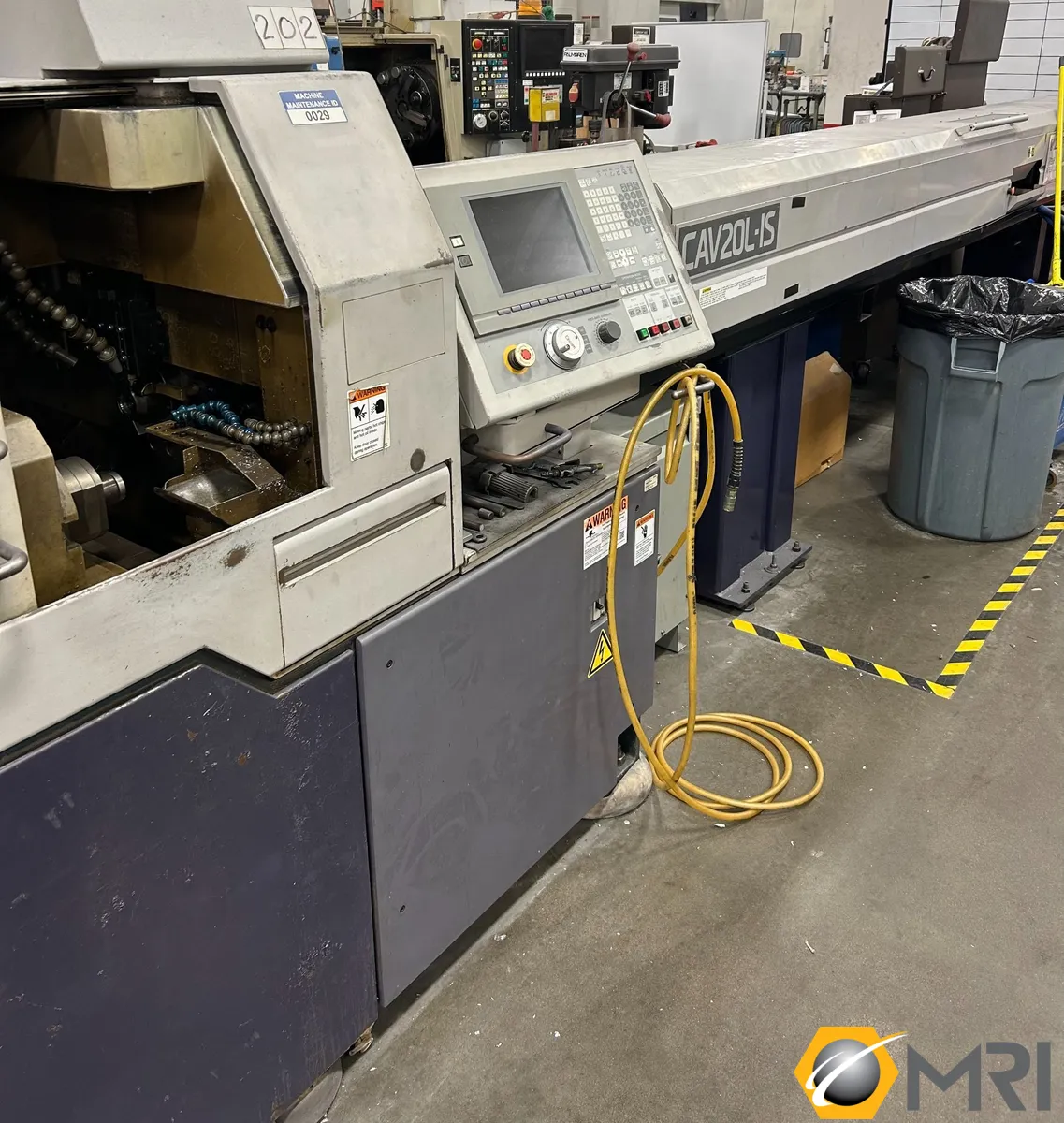

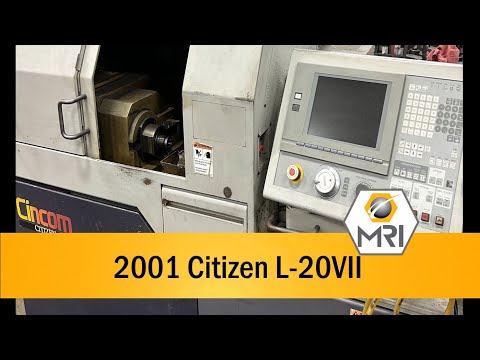

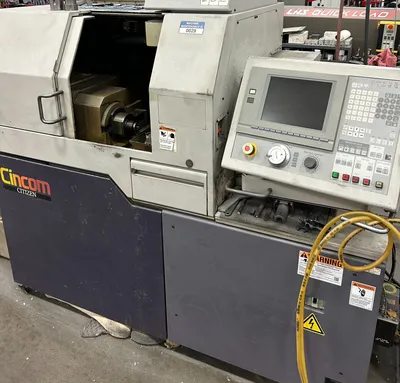

Citizen L-20VII CNC Swiss Lathe, New in 2001

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications per Brochure:
Max Machining Diameter: 0.8"
Max Machining Length (per One Chuck): 7.87"
Drilling Diameter: 0.315"
Spindle Speeds: 7200-RPM (Main) - 5000-RPM (Pick Off Spindle)
Max Chuck Diameter of Pickoff Spindle: 0.8"
Drilling Diameter of Pick Off Spindle: 0.236"
Back Worth Length: 2.756"
Number of Mounted Tools: 17 (4-Rotary/ 6-Turning/ 4-Endworking/ 3-Backworking)
Tool Size: 1/2" x 1/2" x 2-3/8" to 6"
Spindle Motors: 2.2/3.7-kW (Main) 1.5-kW (Pick Off)

Shipping dimensions:
Machine: 85" x 47" x 70" 3,600 lbs
Barfeed: 208" x 26" x 82" 2,100 lbs
Coolant tank: 41" x 39" x 35" 200 lbs
