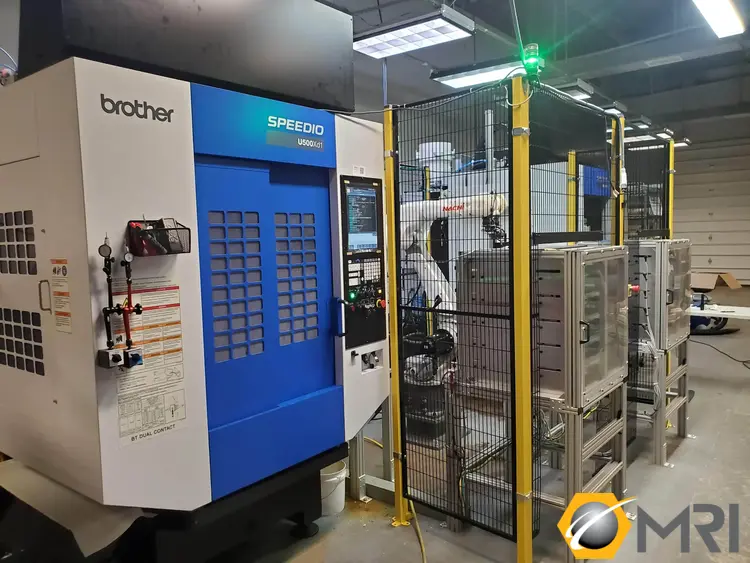

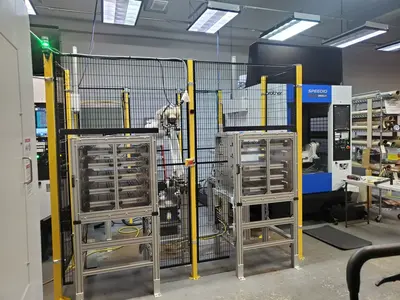

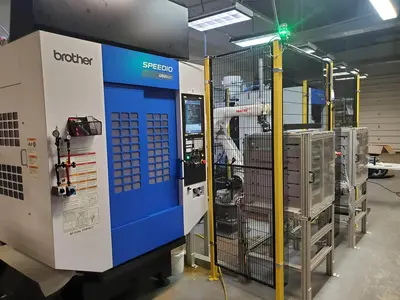

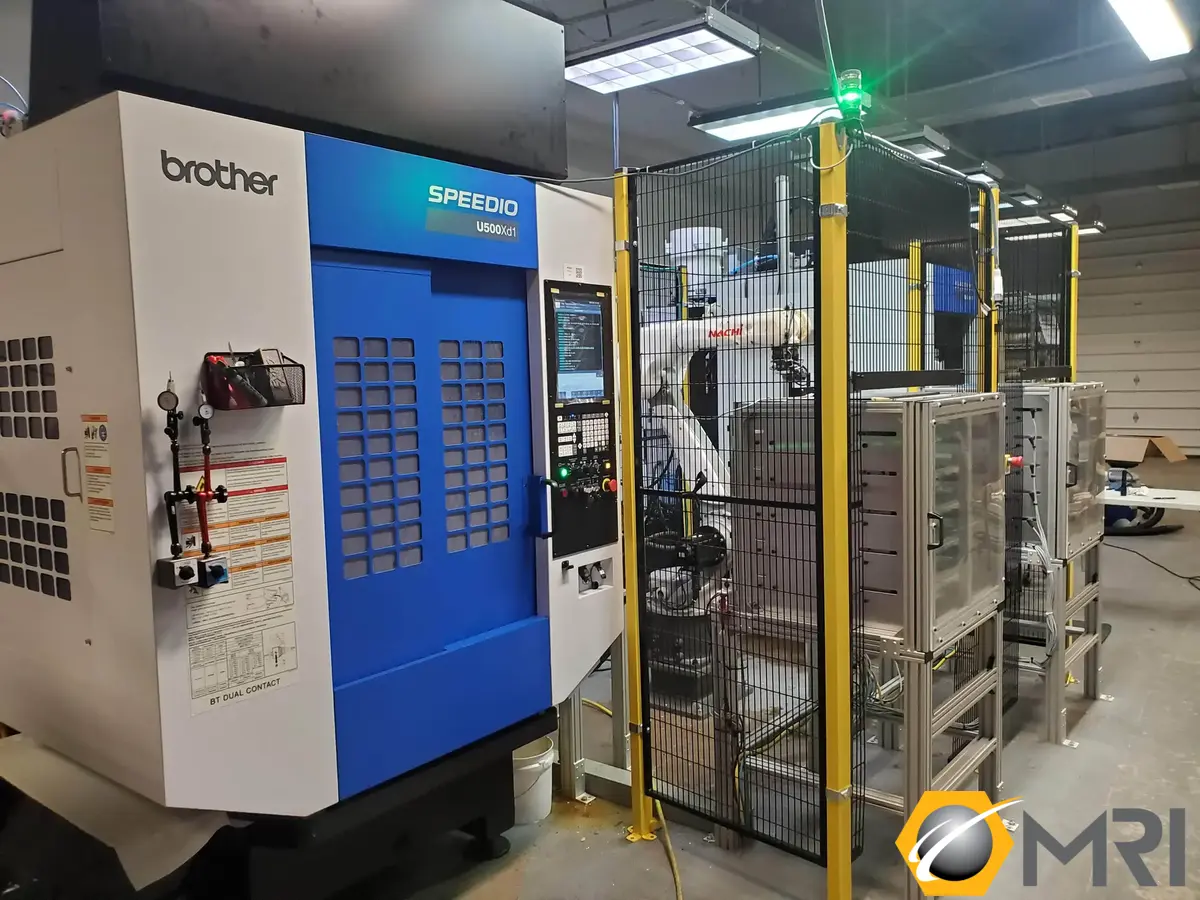

2023 Brother Speedio U500XD1 CNC Drilling and Tapping Centers | AB
ConditionUsed
1 available
Explore exceptional precision with the BROTHER SPEEDIO U500XD1, a 2023 model CNC drilling and tapping machine. Experience efficiency in your operations with this used, high-performance unit, designed for optimal productivity in industrial environments.
2 IDENTICAL MACHINES AVAILABLE WITH SAME SET UP / PRICE IS FOR EACH MACHINE SYSTEM OR MAKE OFFER FOR THE PACKAGE OF 2!!
Clean Sweep G2 Right Hand Discharge 500L
NOP WBF 1000 PSI Brother CTS Pump and Filter Kit with Bag Filter
Amano MJ-10 Mist Collector with Top Mount
Blum TC-52 Spindle Probe Kit for Brother for New Customer
Blum Z-Nano for U500
Pneumatic Panel Side Mounted
Pneumatic Circuit w/ One Dual Acting Valve, 4 Station Block
Auto Side Door(Automation loading)
Schunk items (jaws, adapter plate, Vero receiver)
Rotary Joint 6 Port
Machines are 4+1 (NOT simultaneous 5 axis).
VIDEOS AVAILABLE UPON REQUEST
PAID $240K EACH, NEW IN 2023
2 IDENTICAL MACHINES AVAILABLE WITH SAME SET UP
PRICE IS FOR EACH MACHINE SYSTEM OR MAKE OFFER FOR THE PACKAGE OF 2
Buyer Responsible for all Loading Fees.
Brother CNC-D00 Control with Built-In PLC
16,000 RPM BBT CTSI (Coolant Through Spindle Interface - No Pump)
7.4/5.1 HP Main Spindle Motor - IPM Motor Type
BIG-PLUS BT-30 Taper,
28 Tool Drum-Type ATC
Travel: 19.7¨ x 15.7¨ x 11.8¨
Tilting Rotary Table with 10.2 Diameter Work Area Size
Rapid Traverse: X,Y - 1,969 IPM / Z - 2,205 IPM
Air Assisted Tool Wash and Back Washing System
Automatic Grease Lubrication System
Chip Shower System
Complete Covers and Safety Door Interlock System
500MB Memory
